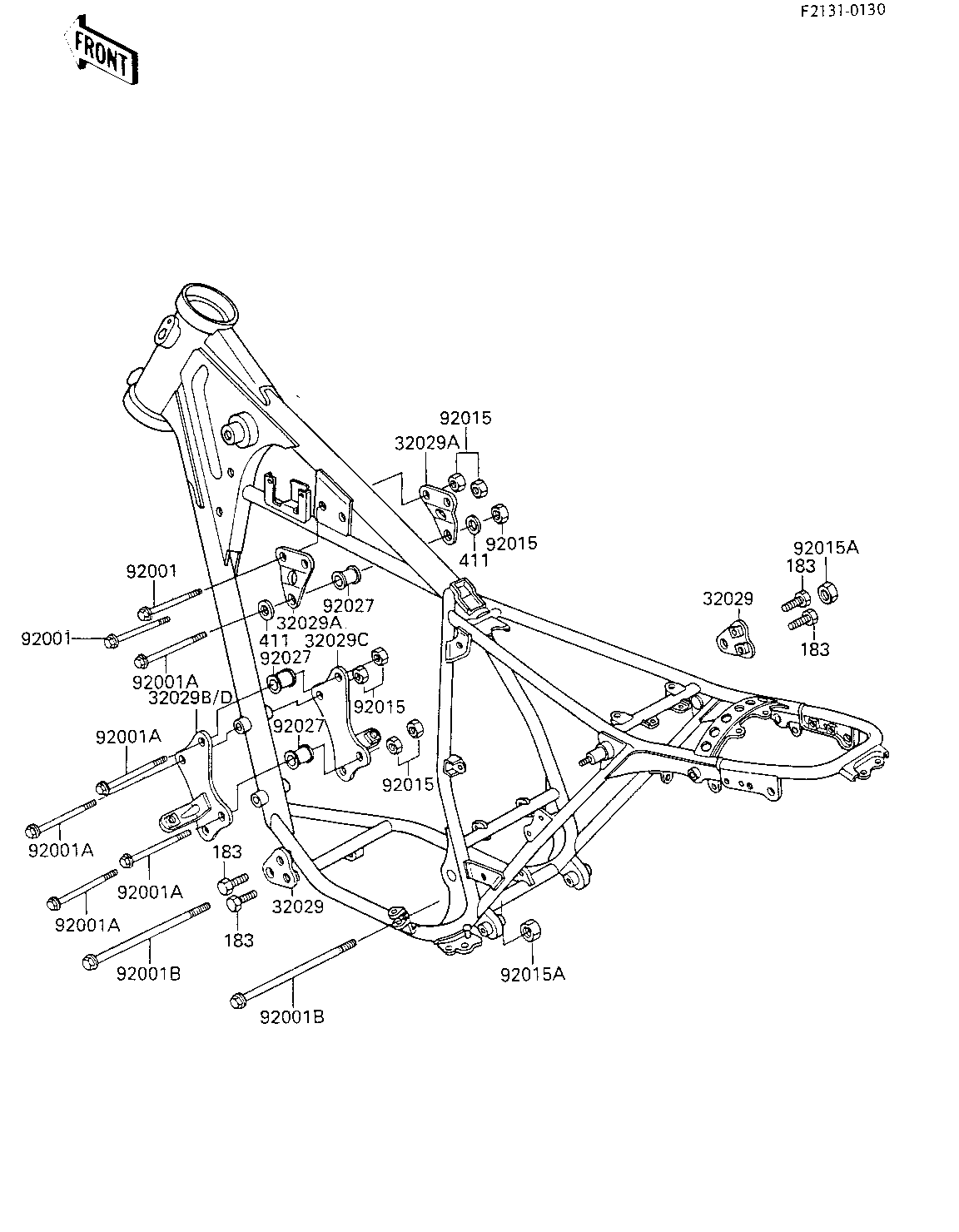

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ENGINE 32029 32029-1008 2
BRACKET,ENGINE,HEAD 32029A 32029-1083 2
BRACKET,ENGINE,FR,LH 32029B 32029-1158 1
BRACKET,ENGINE,R.H. 32029C 32029-1128 1
BOLT,FLANGED,8X45 92001 92001-1579 2
BOLT,FLANGED,8X85 92001A 92001-1596 5
BOLT, FLANGED, 10X110 92001B 92001-1602 2
NUT,LOCK,8MM 92015 92015-1124 7
NUT,10MM 92015A 92015-1429 2
COLLAR, 92027 92027-1180 3
BOLT-UPSET-WS-SMALL 183 183G0816 4
WASHER PLAIN 8MM 411 411B0800 2
