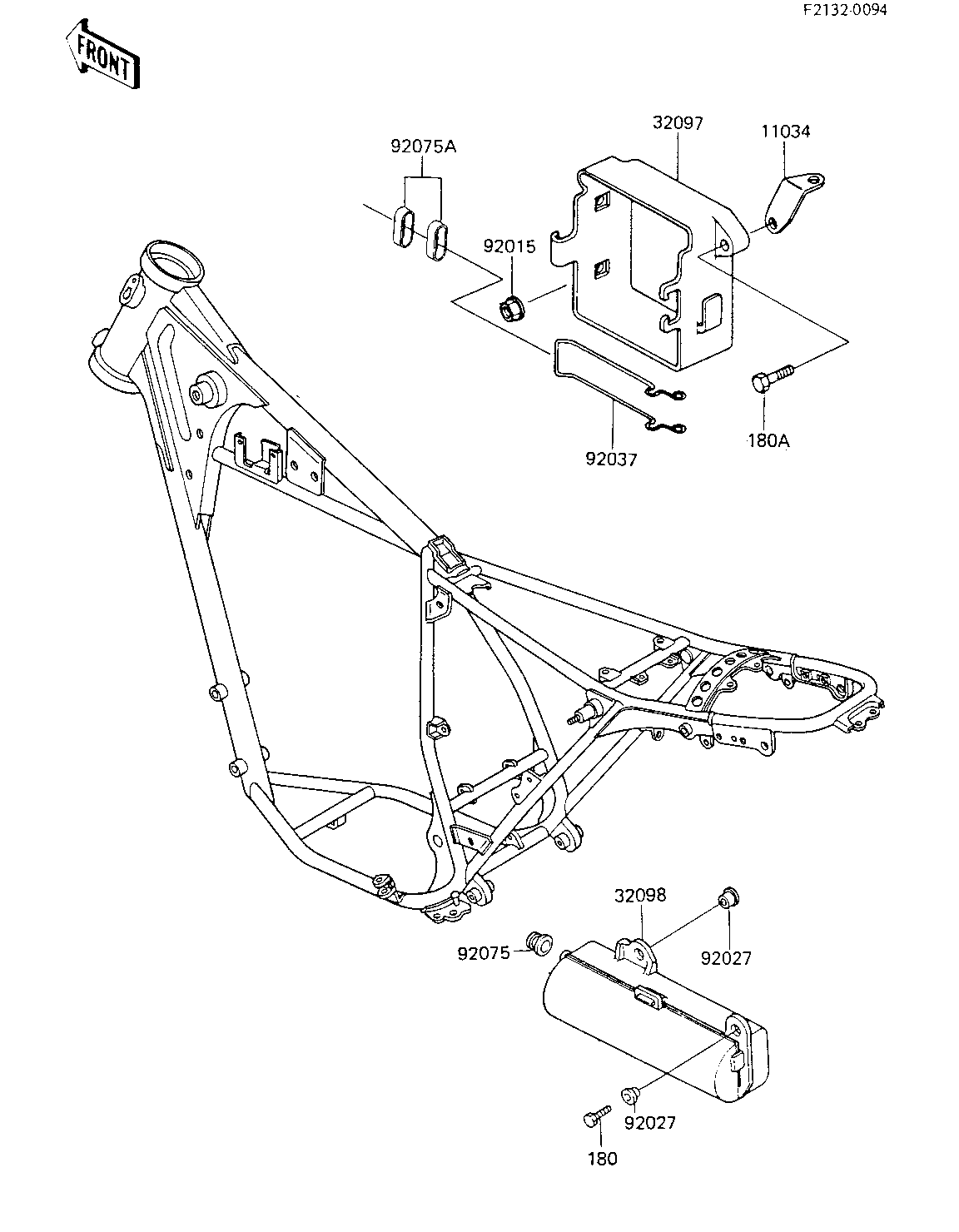

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET, 11034 11034-1731 1
CASE,BATTERY 32097 32097-1021 1
CASE-TOOL 32098 32098-1019 1
NUT-6MM 92015 92015-1078 1
COLLAR 92027 92027-252 2
CLAMP 92037 92037-1120 1
DAMPER 92075 92075-1057 1
DAMPER,BATTERY 92075A 92075-1264 2
BOLT 6X16 180 180B0616 1
BOLT-UPSET-WS,6X25 180A 180B0625 1
