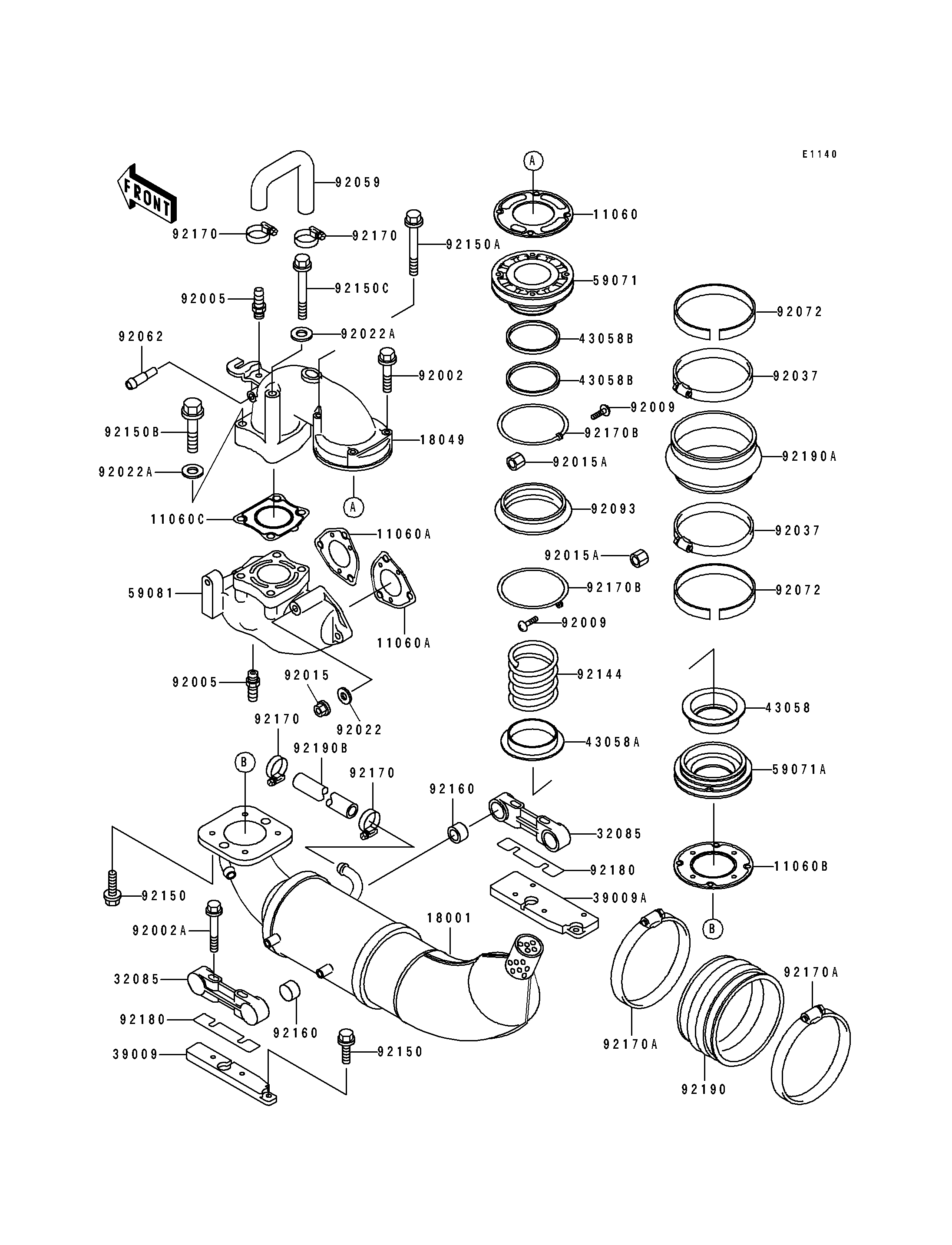

1994 Super Sport XI - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11060 11060-3718 1
GASKET,EXHAUST PIPE 11060A 11060-3721 2
GASKET,MUFFLER 11060B 11060-3724 1
GASKET,EXHAUST MANIFOLD 11060C 11060-3732 1
MUFFLER 18001 18001-3747 1
PIPE-EXHAUST 18049 18049-3739 1
STOPPER 32085 32085-3713 2
BLOCK-MOUNT,LH 39009 39009-3707 1
BLOCK-MOUNT,RH 39009A 39009-3708 1
RING 43058 43058-3705 1
RING 43058A 43058-3706 1
RING 43058B 43058-3707 2
JOINT,UPP 59071 59071-3728 1
JOINT,LWR 59071A 59071-3729 1
MANIFOLD-EXHAUST 59081 59081-3713 1
BOLT,6X35 92002 92002-3715 2
BOLT,6X45 92002A 92002-3717 4
FITTING,HOSE 92005 92005-3712 2
SCREW,3X14 92009 92009-3796 2
NUT,CAP,8MM 92015 92015-1371 6
NUT,3MM 92015A 92015-3825 2
WASHER,8.2X18X1.5 92022 92022-1964 6
WASHER,10.2X20X1.5 92022A 92022-3742 4
CLAMP 92037 92037-3706 2
TUBE,HEAD-EXHAUST 92059 92059-3872 1
NOZZLE 92062 92062-3705 1
BAND,ID=111 92072 92072-3740 2
SEAL 92093 92093-3738 1
SPRING 92144 92144-3739 1
BOLT,6X18 92150 92150-3729 8
BOLT,6X80 92150A 92150-3761 2
BOLT,10X50 92150B 92150-3819 2
BOLT,10X145 92150C 92150-3820 2
DAMPER 92160 92160-3740 4
CLAMP 92170 92170-3718 4
CLAMP 92170A 92170-3721 2
CLAMP 92170B 92170-3731 2
SHIM 92180 92180-3701 AR
TUBE 92190 92190-3709 1
TUBE,JOINT 92190A 92190-3712 1
TUBE,13X19X140 92191 92191-3717 1
