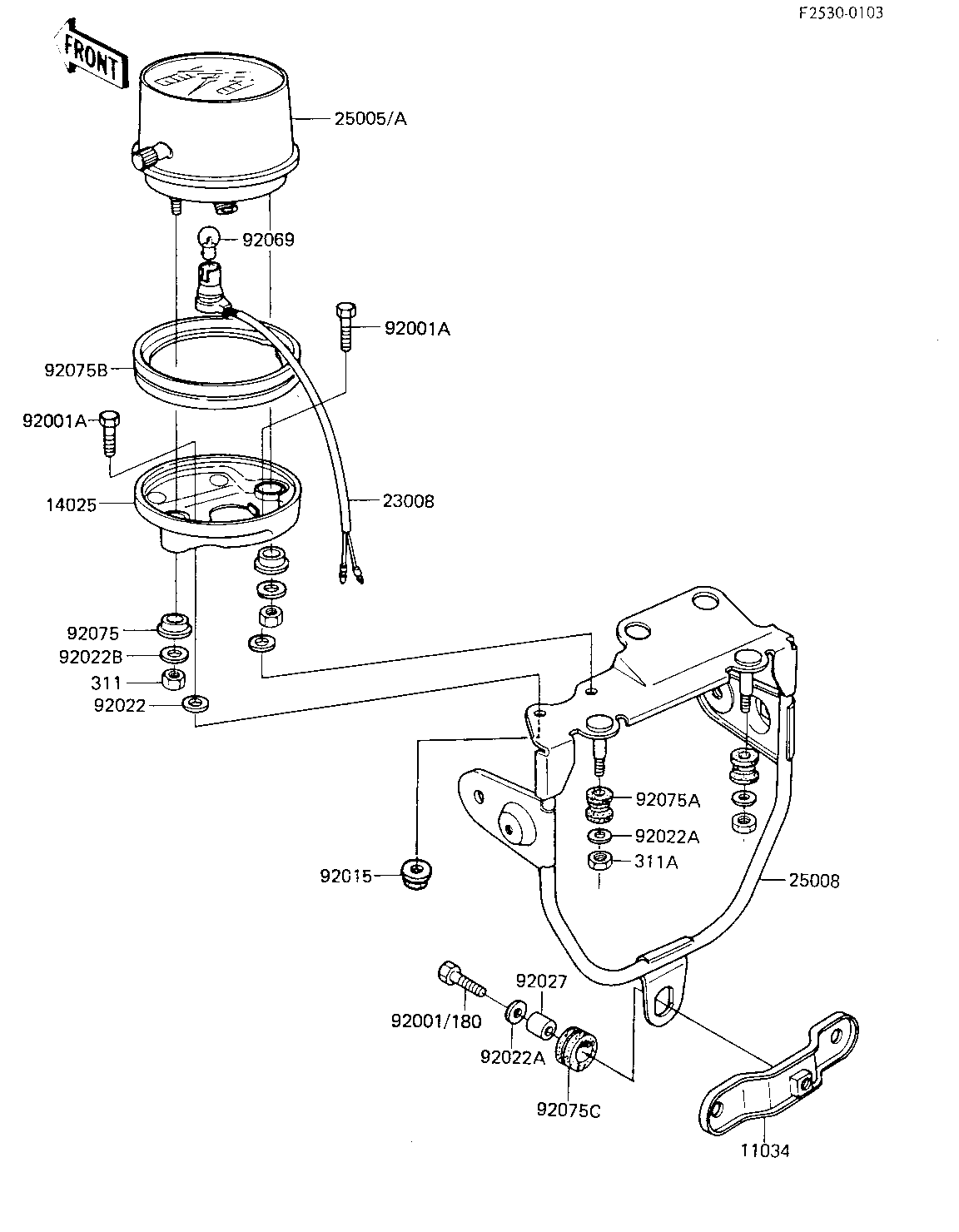

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET | 11034 | 11034-1442 | 1 | ||
COVER,METER | 14025 | 14025-1075 | 1 | ||
SOCKET ASSY,SPEEDOMET | 23008 | 25010-021 | 1 | ||
SPEEDOMETER,KM/H&MPH | 25005 | 25005-1049 | 1 | US | |
BRACKET,METER | 25008 | 25008-1009 | 1 | ||
BOLT,6X25 | 92001 | 92002-1137 | 1 | CN | |
BOLT,HEX HEAD,6X14 | 92001A | 92003-204 | 2 | ||
NUT-6MM | 92015 | 92015-1078 | 2 | ||
WASHER,6M/M,METER | 92022 | 92022-1039 | 2 | ||
WASHER 6.5X20X1.6T | 92022A | 92022-125 | 2 | CN | |
WASHER,PLAIN,6MM | 92022B | 92022-263 | 2 | ||
COLLAR,REAR FENDER | 92027 | 92027-162 | 1 | ||
BULB-6V 3W | 92069 | 92069-053 | 1 | ||
DAMPER RUBBER,MET FIT | 92075 | 25019-023 | 2 | ||
DAMPER RUBB SPEEDMETR | 92075A | 92075-024 | 2 | ||
DAMPER,METER | 92075B | 92075-1102 | 1 | ||
DAMPER RUBBER,RR FENR | 92075C | 92075-209 | 1 | ||
BOLT-UPSET-WS,6X25 | 180 | 180B0625 | 1 | US | |
NUT,5MM | 311 | 311B0500 | 2 | ||
NUT 6MM | 311A | 311B0600 | 2 |
