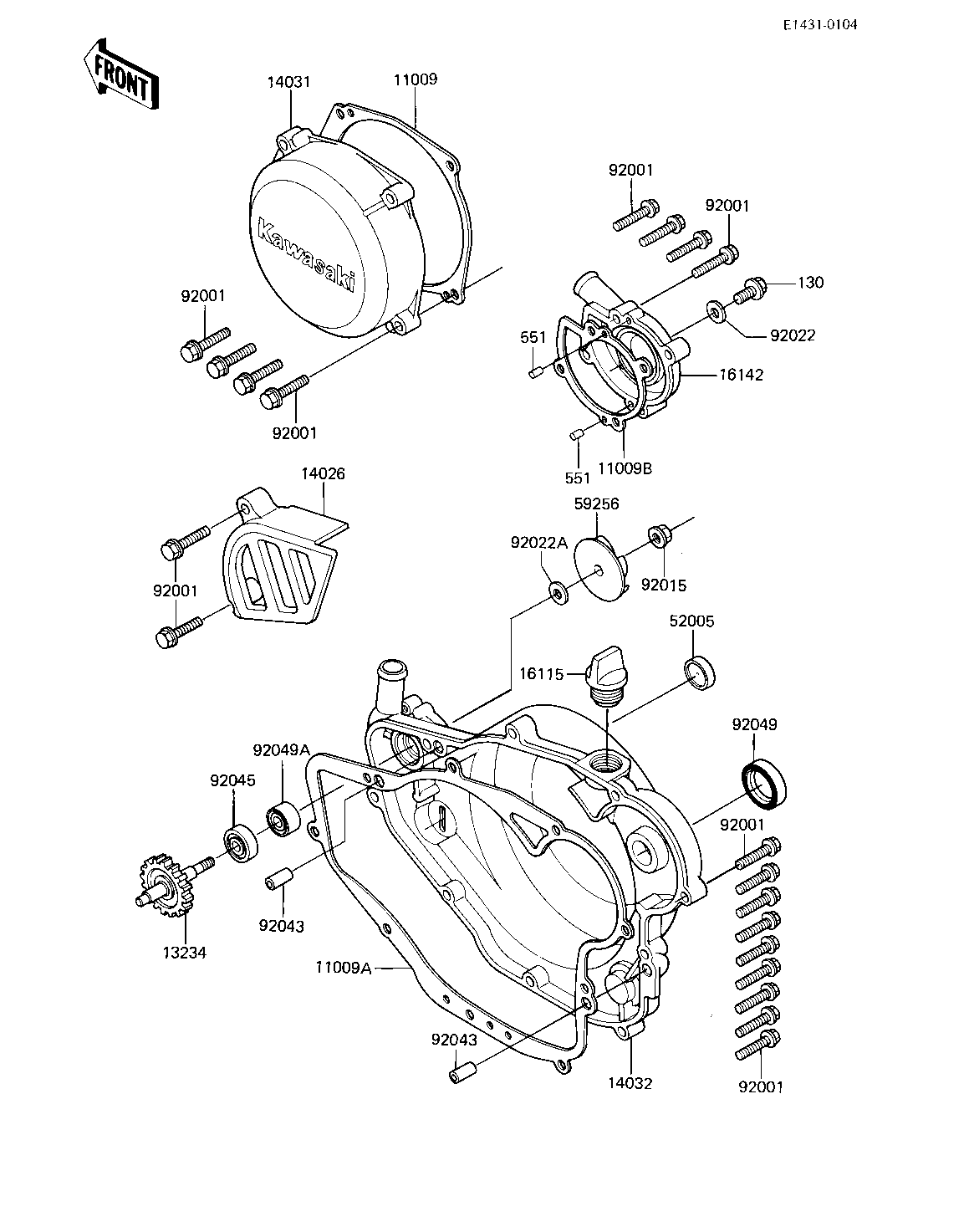

1983 KX250 - ENGINE COVERS/WATER PUMP ('83 KX250-C1)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,GENERATOR COVE | 11009 | 11009-1319 | 1 | ||
GASKET,CLUTCH COVER | 11009A | 11009-1320 | 1 | ||
GASKET,PUMP COVER | 11009B | 11009-1321 | 1 | ||
SHAFT-COMP,WATER PUMP | 13234 | 13234-1009 | 1 | ||
COVER-CHAIN | 14026 | 14026-1119 | 1 | ||
COVER-GENERATOR | 14031 | 14031-1104 | 1 | ||
COVER-CLUTCH | 14032 | 14032-1094 | 1 | ||
FILLER,OIL | 16115 | 16115-018 | 1 | ||
COVER-PUMP,WATER | 16142 | 16142-1008 | 1 | ||
GAUGE,OIL LEVEL | 52005 | 52005-1005 | 1 | ||
BOLT-FLANGED-SMALL | 92001 | 132G0625 | 19 | ||
NUT-6MM | 92015 | 92015-1078 | 1 | ||
WASHER | 92022 | 92022-1086 | 1 | ||
WASHER,6X14X2 | 92022A | 92022-1393 | 1 | ||
PIN-DOWEL | 92043 | 92042-007 | 2 | ||
BEARING-BALL | 92045 | 92045-1212 | 1 | ||
OIL SEAL,SB18307 | 92049 | 92049-013 | 1 | ||
SEAL-OIL,MHSD8X18X10J | 92049A | 92049-1366 | 1 | ||
BOLT-FLANGED | 130 | 130B0810 | 1 | ||
PIN,DOWEL,4X8 | 551 | 551A0408 | 2 |
