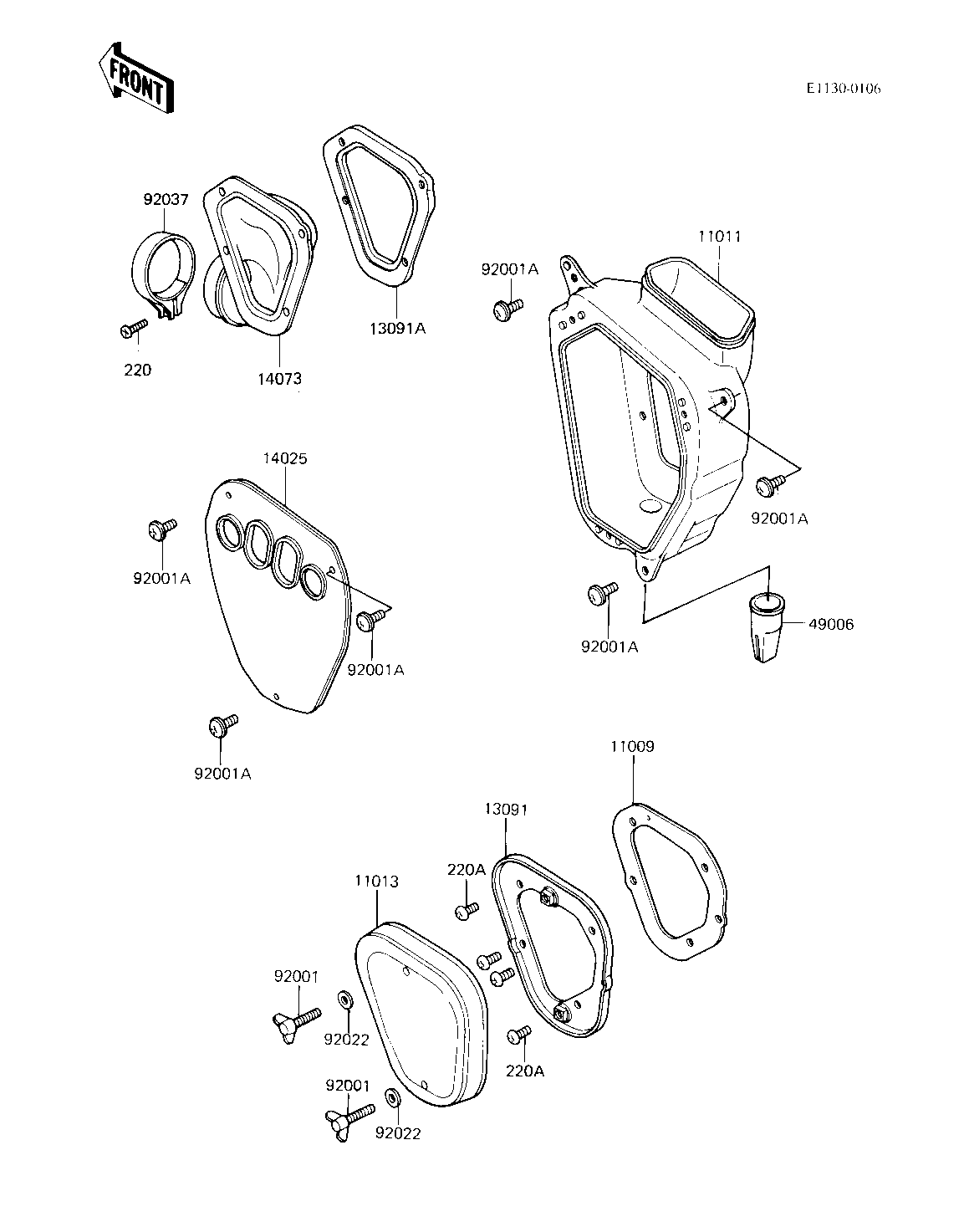

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,AIR FILTER CAS 11009 11009-1317 1
CASE-AIR FILTER 11011 11011-1115 1
ELEMENT-AIR FILTER 11013 11013-1063 1
HOLDER,AIR FILTER 13091 13091-1156 1
HOLDER,DUCT 13091A 13091-1167 1
COVER,AIR FILTER CASE 14025 14025-1386 1
DUCT,AIR FILTER 14073 14073-1092 1
BOOT 49006 49006-1012 1
BOLT,WING,6X40 92001 92001-1685 2
SCREW,6X14 92001A 92009-1287 6
WASHER 6.5X20X1.6T 92022 92022-125 2
CLAMP,BOOT FITTING 92037 92037-1112 1
SCREW-PAN-CROS 220 220B0430 1
SCREW PAN HEAD 5X12 220A 220B0512 4
