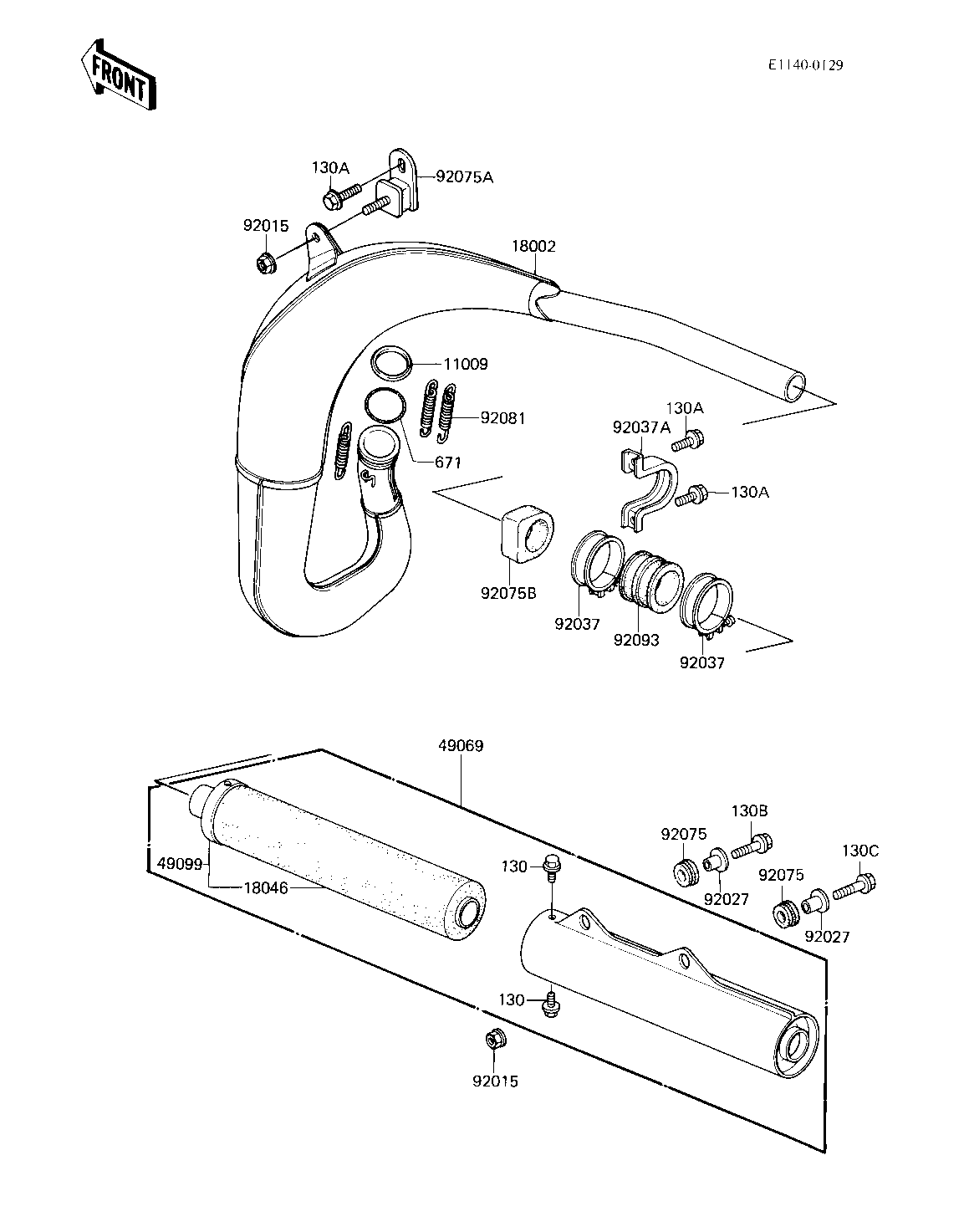

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,EXHAUST PIPE | 11009 | 11009-1253 | 1 | ||
BODY-COMP-MUFFLER | 18002 | 18002-1294 | 1 | ||
WOOL,MUFFLER BAFFLE P | 18046 | 18046-1075 | 1 | ||
MUFFLER-ASSY | 49069 | 49069-1006 | 1 | ||
BAFFLE-PIPE MUFFLER | 49099 | 49099-1110 | 1 | ||
NUT-6MM | 92015 | 92015-1078 | 2 | ||
COLLAR,SEAT | 92027 | 92027-1062 | 2 | ||
CLAMP,CARBURETOR,40MM | 92037 | 92037-1129 | 2 | ||
CLAMP,MUFFLER | 92037A | 92037-1372 | 1 | ||
DAMPER, HEAD LMP FITT | 92075 | 92075-1123 | 2 | ||
DAMPER,MUFFLER | 92075A | 92075-1891 | 1 | ||
DAMPER,MUFFLER | 92075B | 92075-1428 | 1 | ||
SPRING,MUFFLER CONECT | 92081 | 92081-1526 | 3 | ||
SEAL,MUFFLER | 92093 | 92093-1085 | 1 | ||
BOLT-FLANGED | 130 | 130G0508 | 2 | ||
BOLT,FLANGED,6X12 | 130A | 130G0612 | 3 | ||
BOLT,FLANGED,6X20 | 130B | 130G0620 | 1 | ||
BOLT,FLANGED,6X25 | 130C | 130G0625 | 1 | ||
O RING,50MM | 671 | 671E2550 | 1 |
GASKET,EXHAUST PIPE | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY-COMP-MUFFLER | |
REF # | 18002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WOOL,MUFFLER BAFFLE P | |
REF # | 18046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MUFFLER-ASSY | |
REF # | 49069 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAFFLE-PIPE MUFFLER | |
REF # | 49099 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT-6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,SEAT | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,CARBURETOR,40MM | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,MUFFLER | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER, HEAD LMP FITT | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,MUFFLER | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,MUFFLER | |
REF # | 92075B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,MUFFLER CONECT | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SEAL,MUFFLER | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X12 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X20 | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X25 | |
REF # | 130C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,50MM | |
REF # | 671 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
