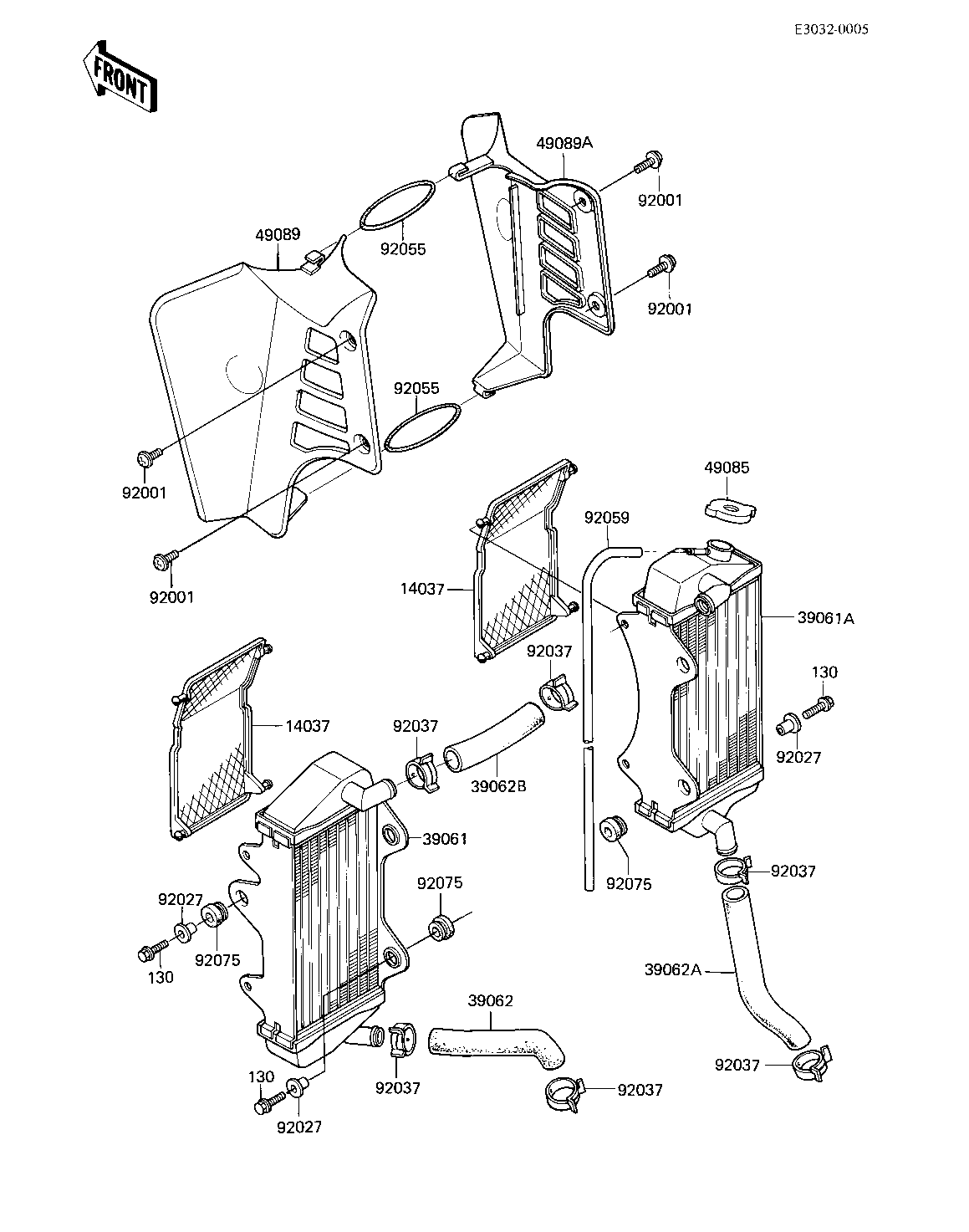

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREEN,RADIATOR 14037 14037-1006 2
RADIATOR,LH 39061 39061-1014 1
RADIATOR,RH 39061A 39061-1015 1
HOSE-COOLING,ACCUMULA 39062 39062-1011 1
HOSE-COOLING,RADIATOR 39062A 39062-1012 1
HOSE-COOLING,RADIATOR 39062B 39062-1017 1
CAP-ASSY-PRESSURE 49085 49085-1003 1
SHROUD-ENGINE,LH,L.GR 49089 49089-1004-6W 1
SHROUD-ENGINE,RH,L.GR 49089A 49089-1005-6W 1
SCREW,6X10 92001 92009-1286 4
COLLAR,RADIATOR GUARD 92027 92027-1183 6
CLAMP,COOLING HOSE 92037 92037-1364 6
O RING 92055 92055-1001 2
TUBE,5X9X800 92059 92059-1383 1
DAMPER,RADIATOR 92075 92075-1352 6
BOLT,FLANGED,6X20 130 130G0620 6
