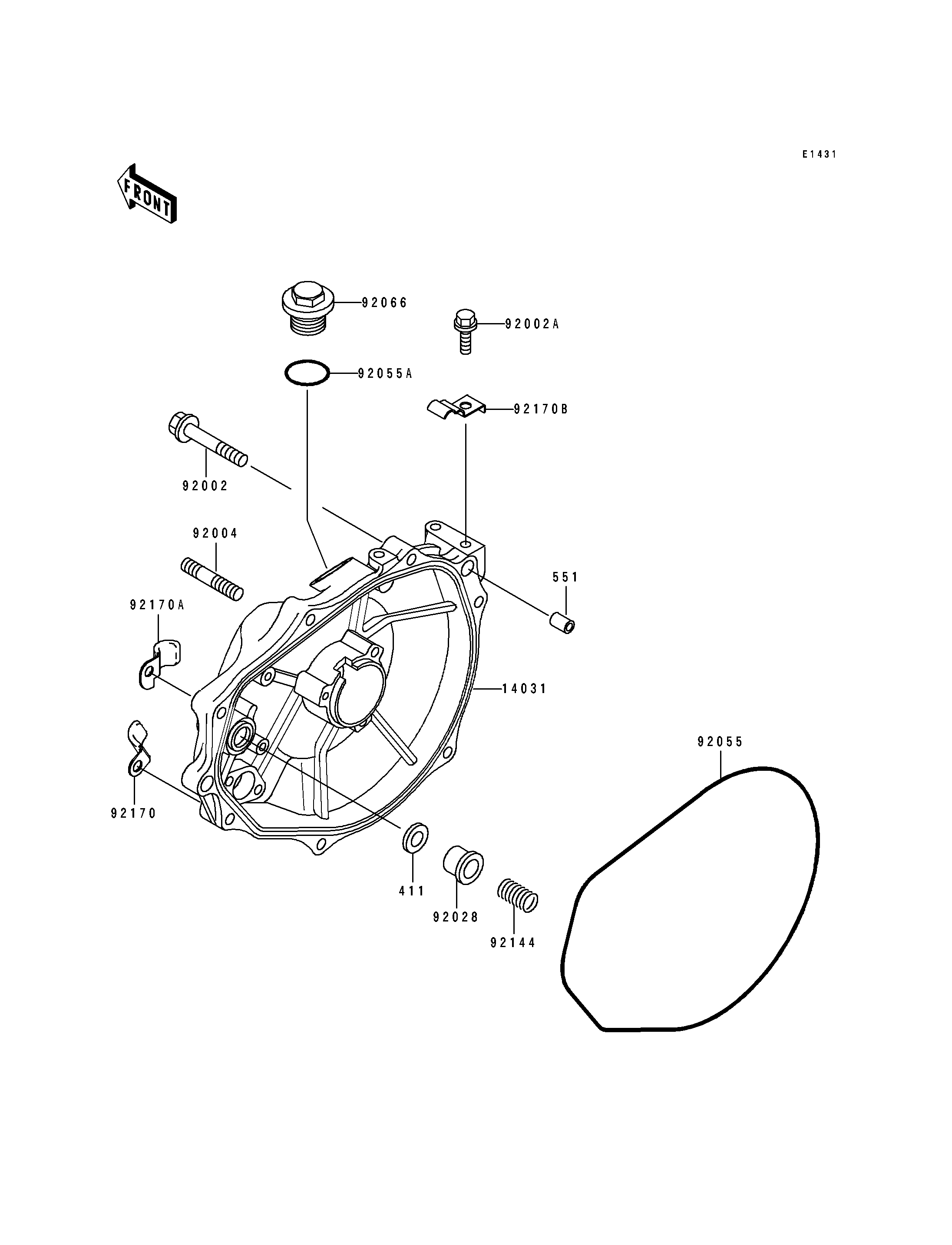

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-GENERATOR 14031 14031-3717 1
BOLT,6X30 92002 92002-3726 7
BOLT,6X12 92002A 92002-3763 1
STUD 92004 92004-3710 2
BUSHING 92028 92028-3718 1
RING-O,GENERATOR COVER 92055 92055-3712 1
RING-O 92055A 92055-515 1
PLUG 92066 92066-3739 1
SPRING 92144 92144-3728 1
CLAMP 92170 92170-3735 1
CLAMP 92170A 92170-3736 1
CLAMP 92170B 92170-3738 1
WASHER-PLAIN,5MM 411 411S0500 1
PIN-DOWEL 551 551R0812 2
