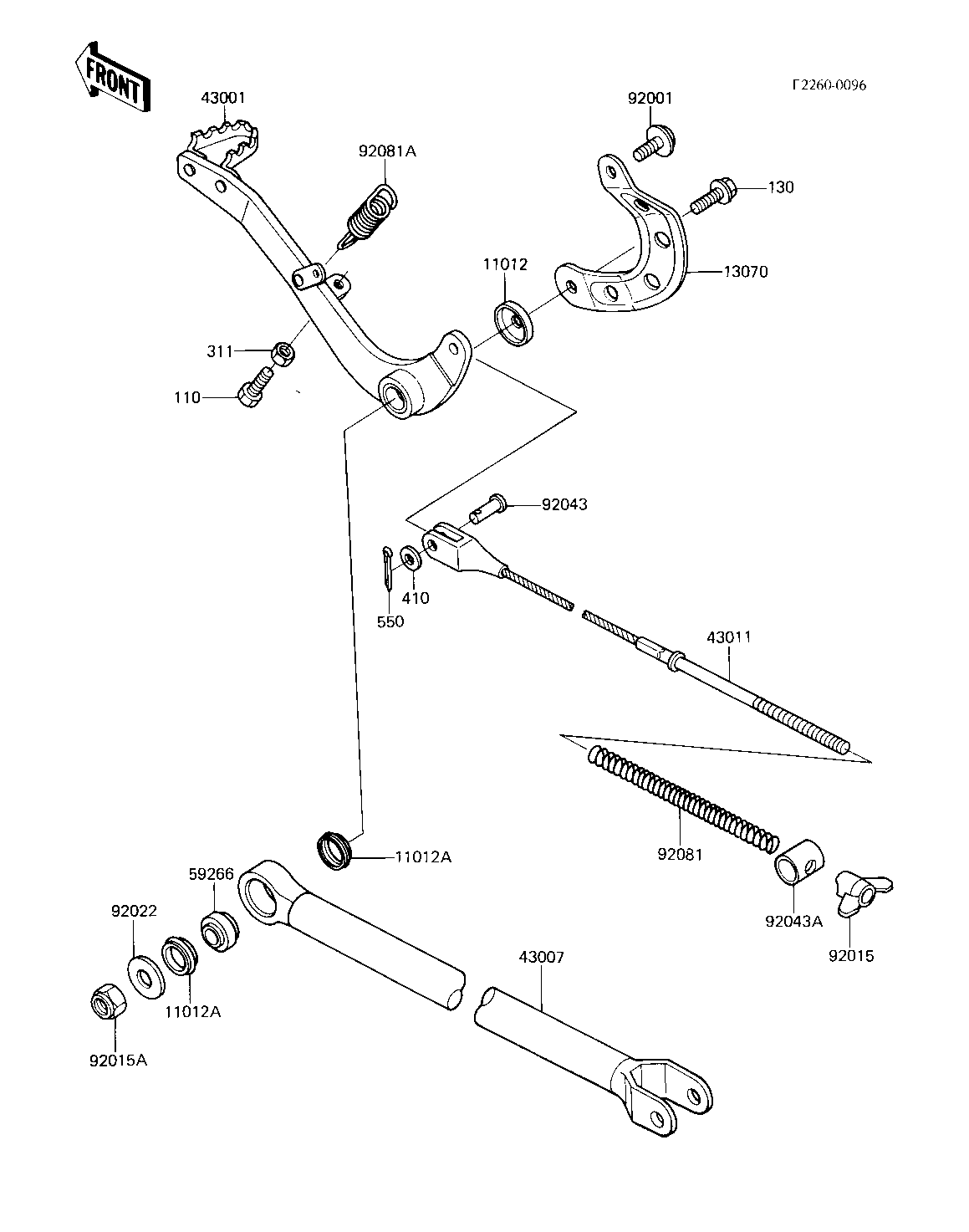

1983 KX250 - BRAKE PEDAL/TORQUE LINK ('83 KX250-C1)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1204 1
CAP,TORQUE ROD 11012A 11012-1260 2
GUIDE,BRAKE ROD 13070 13070-1072 1
LEVER-BRAKE,PEDAL 43001 43001-1103 1
ROD-TORQUE 43007 43007-1040 1
ROD-BRAKE 43011 43011-1058 1
JOINT-BALL,TORQUE ROD 59266 59266-1010 1
SCREW,6X10 92001 92009-1286 1
NUT,WING,6M/M 92015 92015-4004 1
NUT,LOCK,10MM 92015A 92019-021 1
WASHER,PLAIN,10.5X24 92022 92022-1137 1
PIN-BRAKE ROD FITTING 92043 92043-064 1
PIN,BRAKE 92043A 92043-1024 1
SPRING,BRAKE ROD 92081 43012-001 1
SPRING RETURN 92081A 92081-1059 1
BOLT-UPSET,6X20 110 112G0620 1
BOLT,FLANGED,6X12 130 130G0612 1
NUT 6MM 311 311B0600 1
WASHER PLAIN 6MM 410 410B0600 1
PIN COTTER 2.0X15 550 550D2015 1
