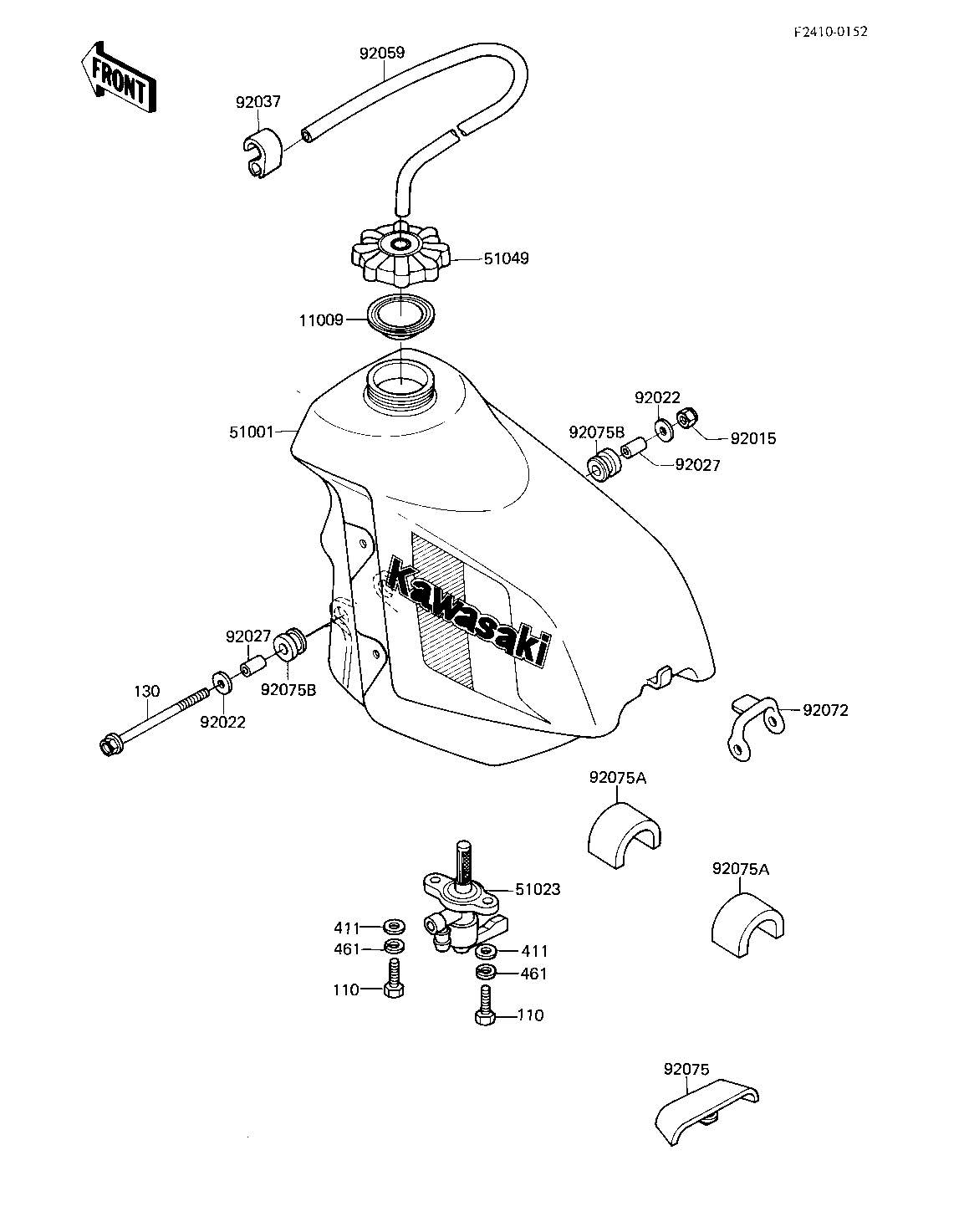

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TANK 11009 11009-1452 1
TANK-COMP-FUEL,L.GREE 51001 51001-5297-6W 1
TAP-ASSY-FUEL 51023 51023-1115 1
CAP-TANK,FUEL 51049 51049-1006 1
NUT 92015 92019-008 1
WASHER 6.5X20X1.6T 92022 92022-125 2
COLLAR 6.8X10X14.5 92027 92027-156 2
CLAMP,TUBE 92037 92037-1377 1
TUBE,5X9X250 92059 92059-1258 1
BAND,SEAT 92072 92072-1056 1
DAMPER 92075 92075-1355 1
DAMPER 92075A 92075-1382 2
DAMPER,FUEL TANK 92075B 92075-1424 2
BOLT-UPSET,6X16 110 112G0616 2
BOLT-FLANGED,6X95 130 130G0695 1
WASHER PLAIN 6MM 411 411B0600 2
WASHER SPRING 6MM 461 461F0600 2
