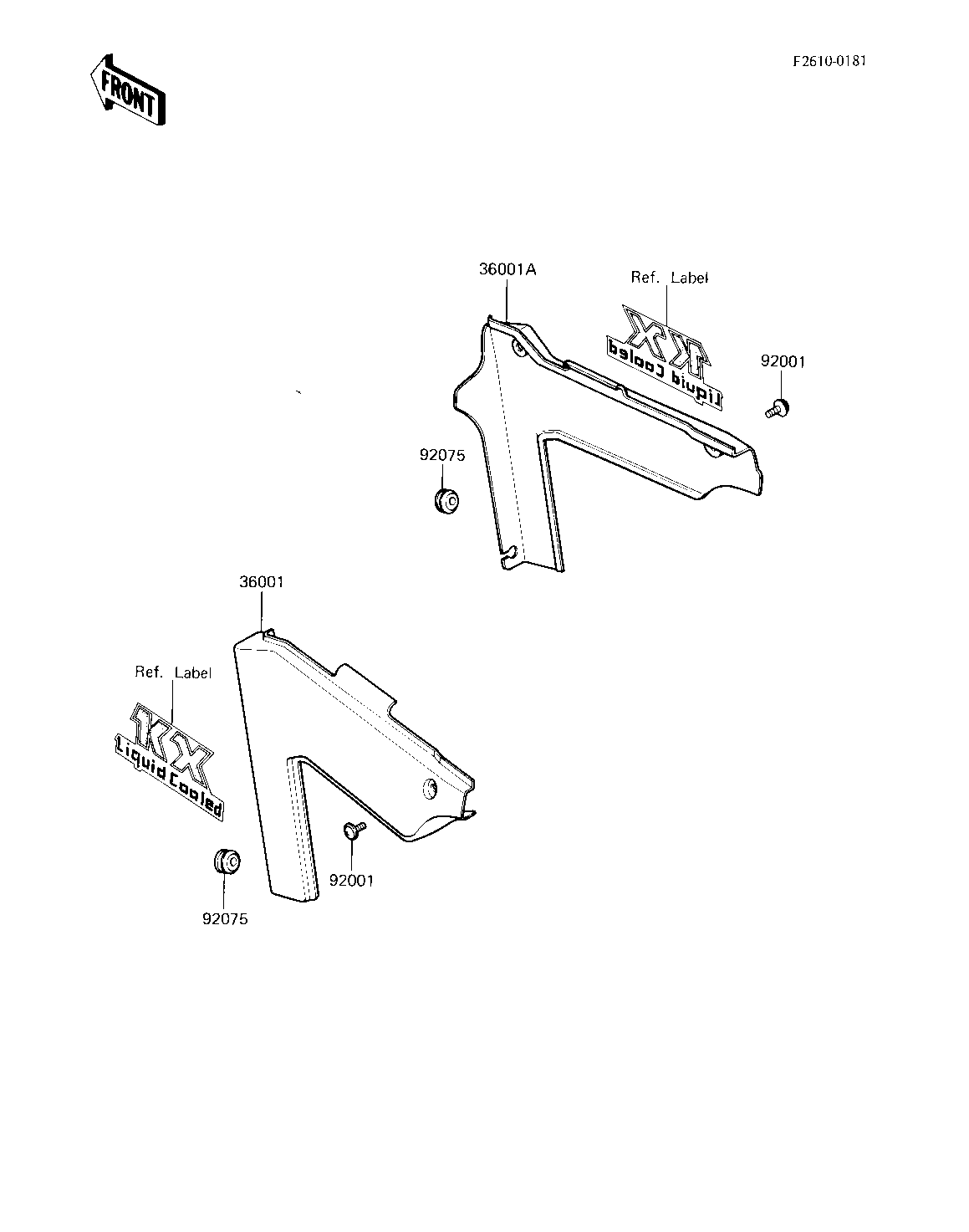

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,L.H L.GREE 36001 36001-1146-6W 1
COVER-SIDE,R.H L.GREE 36001A 36001-1147-6W 1
SCREW,6X10 92001 92009-1286 4
DAMPER,SIDE COVER 92075 92075-1067 2
