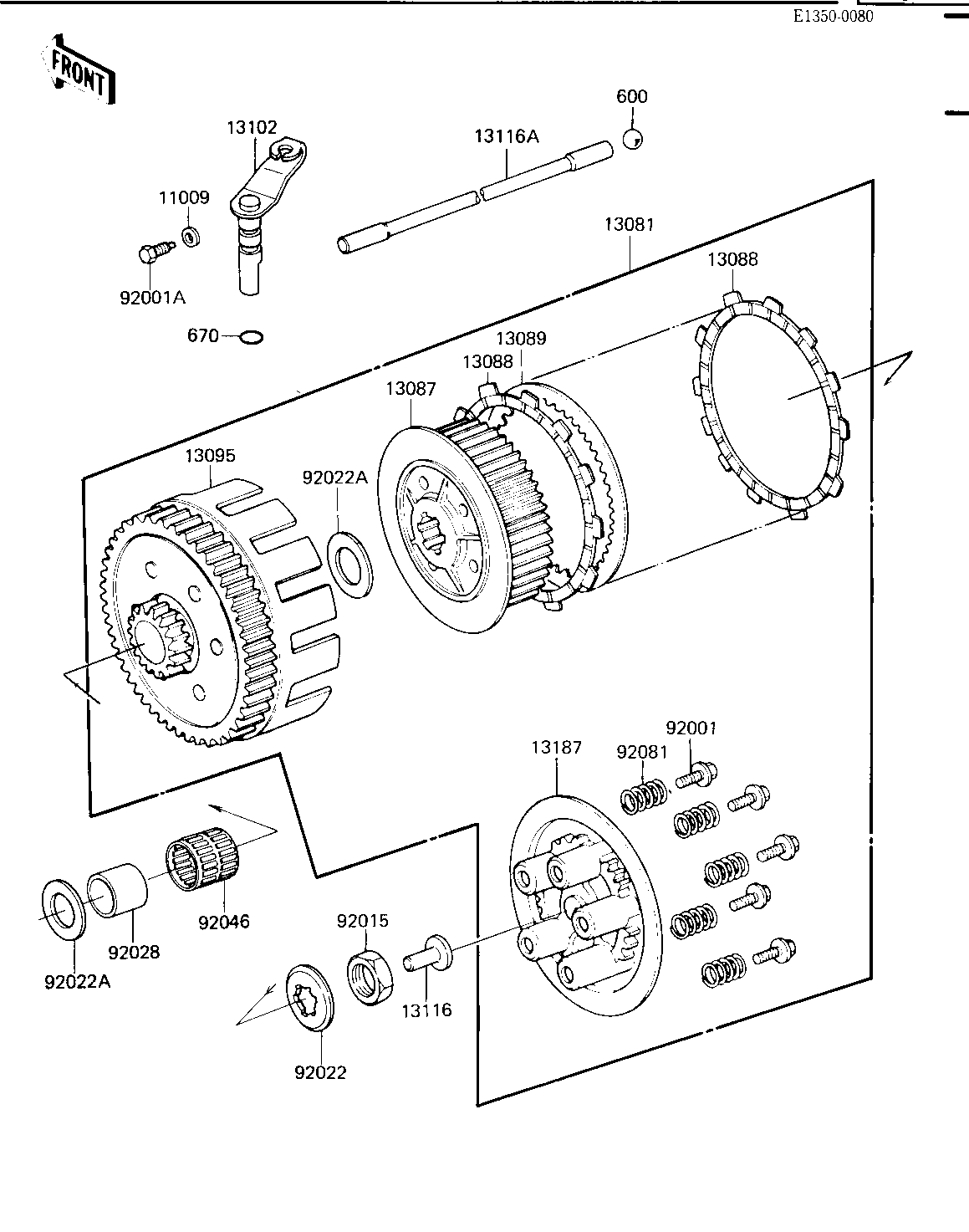

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,R.H ENG COVER | 11009 | 92065-092 | 1 | ||
CLUTCH-ASSY | 13081 | 13081-1168 | 1 | ||
HUB,CLUTCH | 13087 | 13087-044 | 1 | ||
PLATE-FRICTION | 13088 | 13088-1065 | 7 | ||
PLATE-CLUTCH | 13089 | 13089-1010 | 6 | ||
HOUSING-COMP-CLUTCH | 13095 | 13095-1050 | 1 | ||
RELEASE-COMP-CLUTCH | 13102 | 13102-1077 | 1 | ||
ROD-PUSH,CLUTCH | 13116 | 13116-1010 | 1 | ||
ROD-PUSH,CLUTCH,L=158 | 13116A | 13116-1107 | 1 | ||
PLATE-CLUTCH OPERATIN | 13187 | 13187-1011 | 1 | ||
BOLT,CLUTCH SPR FITT | 92001 | 92001-1066 | 5 | ||
BOLT,CLUTCH RELEASE | 92001A | 92003-130 | 1 | ||
NUT 20MM | 92015 | 92016-028 | 1 | ||
WASHER,LOCK | 92022 | 92022-1047 | 1 | ||
WASHER,CLUTCH THRUST | 92022A | 92022-282 | 2 | ||
BUSHING,CLUTCH | 92028 | 92028-1076 | 1 | ||
BEARING-NEEDLE,WR25/2 | 92046 | 92046-1049 | 1 | ||
SPRING,CLUTCH | 92081 | 92081-1151 | 5 | ||
BALL STEEL 3/8' | 600 | 600A1200 | 1 | ||
"0" RING, 10MM | 670 | 670B2010 | 1 |
GASKET,R.H ENG COVER | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLUTCH-ASSY | |
REF # | 13081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HUB,CLUTCH | |
REF # | 13087 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-FRICTION | |
REF # | 13088 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
PLATE-CLUTCH | |
REF # | 13089 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
HOUSING-COMP-CLUTCH | |
REF # | 13095 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELEASE-COMP-CLUTCH | |
REF # | 13102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-PUSH,CLUTCH | |
REF # | 13116 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-PUSH,CLUTCH,L=158 | |
REF # | 13116A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-CLUTCH OPERATIN | |
REF # | 13187 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,CLUTCH SPR FITT | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BOLT,CLUTCH RELEASE | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT 20MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,LOCK | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,CLUTCH THRUST | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING,CLUTCH | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,WR25/2 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CLUTCH | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BALL STEEL 3/8' | |
REF # | 600 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING, 10MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
