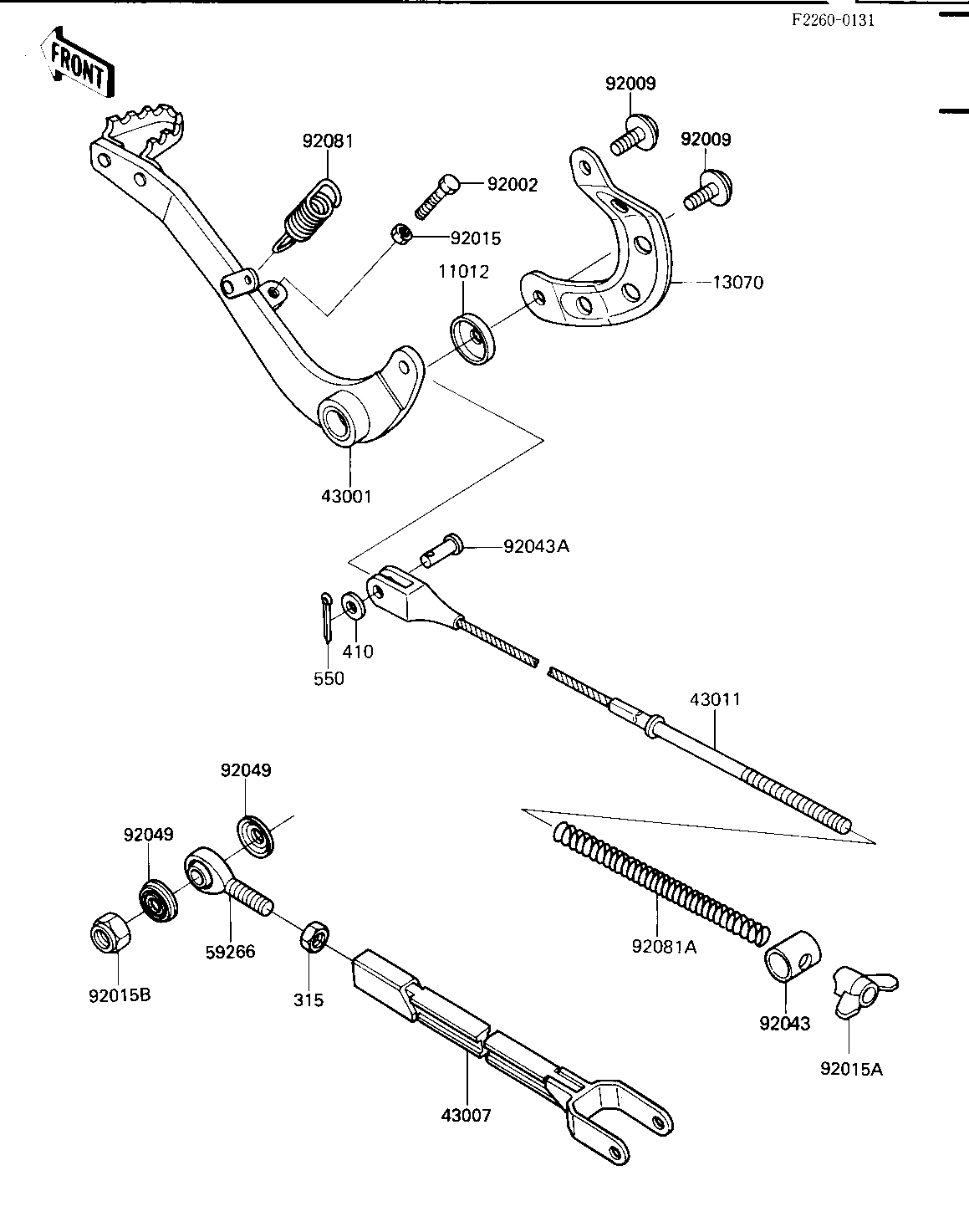

1984 KX250 - BRAKE PEDAL/TORQUE LINK ('84 KX250-C2)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1204 1
GUIDE,BRAKE ROD 13070 13070-1072 1
LEVER-BRAKE,PEDAL 43001 43001-1159 1
ROD-TORQUE 43007 43007-1101 1
ROD-BRAKE 43011 43011-1107 1
JOINT,BALL 59266 59266-1005 1
BOLT,6X20 92002 92002-1373 1
SCREW,6X10 92009 92009-1286 2
NUT,6MM 92015 92015-1391 1
NUT,WING,6M/M 92015A 92015-4004 1
NUT,LOCK,10MM 92015B 92019-021 1
PIN,BRAKE 92043 92043-1024 1
PIN RR BRAKE CABLE 92043A 92043-107 1
OIL SEAL,BALL JOINT 92049 92049-1072 2
SPRING RETURN 92081 92081-1059 1
SPRING,BAAKE ROD 92081A 92081-1688 1
NUT 10MM 315 315B1000 1
WASHER PLAIN 6MM 410 410B0600 1
PIN COTTER 2.0X15 550 550D2015 1
