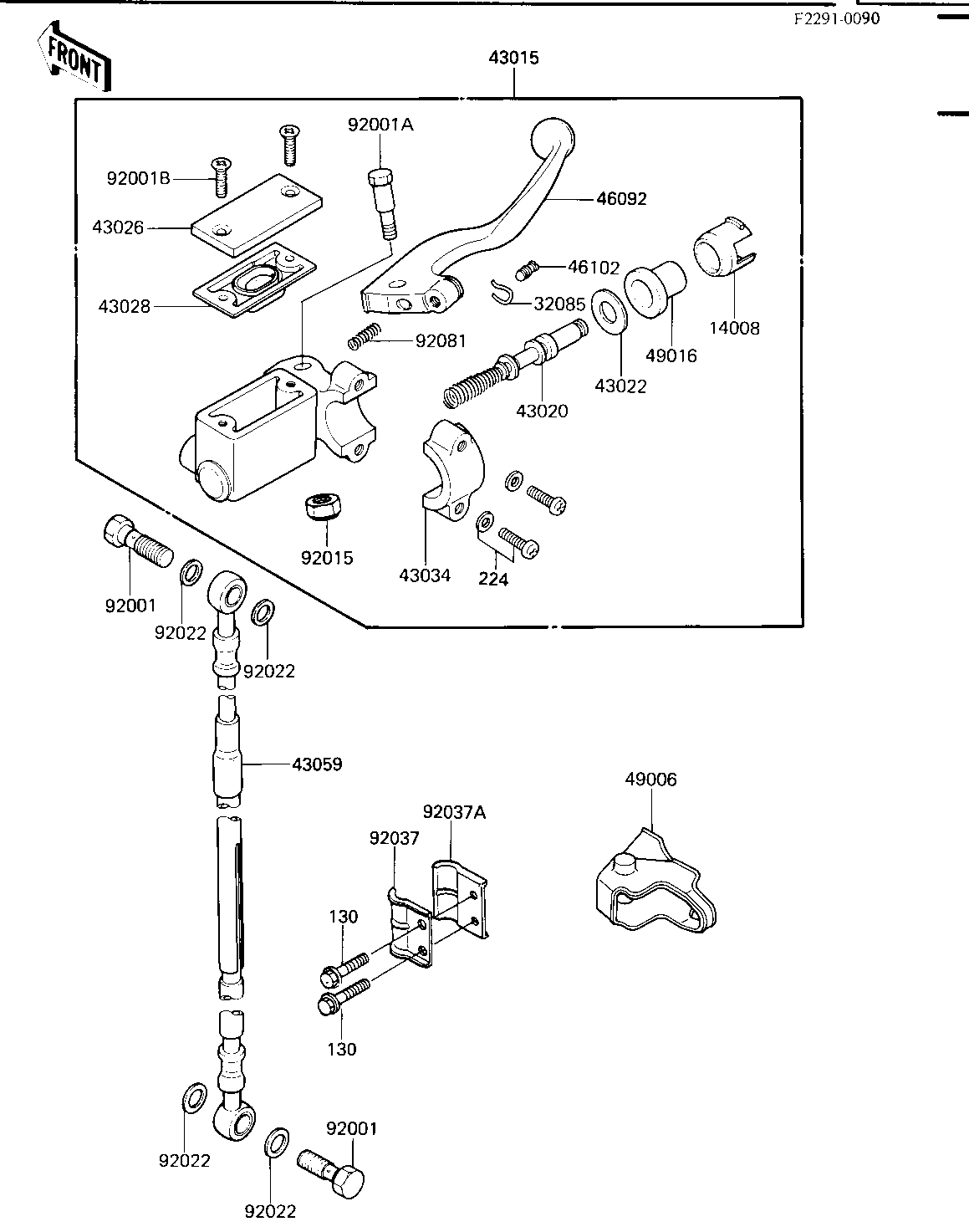

1984 KX250 - FRONT MASTER CYLINDER ('84 KX250-C2)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LINER | 14008 | 14008-1030 | 1 | ||
STOPPER,BRAKE LEVER R | 32085 | 32085-1087 | 1 | ||
CYLINDER-ASSY-MASTER | 43015 | 43015-1281 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1021 | 1 | ||
STOPPER-BRAKE | 43022 | 43022-1008 | 1 | ||
CAP-BRAKE | 43026 | 43026-1019 | 1 | ||
DIAPHRAGM | 43028 | 43028-1030 | 1 | ||
HOLDER-BRAKE | 43034 | 43034-1012 | 1 | ||
HOSE-BRAKE | 43059 | 43059-1258 | 1 | ||
ROD,BRAKE LEVER ADJUS | 46102 | 46102-1120 | 1 | ||
BOOT,BRAKE LEVER | 49006 | 49006-1090 | 1 | ||
COVER-SEAL | 49016 | 49016-1035 | 1 | ||
BOLT,OIL,L=23 | 92001 | 92002-1888 | 2 | ||
BOLT,6X37.3,BLACK | 92001A | 92001-1512 | 1 | ||
SCREW-COUNTERSUNK | 92001B | 92001-1532 | 2 | ||
NUT,LOCK,6MM,BLACK | 92015 | 92015-1191 | 1 | ||
WASHER-OIL BOLT | 92022 | 43067-001 | 4 | ||
CLAMP,BRAKE HOSE,OUTS | 92037 | 92037-1362 | 1 | ||
CLAMP,BRAKE HOSE,INSI | 92037A | 92037-1363 | 1 | ||
SPRING,BRAKE LEVER | 92081 | 92081-1428 | 1 | ||
BOLT,FLANGED,6X14 | 130 | 130G0614 | 2 | ||
SCREW-PAN-WP-CROS | 224 | 224B0625 | 2 |
LINER | |
REF # | 14008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER,BRAKE LEVER R | |
REF # | 32085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-ASSY-MASTER | |
REF # | 43015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-COMP-BRAKE | |
REF # | 43020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER-BRAKE | |
REF # | 43022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BRAKE | |
REF # | 43026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DIAPHRAGM | |
REF # | 43028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-BRAKE | |
REF # | 43034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-BRAKE | |
REF # | 43059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD,BRAKE LEVER ADJUS | |
REF # | 46102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,BRAKE LEVER | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-SEAL | |
REF # | 49016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,OIL,L=23 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X37.3,BLACK | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-COUNTERSUNK | |
REF # | 92001B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,6MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-OIL BOLT | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,BRAKE HOSE,OUTS | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,BRAKE HOSE,INSI | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,BRAKE LEVER | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X14 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-WP-CROS | |
REF # | 224 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
