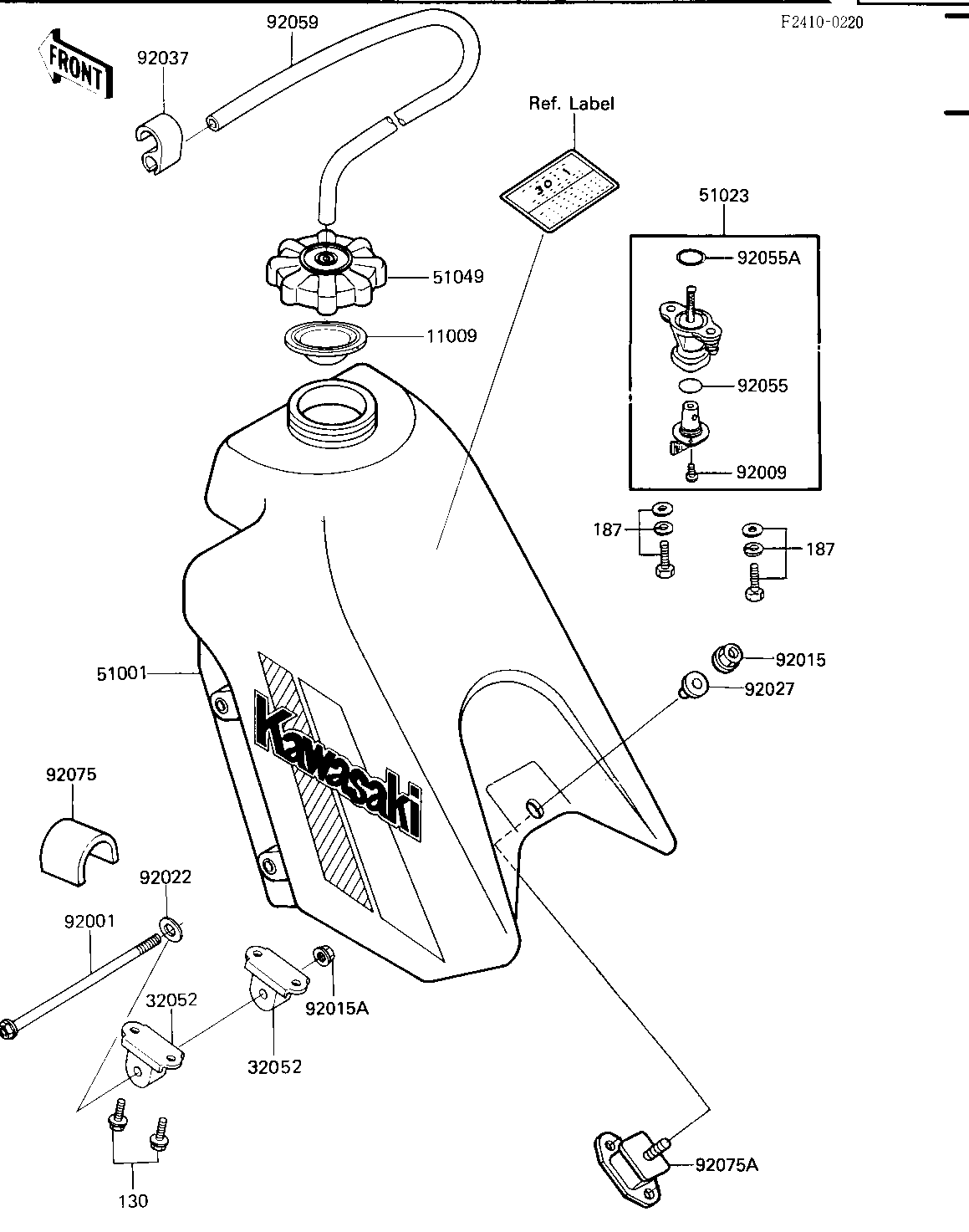

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TANK 11009 11009-1452 2
BRACKET-TANK 32052 32052-1104 2
TANK-COMP-FUEL,L.GREE 51001 51001-5413-6W 1
TAP-ASSY-FUEL 51023 51023-1115 1
CAP-TANK,FUEL 51049 51049-1006 1
BOLT,FLANGED,6X120 92001 92001-1907 1
SCREW PAN HEAD 3X8 92009 220E0308 2
NUT-8MM 92015 92015-1143 1
NUT-6MM 92015A 92015-1078 1
WASHER,9X24X3.2 92022 92022-1295 1
COLLAR,FUEL TANK 92027 92027-1745 1
CLAMP,TUBE 92037 92037-1377 1
RING-O 92055 92055-1299 1
RING-O 92055A 92055-1300 1
TUBE,5X9X250 92059 92059-1258 1
DAMPER 92075 92075-1382 1
DAMPER,FUEL TANK 92075A 92075-1587 1
BOLT,FLANGED,6X12 130 130G0612 6
BOLT-UPSET-WSP 187 187B0616 2
