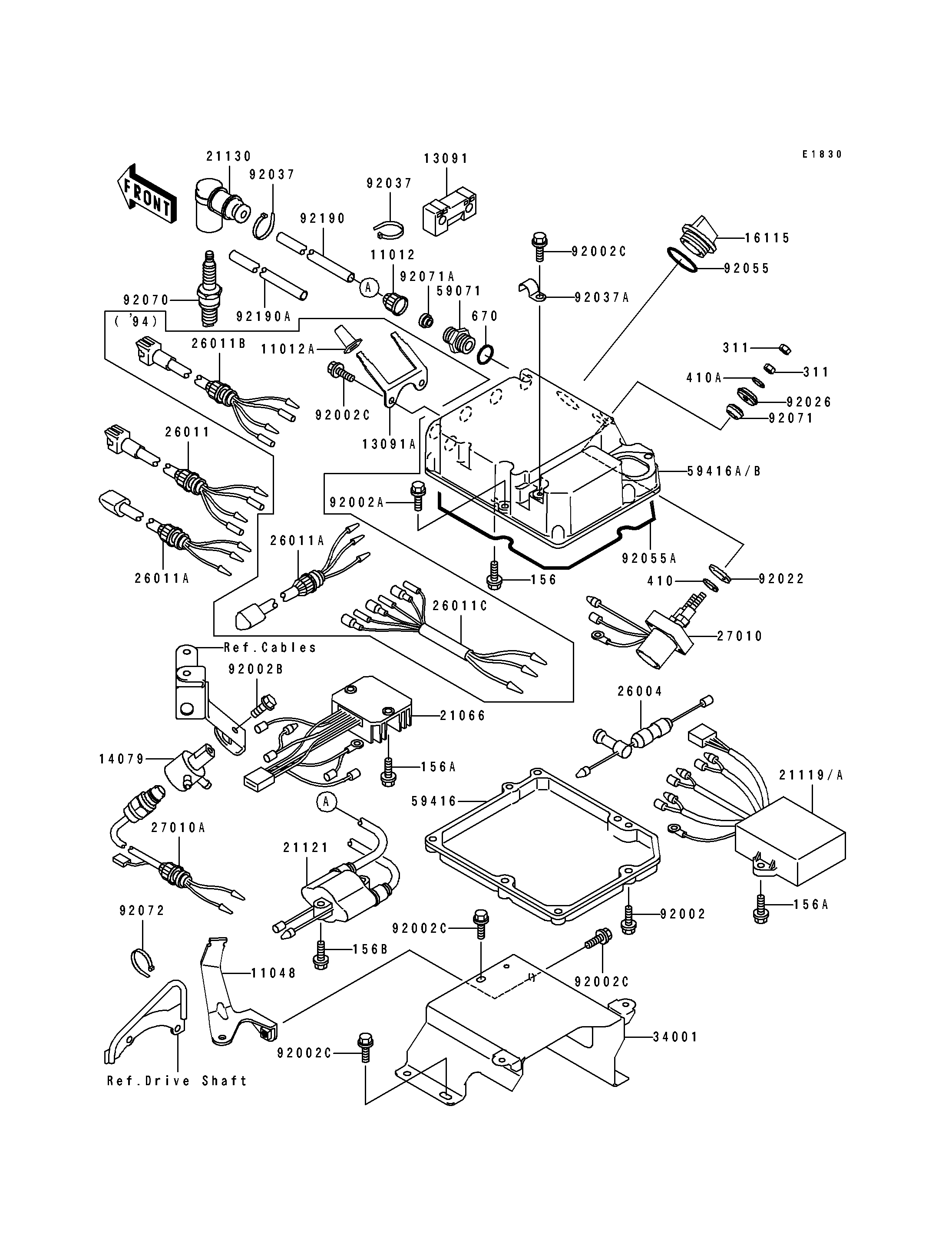

1994 Super Sport XI - Ignition System(JH750-B1/B2)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-3005 | 2 | ||
CAP,HOLDER | 11012A | 11012-3768 | 2 | ||
BRACKET,HIGH TENSION CORD | 11048 | 11048-3736 | 1 | ||
HOLDER,HIGH TENSION CORD | 13091 | 13091-3771 | 1 | ||
HOLDER,PLUG CAP | 13091A | 13091-3781 | 1 | ||
HOLDER-ASSY | 14079 | 14079-3705 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
REGULATOR-VOLTAGE | 21066 | 21066-3711 | 1 | ||
IGNITER | 21119A | 21119-3735 | 1 | ||
COIL-IGNITION | 21121 | 21121-3704 | 1 | ||
CAP-SPARK PLUG | 21130 | 21130-3706 | 2 | ||
FUSE-ASSY | 26004 | 26004-3712 | 1 | ||
WIRE-LEAD | 26011 | 26011-3799 | 1 | ||
WIRE-LEAD | 26011A | 26011-3800 | 2 | ||
WIRE-LEAD,TACHOMETER | 26011B | 26011-3802 | 1 | ||
WIRE-LEAD,ELECTRIC CASE | 26011C | 26011-3803 | 1 | ||
SWITCH,STARTER RELAY | 27010 | 27010-3724 | 1 | ||
SWITCH | 27010A | 27010-3733 | 1 | ||
STAND,ELECTRIC CASE | 34001 | 34001-3705 | 1 | ||
JOINT | 59071 | 59071-3001 | 7 | ||
CASE-ELECTRIC,LWR | 59416 | 59416-3728 | 1 | ||
CASE-ELECTRIC,UPP | 59416B | 59416-3733 | 1 | ||
BOLT,6X25 | 92002 | 92002-3714 | 5 | ||
BOLT,6X35 | 92002A | 92002-3715 | 3 | ||
BOLT,6X16 | 92002B | 92002-3728 | 1 | ||
BOLT,6X12 | 92002C | 92002-3763 | 7 | ||
WASHER | 92022 | 92022-3035 | 2 | ||
SPACER | 92026 | 92026-3703 | 2 | ||
CLAMP | 92037 | 92037-1173 | 4 | ||
CLAMP | 92037A | 92037-3730 | 1 | ||
RING-O,31.5X2.6 | 92055 | 92055-049 | 1 | ||
RING-O,ELECTRIC CASE | 92055A | 92055-3733 | 1 | ||
PLUG-SPARK,BR8ES(NGK) | 92070 | 92070-2078 | 2 | ||
GROMMET | 92071 | 92071-3004 | 2 | ||
GROMMET | 92071A | 92071-527 | 2 | ||
BAND | 92072 | 92072-3778 | 2 | ||
TUBE,HIGH TENSION,L=330 | 92190 | 92190-3707 | 1 | ||
TUBE,HIGH TENSION,L=210 | 92190A | 92190-3708 | 1 | ||
BOLT-WP,6X14 | 156 | 156R0614 | 1 | ||
BOLT-WP,6X22 | 156A | 156R0622 | 4 | ||
BOLT-WP | 156B | 156R0630 | 2 | ||
NUT-HEX,6MM | 311 | 311R0600 | 4 | ||
WASHER-PLAIN-SMALL,10MM | 410 | 410B1000 | 2 | ||
WASHER-PLAIN-SMALL,6MM | 410A | 410S0600 | 2 | ||
O RING,16MM | 670 | 670B2016 | 7 |
