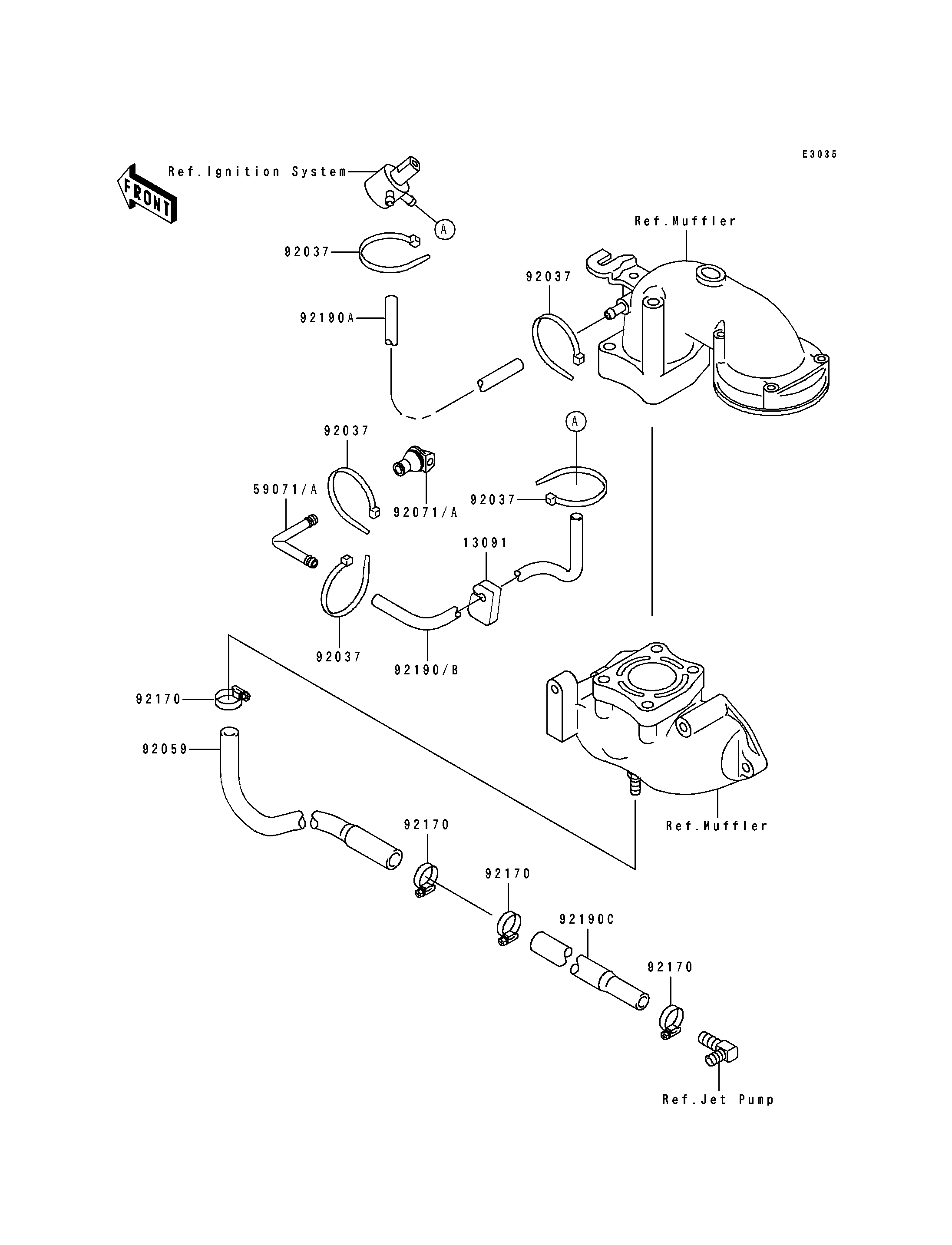

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13091 13091-3712 2
JOINT 59071 59071-3706 1
CLAMP 92037 92037-1173 5
TUBE,HULL-ENGINE 92059 92059-3891 1
GROMMET 92071 92071-3736 1
CLAMP 92170 92170-3718 4
TUBE 92190A 92191-3895 1
TUBE,5.8X10.8X730 92190B 92190-3899 1
TUBE,JET PUMP-HULL 92190C 92190-3915 1
