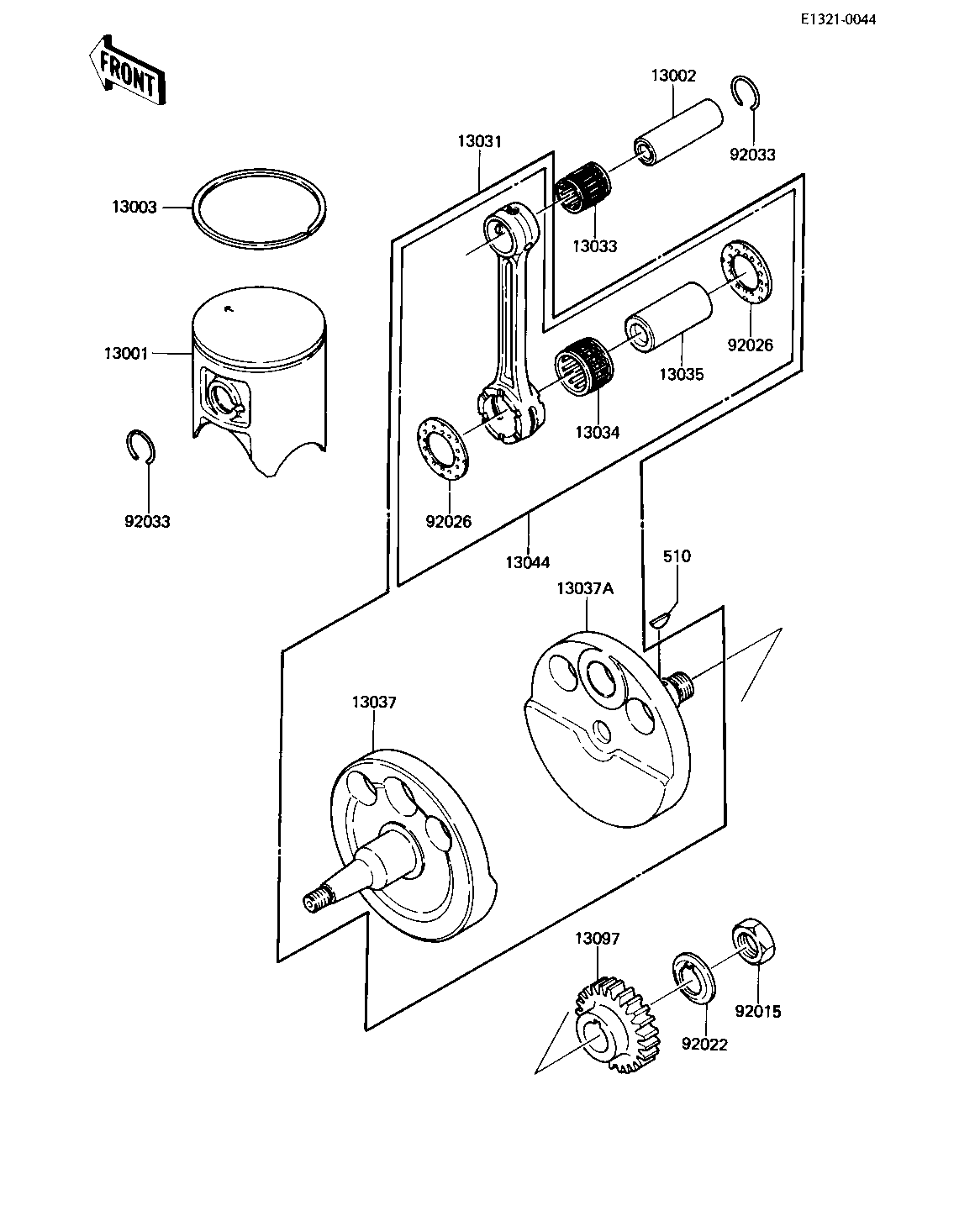

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE 13001 13001-1088 1
PIN-PISTON 13002 13002-031 1
RING-PISTON TOP 13003 13003-1113 1
CRANKSHAFT-COMP 13031 13031-1074 1
BEARING-SMALL END,KTV 13033 13033-1055 1
BEARING N,KT263322EGS 13034 13034-1012 1
PIN-CRANK 13035 13035-1008 1
CRANKSHAFT,LH 13037 13037-1143 1
CRANKSHAFT,RH 13037A 13037-1144 1
SET-CONNECTING ROD 13044 13044-5025 1
GEAR-PRIMARY SPUR.25T 13097 13097-1060 1
NUT 18MM 92015 92015-019 1
WASHER,CLAW,18MM 92022 92022-1378 1
WASHER,CONROD SIDE 92026 92026-093 2
CIRCLIP PISTON PIN 92033 92036-008 2
WOODRUFF KEY 510 510A5100 1
