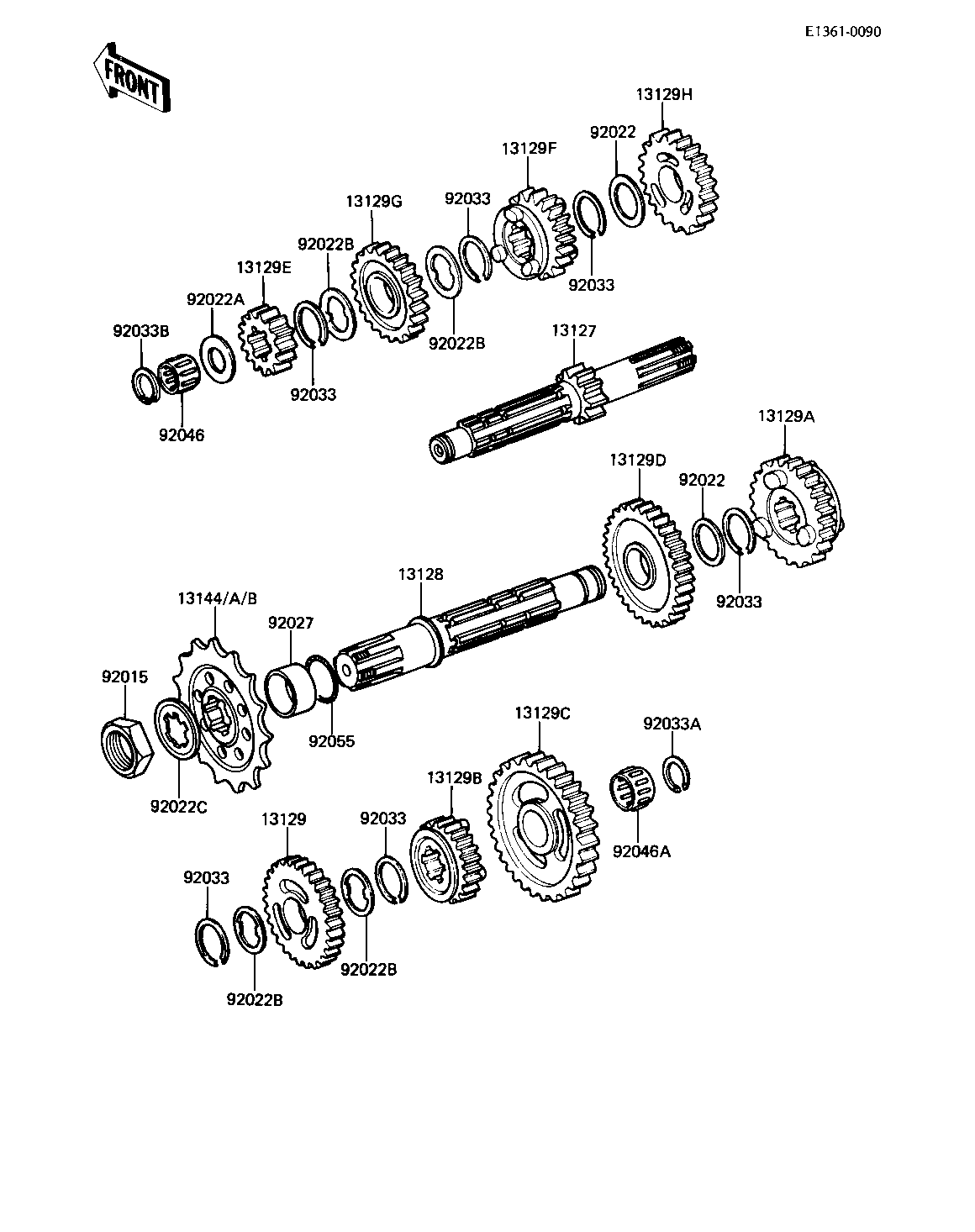

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION IN | 13127 | 13127-1053 | 1 | ||
| SHAFT-TRANSMISSION OU | 13128 | 13128-1042 | 1 | ||
| GEAR-TRANSMISSION SPU | 13129 | 13129-1679 | 1 | ||
| 4TH GEAR,OUTPUT,21T | 13129A | 13129-1132 | 1 | ||
| TOP GEAR,OUTPUT,19T | 13129B | 13129-1133 | 1 | ||
| LOW GEAR,OUTPUT,32T | 13129C | 13129-1180 | 1 | ||
| GEAR-OUTPUT 2ND,32T | 13129D | 13129-1622 | 1 | ||
| GEAR,INPUT 2ND.22T | 13129E | 13129-1407 | 1 | ||
| GEAR,INPUT 3RD,22T | 13129F | 13129-1408 | 1 | ||
| GEAR,INPUT 4TH,22T | 13129G | 13129-1409 | 1 | ||
| GEAR,INPUT TOP,24T | 13129H | 13129-1410 | 1 | ||
| ENGINE SPROCKET 13T | 13144 | 13144-055 | 1 | (OPTION) | |
| ENGINE SPROCKET,14T | 13144A | 13144-1006 | 1 | ||
| SPROCKET,ENGINE,15T | 13144B | 13144-1026 | 1 | (OPTION) | |
| NUT BEARING ADJUST | 92015 | 42045-008 | 1 | ||
| WASHER-PLAIN 25MM | 92022 | 92022-159 | 2 | ||
| WASHER,17.3X28X1.0 | 92022A | 92022-255 | 1 | ||
| WASHER-LOCK | 92022B | 92024-038 | 4 | ||
| WASHER,LOCK | 92022C | 92024-065 | 1 | ||
| COLLAR,25X32X10.5 | 92027 | 92143-1370 | 1 | ||
| CIRCLIP | 92033 | 92033-026 | 6 | ||
| CIRCLIP,18MM | 92033A | 92033-029 | 1 | ||
| CIRCLIP,16MM | 92033B | 92033-032 | 1 | ||
| BEARING-NEEDLE | 92046 | 92046-1184 | 1 | ||
| BEARING-NEEDLE,KT2026 | 92046A | 92046-1170 | 1 | ||
| "O" RING | 92055 | 92055-035 | 1 |
