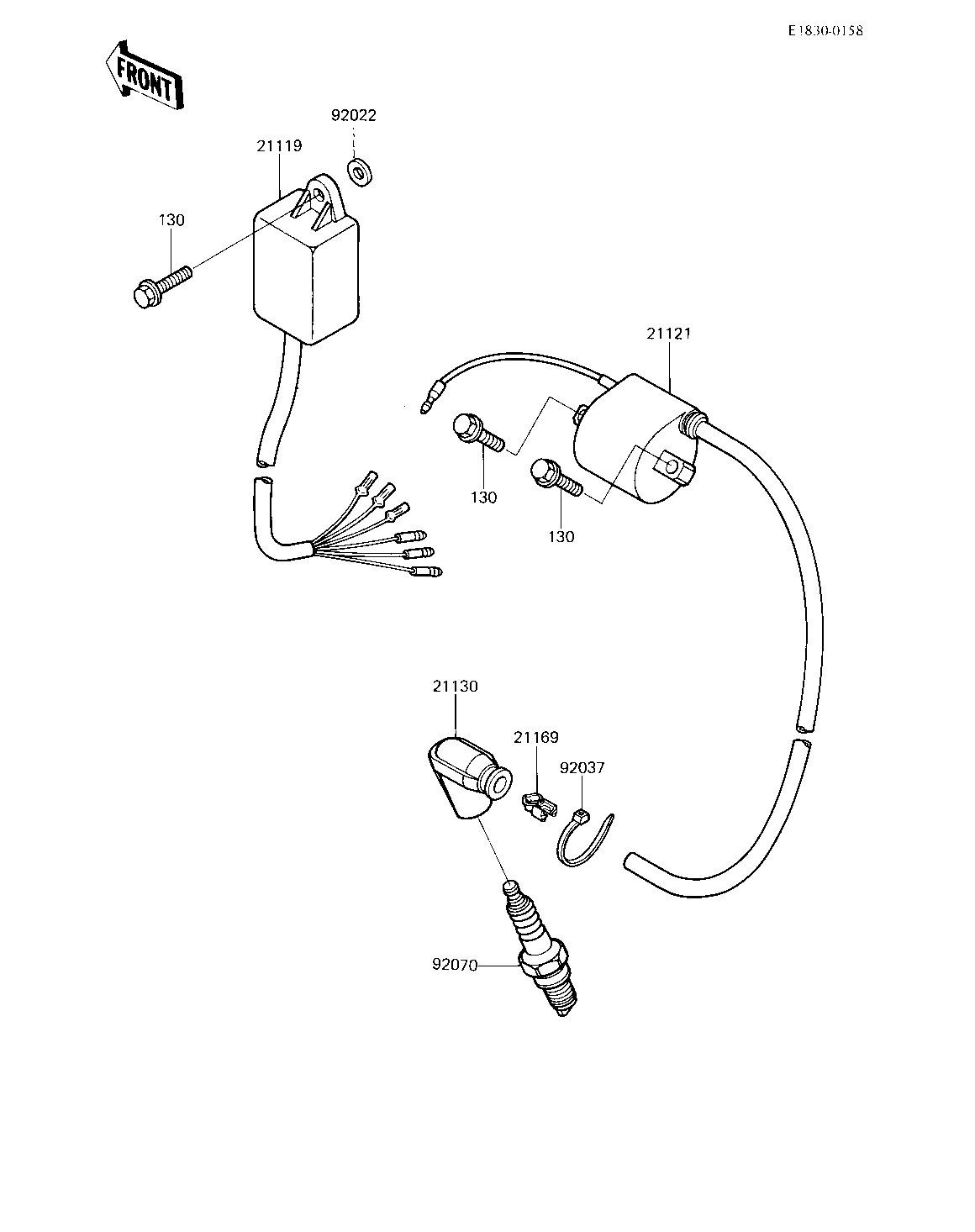

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
IGNITER 21119 21119-1054 1
COIL-IGNITION 21121 21121-1186 1
CAP,SPARK PLUG 21130 21130-1006 1
TERMINAL,PLUG CAP 21169 21169-001 1
WASHER,6.5X16X2 92022 92022-1565 1
CLAMP,SPARK PLUG CAP 92037 92037-1173 1
SPARK PLUG B9EG 92070 B9EG 1
BOLT-FLANGED,6X18 130 130G0618 3
