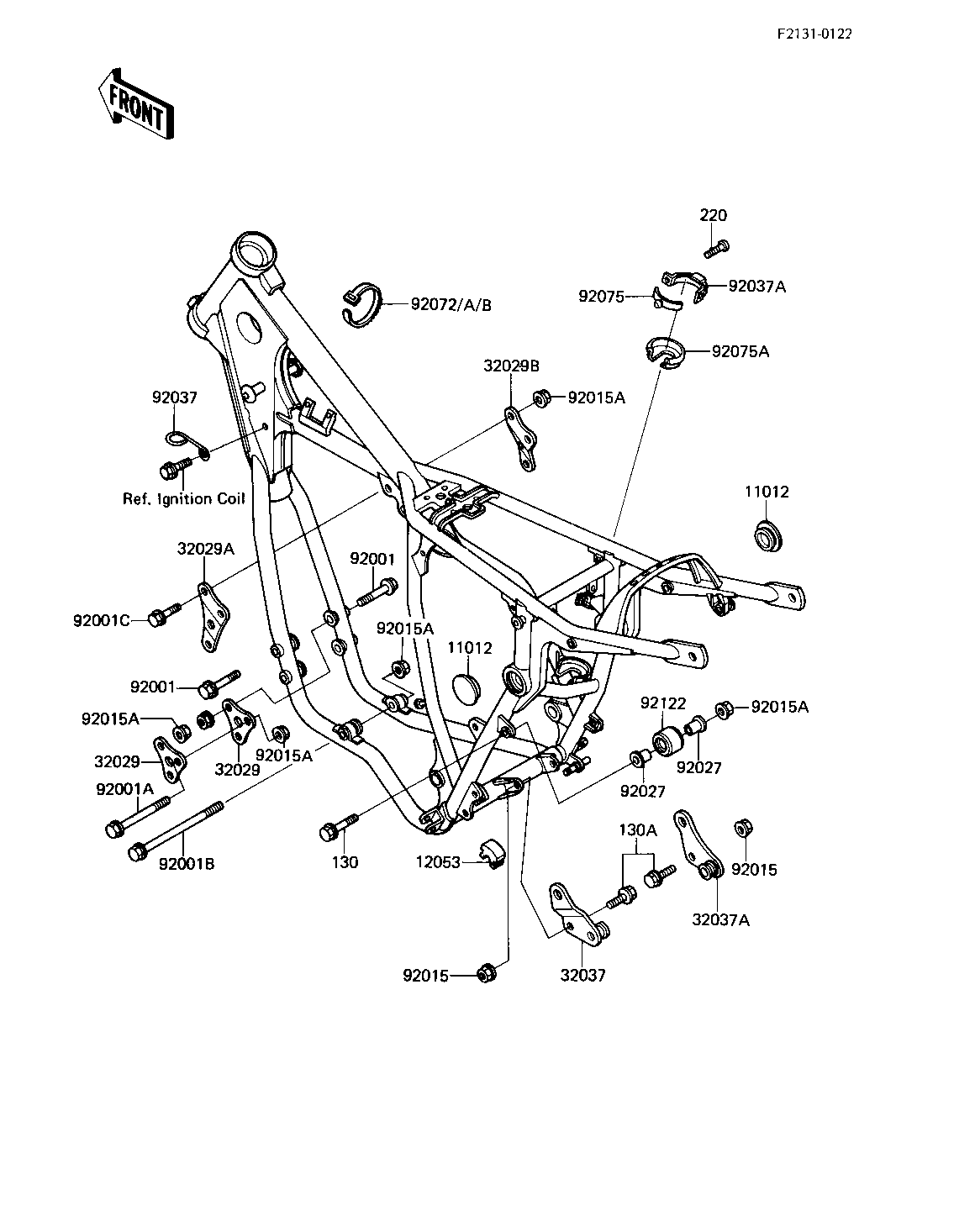

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,UNI TRAK | 11012 | 11012-1211 | 2 | ||
GUIDE-CHAIN,FR,LWR | 12053 | 12053-1088 | 1 | ||
BRACKET-ENGINE,FR | 32029 | 32029-1203 | 2 | ||
BRACKET-ENGINE,UPP,LH | 32029A | 32029-1204 | 1 | ||
BRACKET-ENGINE,UPP,RH | 32029B | 32029-1205 | 1 | ||
BRACKET-SHOCKABSORBER | 32037 | 32037-1230 | 1 | ||
BRACKET-SHOCKABSORBER | 32037A | 32037-1231 | 1 | ||
BOLT,8X57 | 92001 | 92001-1493 | 4 | ||
BOLT,FLANGED,8X95 | 92001A | 92001-1689 | 1 | ||
BOLT,FLANGED,8X160 | 92001B | 92001-1690 | 1 | ||
BOLT,FLANGED,8X25 | 92001C | 92001-1691 | 2 | ||
NUT,10MM | 92015 | 92015-1415 | 2 | ||
NUT-8MM | 92015A | 92015-1143 | 9 | ||
COLLAR,CHAIN GUIDE | 92027 | 92027-1383 | 2 | ||
CLAMP,CABLE | 92037 | 92037-1148 | 1 | ||
CLAMP,RESERVE TANK,UP | 92037A | 92037-1375 | 1 | ||
BAND,SHORT | 92072 | 92072-030 | 2 | ||
BAND,MIDDLE | 92072A | 92072-031 | 2 | ||
BAND,LONG | 92072B | 92072-032 | 1 | ||
DAMPER,RESERVE TANK,U | 92075 | 92075-1431 | 1 | ||
DAMPER,RESERVE TANK,L | 92075A | 92075-1432 | 1 | ||
ROLLER,CHAIN GUIDE | 92122 | 92122-1021 | 1 | ||
BOLT,FLANGED,8X50 | 130 | 130G0850 | 1 | ||
BOLT-FLANGED,10X20 | 130A | 130P1020 | 2 | ||
SCREW PAN HEAD 6X12 | 220 | 220B0612 | 1 |
CAP,UNI TRAK | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,FR,LWR | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,FR | |
REF # | 32029 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,UPP,LH | |
REF # | 32029A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,UPP,RH | |
REF # | 32029B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-SHOCKABSORBER | |
REF # | 32037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-SHOCKABSORBER | |
REF # | 32037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X57 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X95 | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X160 | |
REF # | 92001B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X25 | |
REF # | 92001C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-8MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS |
COLLAR,CHAIN GUIDE | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,CABLE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,RESERVE TANK,UP | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,SHORT | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,MIDDLE | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,LONG | |
REF # | 92072B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,RESERVE TANK,U | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,RESERVE TANK,L | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROLLER,CHAIN GUIDE | |
REF # | 92122 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X50 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,10X20 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X12 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
