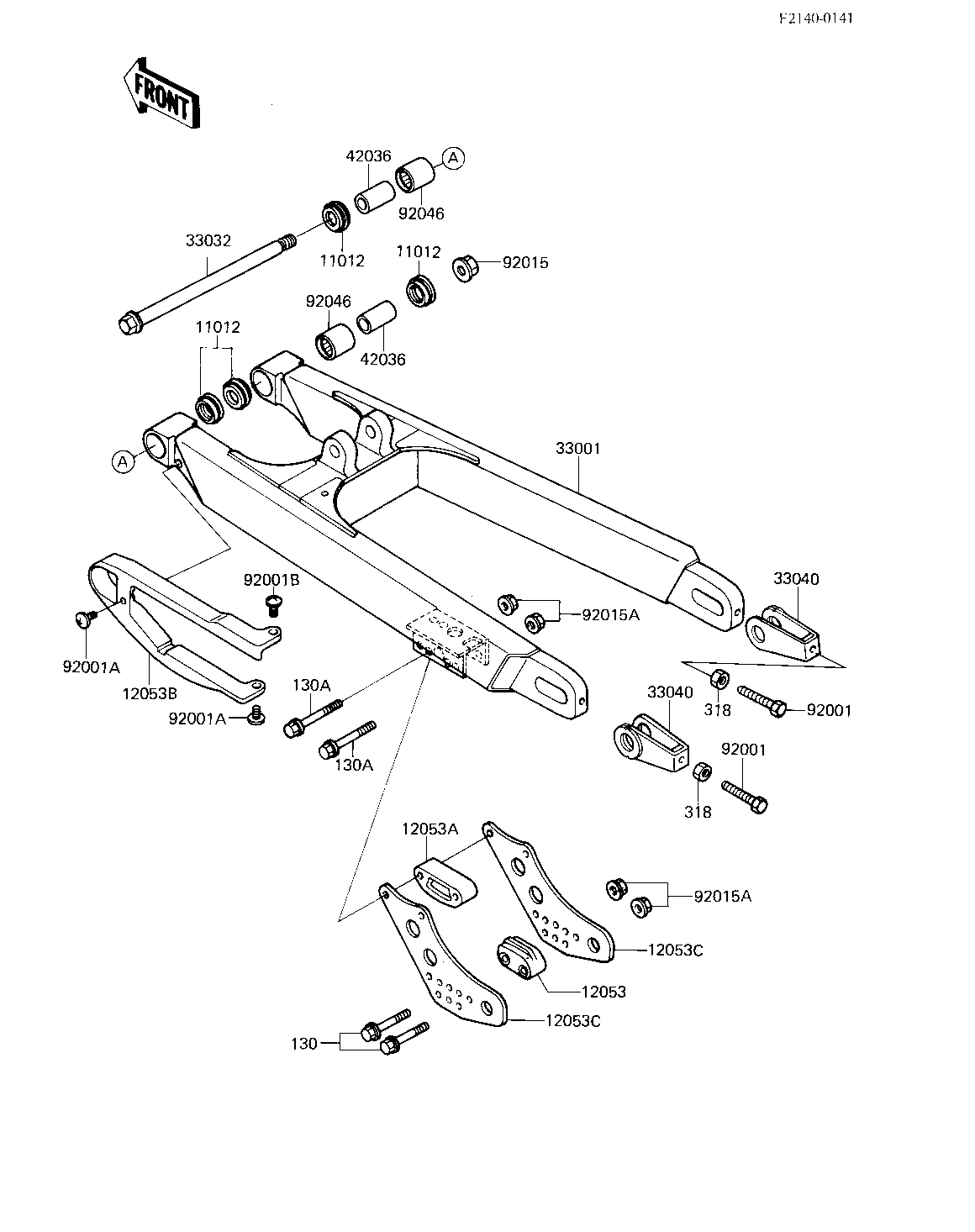

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 11012 11012-1259 4
GUIDE,CHAIN,REAR 12053 12053-1011 1
GUIDE,CHAIN,REAR 12053A 12053-1039 1
GUIDE-CHAIN,FR 12053B 12053-1068 1
GUIDE-CHAIN,RR 12053C 12053-1073 2
ARM-COMP-SWING 33001 33001-1174 1
SHAFT-SWING ARM 33032 33032-1042 1
ADJUSTER-CHAIN 33040 33040-1022 2
SLEEVE,SWING ARM 42036 42036-1064 2
BOLT,CHAIN ADJUSTER 92001 92001-1027 2
SCREW,6X10 92001A 92009-1286 2
SCREW,6X14 92001B 92009-1287 1
NUT,14MM 92015 92015-1407 1
NUT-6MM 92015A 92015-1078 4
BRG,NEEDLE,HMK2030 92046 92046-1031 2
BOLT,FLANGED,6X35 130 130H0635 2
BOLT,FLANGED,6X45 130A 130G0645 2
NUT 8MM 318 318G0800 2
