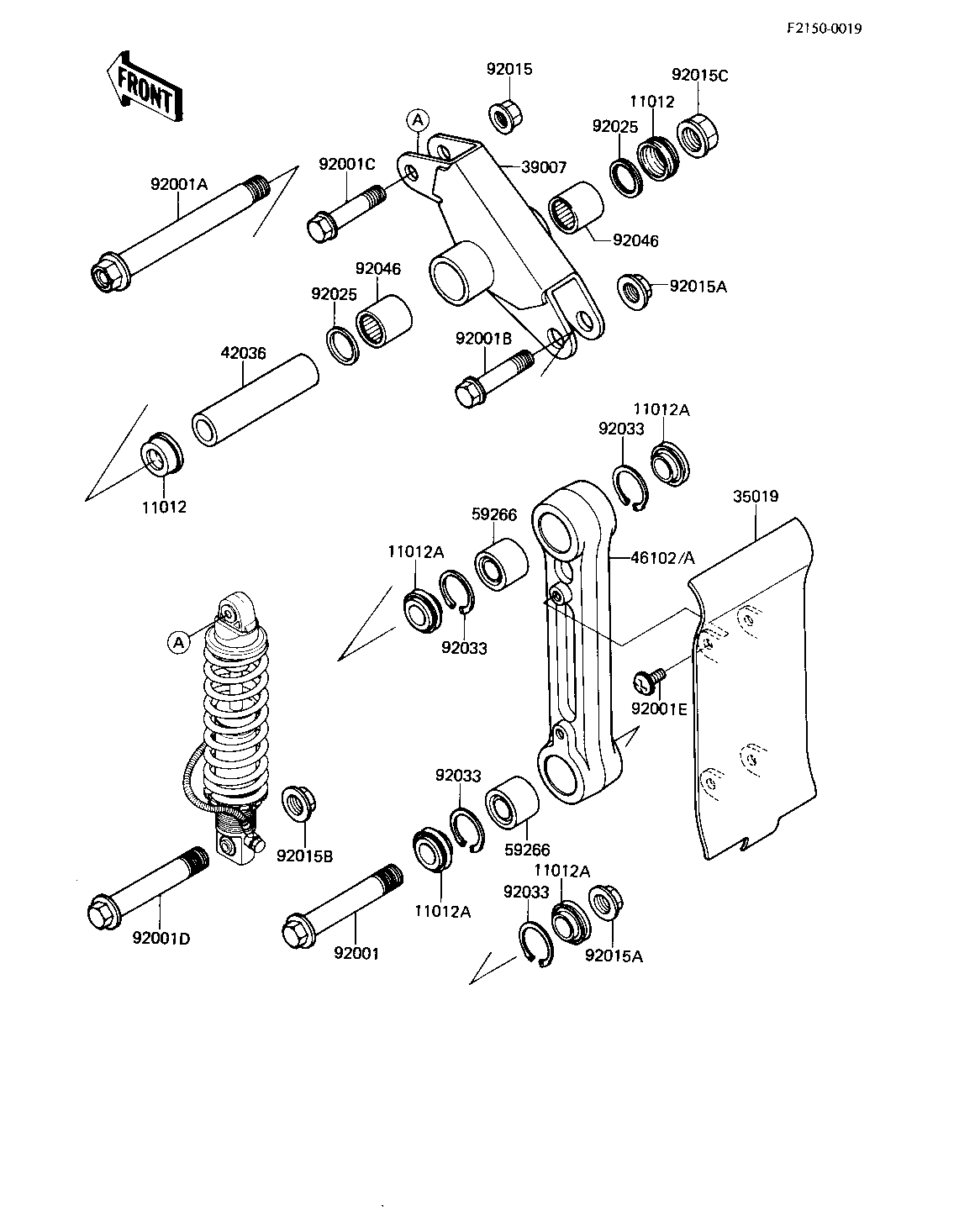

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-1203 | 2 | ||
CAP,ROD | 11012A | 11012-1258 | 4 | ||
FLAP,ROD | 35019 | 35019-1112 | 1 | ||
ARM-SUSP,UNIT TRAK | 39007 | 39007-1022 | 1 | ||
SLEEVE,SUSPENSION ARM | 42036 | 42036-1063 | 1 | ||
ROD,UNI TRAK | 46102 | 46102-1056 | 1 | ||
ROD,UNI TRAK,L=203 | 46102A | 46102-1066 | 1 | (OPTION) | |
JOINT-BALL,SB142820E0 | 59266 | 59266-1052 | 2 | ||
BOLT,FLANGED,14X82 | 92001 | 92001-1686 | 1 | ||
BOLT,SUSPENSION ARM | 92001A | 92001-1687 | 1 | ||
BOLT,FLANGED,14X57 | 92001B | 92001-1688 | 1 | ||
BOLT,FLANGED,10X50 | 92001C | 92001-1692 | 1 | ||
BOLT,FLANGED,12X88 | 92001D | 92001-1693 | 1 | ||
SCREW,6X10 | 92001E | 92009-1286 | 4 | ||
NUT,10MM | 92015 | 92015-1415 | 1 | ||
NUT,14MM | 92015A | 92015-1407 | 2 | ||
NUT-12MM | 92015B | 92015-1156 | 1 | ||
NUT,16MM | 92015C | 92015-1046 | 1 | ||
SHIM | 92025 | 92025-1229 | 2 | ||
RING,SNAP | 92033 | 92033-1064 | 4 | ||
BEARING-NEEDLE | 92046 | 92046-1041 | 2 |
CAP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP,ROD | |
REF # | 11012A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
FLAP,ROD | |
REF # | 35019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-SUSP,UNIT TRAK | |
REF # | 39007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,SUSPENSION ARM | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD,UNI TRAK | |
REF # | 46102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD,UNI TRAK,L=203 | |
REF # | 46102A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
JOINT-BALL,SB142820E0 | |
REF # | 59266 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,14X82 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SUSPENSION ARM | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,14X57 | |
REF # | 92001B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X50 | |
REF # | 92001C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,12X88 | |
REF # | 92001D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X10 | |
REF # | 92001E |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,14MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-12MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,16MM | |
REF # | 92015C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHIM | |
REF # | 92025 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING,SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
