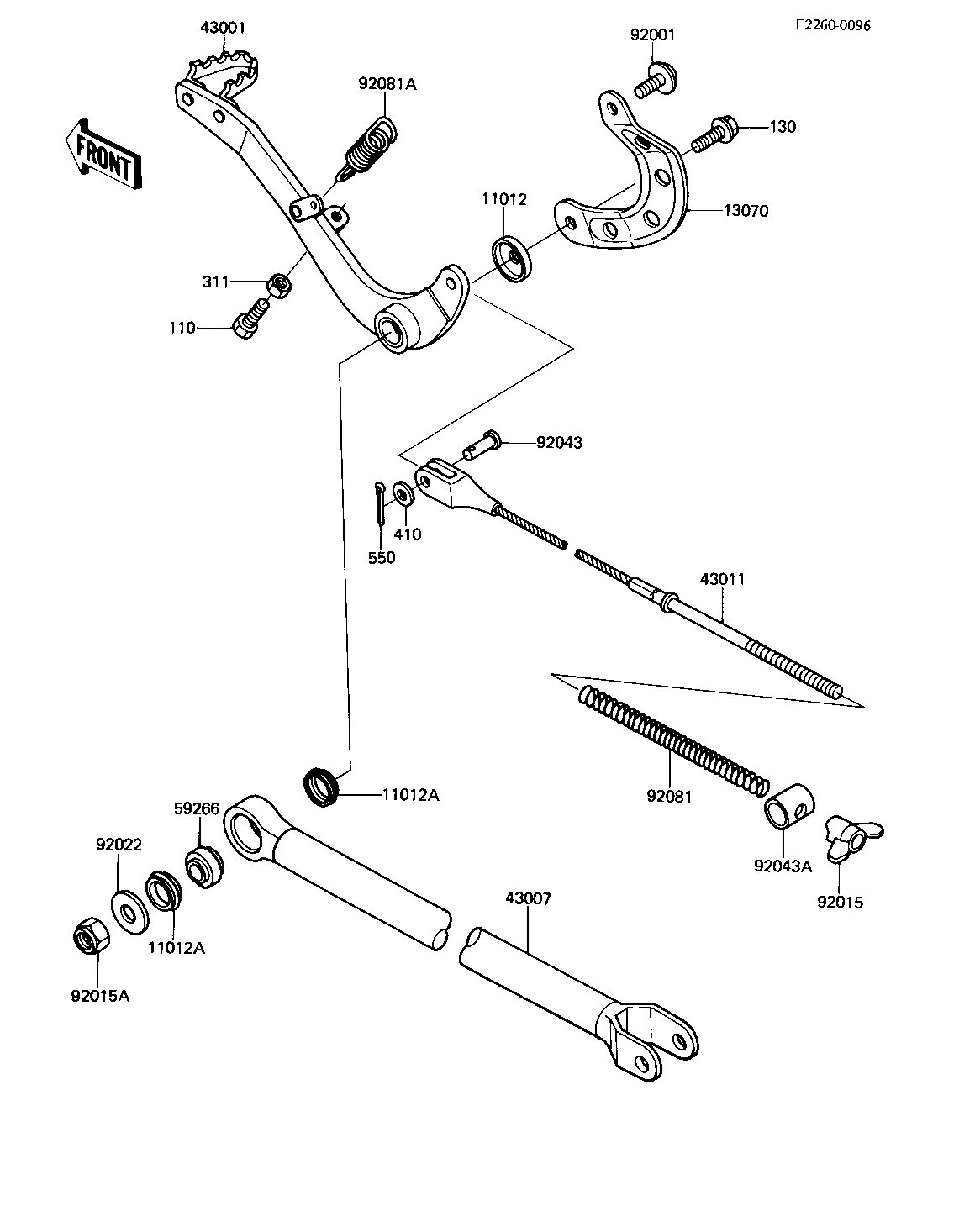

1983 KX500 - BRAKE PEDAL/TORQUE LINK ('83 A1)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-1204 | 1 | ||
CAP,TORQUE ROD | 11012A | 11012-1260 | 2 | ||
GUIDE,BRAKE ROD | 13070 | 13070-1072 | 1 | ||
LEVER-BRAKE,PEDAL | 43001 | 43001-1103 | 1 | ||
ROD-TORQUE | 43007 | 43007-1040 | 1 | ||
ROD-BRAKE | 43011 | 43011-1058 | 1 | ||
JOINT-BALL,TORQUE ROD | 59266 | 59266-1010 | 1 | ||
SCREW,6X10 | 92001 | 92009-1286 | 1 | ||
NUT,WING,6M/M | 92015 | 92015-4004 | 1 | ||
NUT,LOCK,10MM | 92015A | 92019-021 | 1 | ||
WASHER,PLAIN,10.5X24 | 92022 | 92022-1137 | 1 | ||
PIN-BRAKE ROD FITTING | 92043 | 92043-064 | 1 | ||
PIN,BRAKE | 92043A | 92043-1024 | 1 | ||
SPRING,BRAKE ROD | 92081 | 43012-001 | 1 | ||
SPRING RETURN | 92081A | 92081-1059 | 1 | ||
BOLT-UPSET,6X20 | 110 | 112G0620 | 1 | ||
BOLT,FLANGED,6X12 | 130 | 130G0612 | 1 | ||
NUT 6MM | 311 | 311B0600 | 1 | ||
WASHER PLAIN 6MM | 410 | 410B0600 | 1 | ||
PIN COTTER 2.0X15 | 550 | 550D2015 | 1 |
