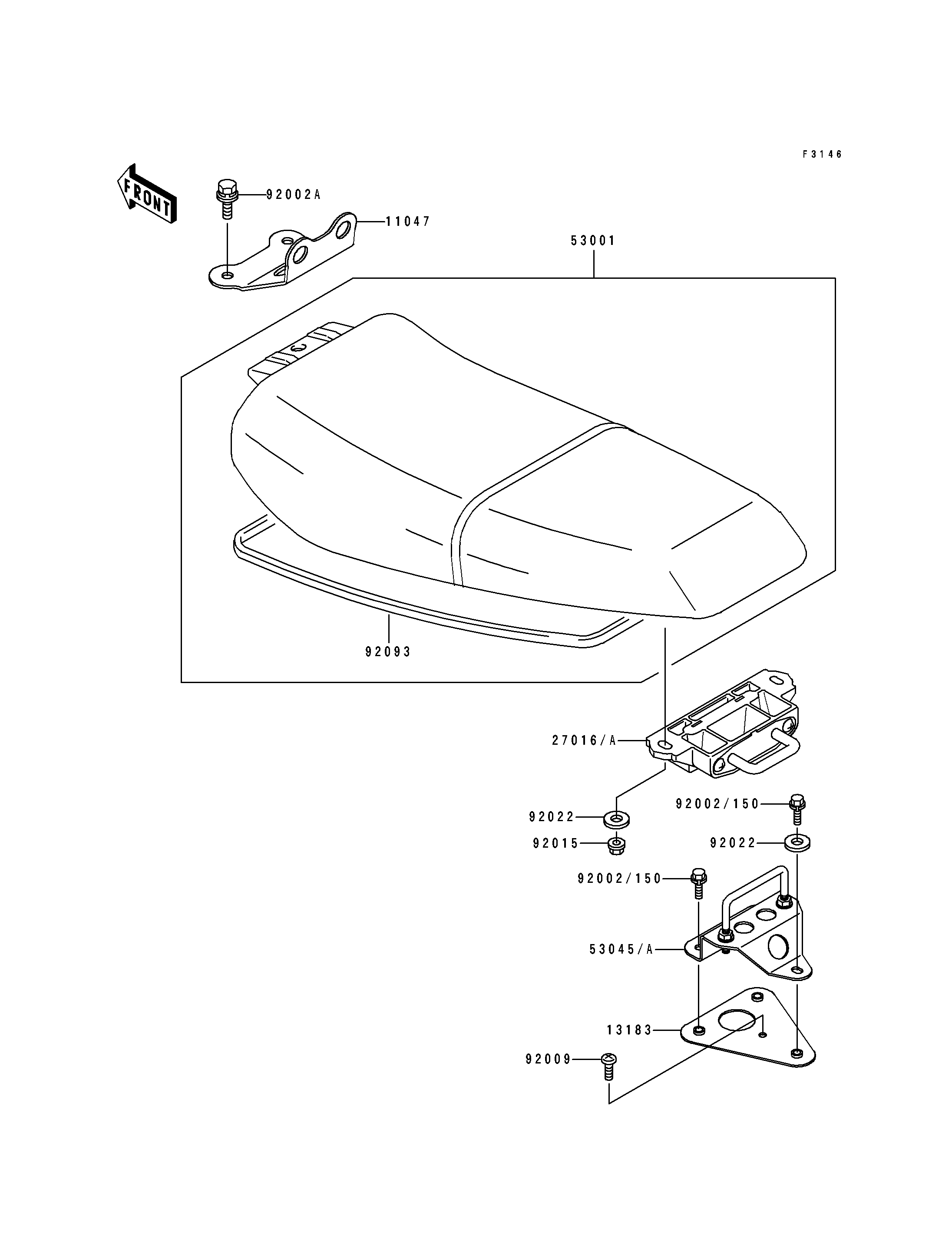

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT,FR 11047 11047-3766 1
PLATE,SEAT LOCK HOOK 13183 13183-3820 1
LOCK-ASSY,SEAT 27016A 27016-3731 1
SEAT-ASSY,J.S.VIOLET 53001 53001-3718-PJ 1
HOOK-ASSY,SEAT LOCK 53045A 53045-3706 1
BOLT,6X16 92002 92002-3728 3
BOLT,8X25 92002A 92002-3774 2
SCREW,5X16 92009 92009-3789 1
NUT,6MM 92015 92015-3767 2
WASHER,6.5X20X1.5 92022 92022-3710 3
SEAL,SEAT 92093 92093-3735 1
