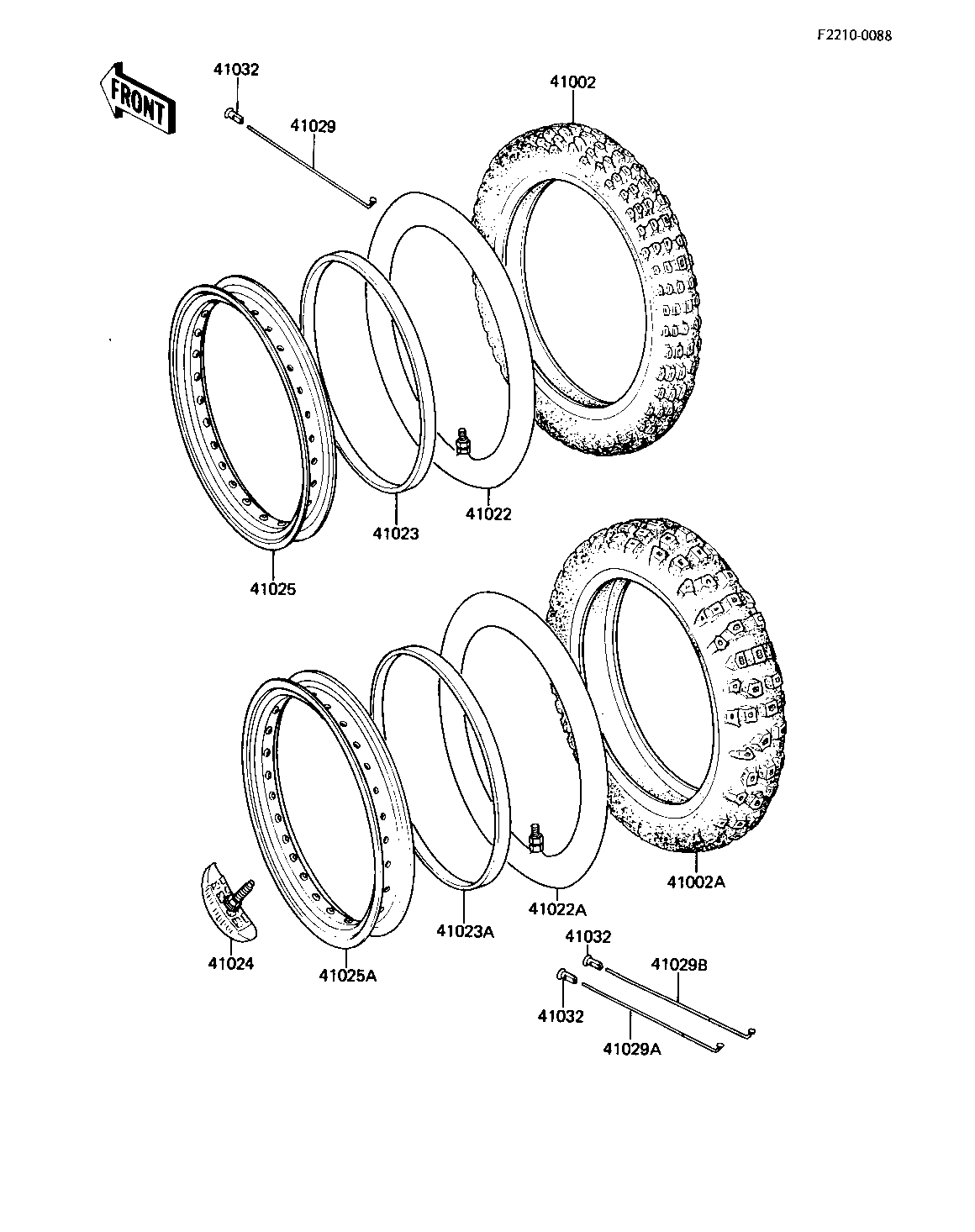

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE 300-21 K490 F 41002 41002-1312 1
TIRE 510-18 K490 R 41002A 41002-1323 1
TUBE,2.75/3.70-21 41022 41022-1021 1
TUBE 450/475/550-18 41022A 41022-1015 1
BAND,RIM,3.00-21 41023 41023-1001 1
BAND,RIM,4.00/5.10-18 41023A 41023-1006 1
PROTECTORBEAD 41024 41024-009 1
RIM,FR,1.60X21EFJ 41025 41025-1073 1
RIM,RR,2.15X18EFJ 41025A 41025-1081 1
SPOKE-INNER,FR,240MMX 41029 41029-1084 36
SPOKE-INNER,RR,LH,199 41029A 41029-1085 18
SPOKE-INNER,RR,RH,193 41029B 41029-1086 18
NIPPLE-SPOKE 41032 41032-1054 72
