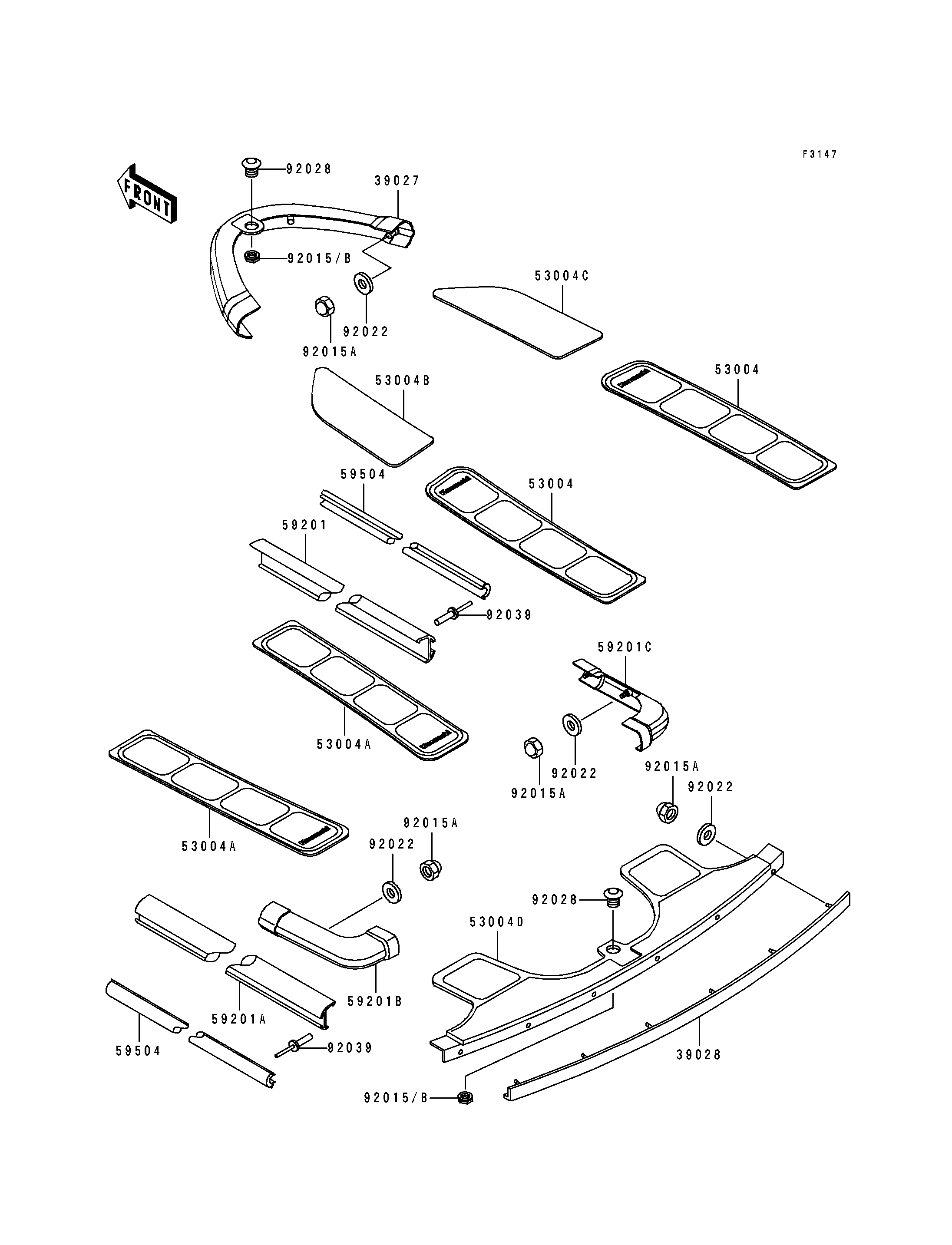

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BUMPER-FRONT,VIOLET 39027 39027-3725-RE 1
BUMPER-REAR,VIOLET 39028 39028-3725-RE 1
MAT,FLOOR,FR,VIOLET 53004 53004-3741-RE 2
MAT,FLOOR,RR,VIOLET 53004A 53004-3742-RE 2
MAT,FOOT BOARD,LH,VIOLET 53004B 53004-3743-RE 1
MAT,FOOT BOARD,RH,VIOLET 53004C 53004-3744-RE 1
MAT,REAR BUMPER,VIOLET 53004D 53004-3745-RE 1
BUMPER,SIDE,RH,VIOLET 59201 59201-3734-RE 1
BUMPER,SIDE,LH,VIOLET 59201A 59201-3741-RE 1
BUMPER,CORNER,LH,VIOLET 59201B 59201-3747-RE 1
BUMPER,CORNER,RH,VIOLET 59201C 59201-3748-RE 1
INSERT-BOAT FENDER,VIOLET 59504 59504-3708-RE 2
NUT,CAP,5MM 92015A 92015-3802 16
NUT,26MM 92015B 92015-3840 2
WASHER,5X16X1.5 92022 92022-3041 18
BUSHING 92028 92028-3734 2
RIVET 92039 92039-3747 20
