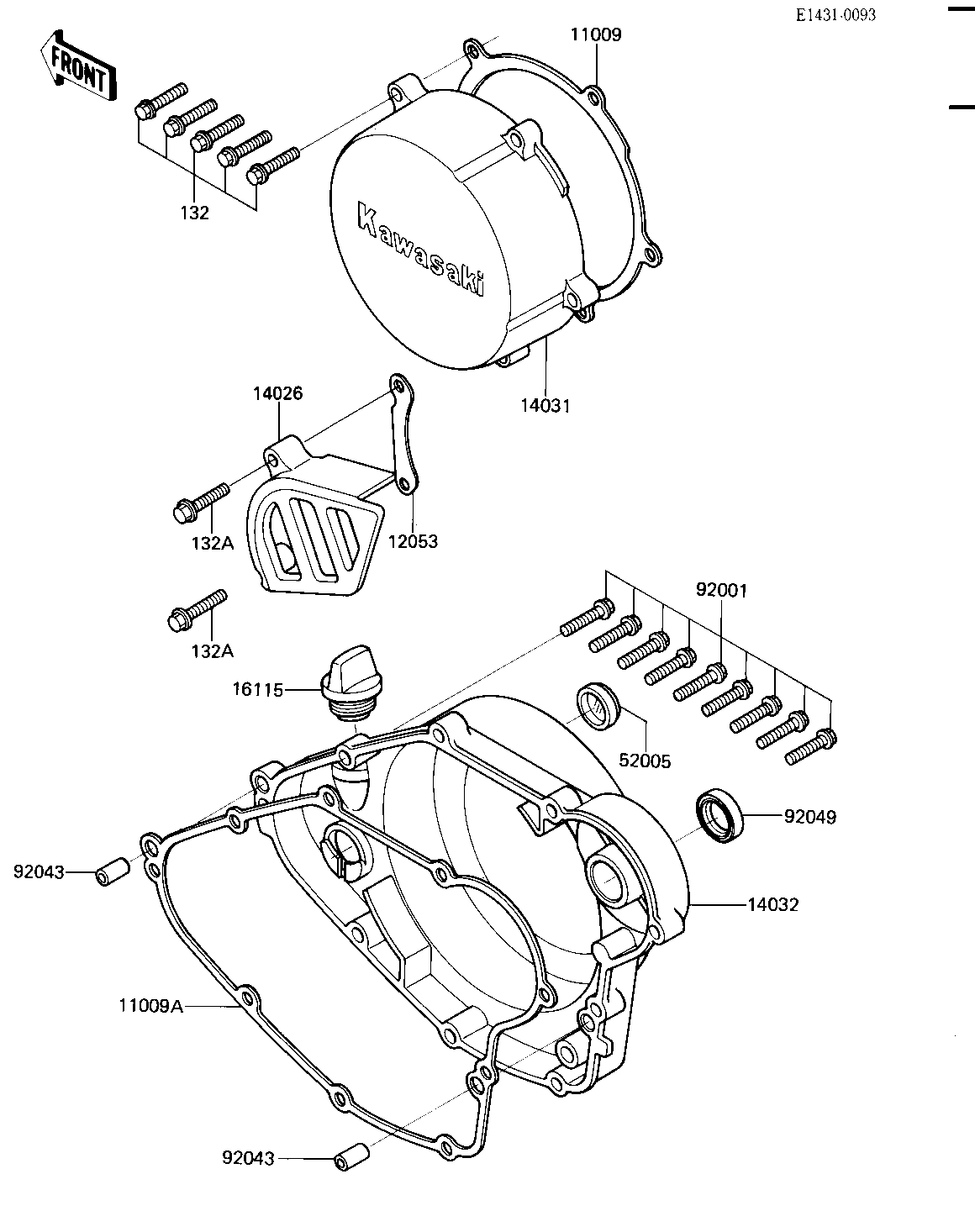

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GENERATOR COVE 11009 11009-1964 1
GASKET,CLUTCH COVER 11009A 11009-1290 1
GUIDE-CHAIN 12053 12053-1123 1
COVER-CHAIN 14026 14026-1119 1
COVER-GENERATOR 14031 14031-1091 1
COVER-CLUTCH 14032 14032-1079 1
FILLER,OIL 16115 16115-018 1
GAUGE,OIL LEVEL 52005 52005-1009 1
BOLT-FLANGED-SMALL 92001 132G0625 9
PIN-DOWEL 92043 92042-007 2
OIL SEAL SB20285 92049 92049-012 1
BOLT-FLANGED-SMALL 132 132G0625 5
BOLT-FLANGED-SMALL 132A 132G0630 2
