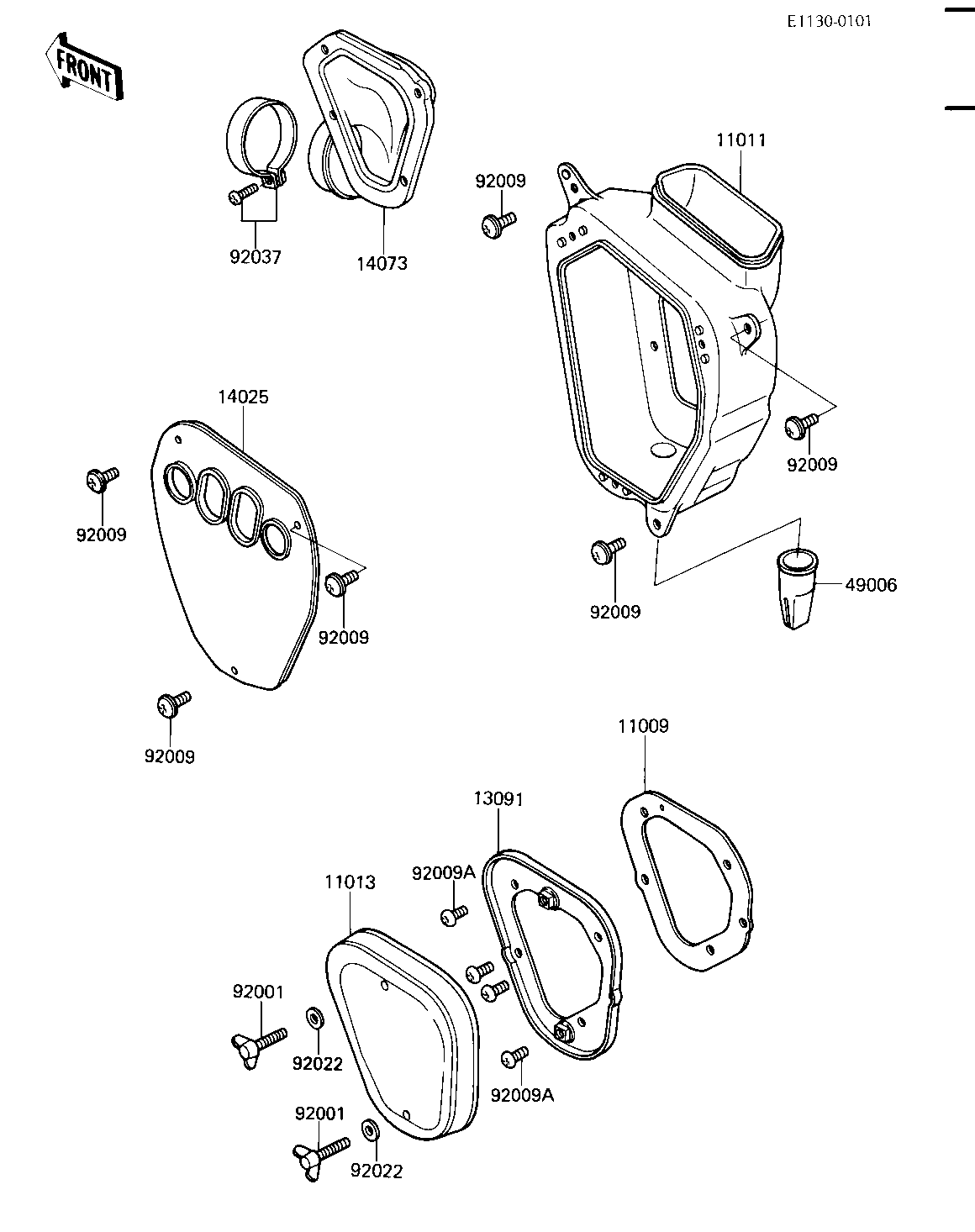

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,AIR FILTER CAS 11009 11009-1317 1
CASE-AIR FILTER 11011 11011-1115 1
ELEMENT-AIR FILTER 11013 11013-1063 1
HOLDER,AIR FILTER 13091 13091-1156 1
COVER,AIR FILTER CASE 14025 14025-1386 1
DUCT,AIR FILTER 14073 14073-1079 1
BOOT 49006 49006-1012 1
BOLT,WING,6X40 92001 92001-1685 2
SCREW,6X14 92009 92009-1287 6
SCREW,5X12 92009A 92009-1296 4
WASHER 6.5X20X1.6T 92022 92022-125 2
CLAMP-AIR CLEANER 92037 92037-068 1
