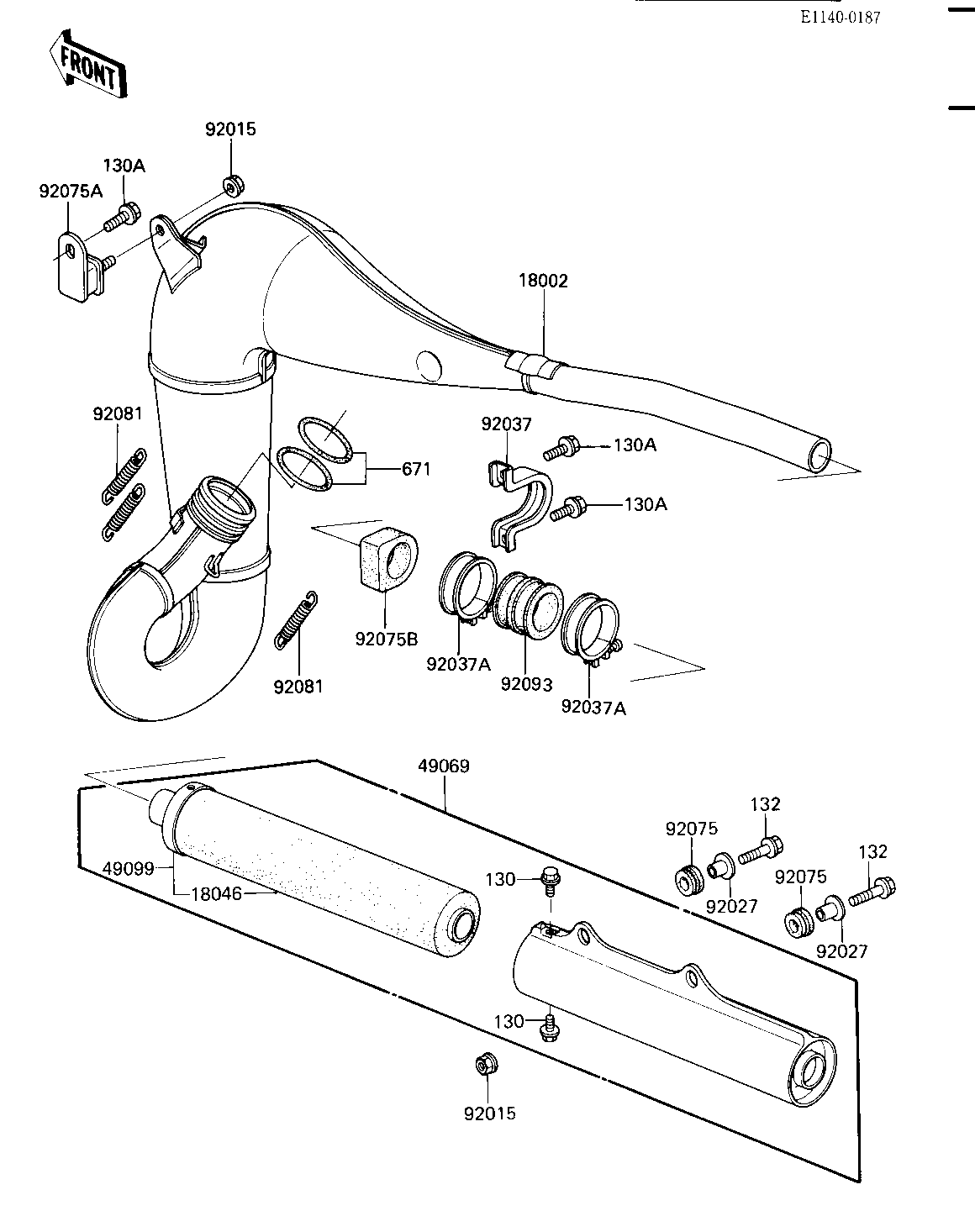

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BODY-COMP-MUFFLER 18002 18002-1427 1
WOOL,MUFFLER BAFFLE P 18046 18046-1017 1
MUFFLER-ASSY 49069 49069-1069 1
BAFFLE-PIPE MUFFLER 49009 49099-1201 1
NUT-6MM 92015 92015-1078 2
COLLAR 92027 92027-194 2
CLAMP,MUFFLER 92037 92037-1494 1
CLAMP,MUFFLER 92037A 92037-177 2
DAMPER, HEAD LMP FITT 92075 92075-1123 2
DAMPER,MUFFLER 92075A 92075-1891 1
DAMPER,MUFFLER 92075B 92075-1588 1
SPRING-CONNECTOR 92081 18071-003 3
DUST SHIELD,MUFFLER 92093 92093-1014 1
BOLT-FLANGED 130 130G0508 2
BOLT,FLANGED,6X12 130A 130G0612 3
BOLT-FLANGED-SMALL 132 132G0625 2
O RING,50MM 671 671E2550 2
