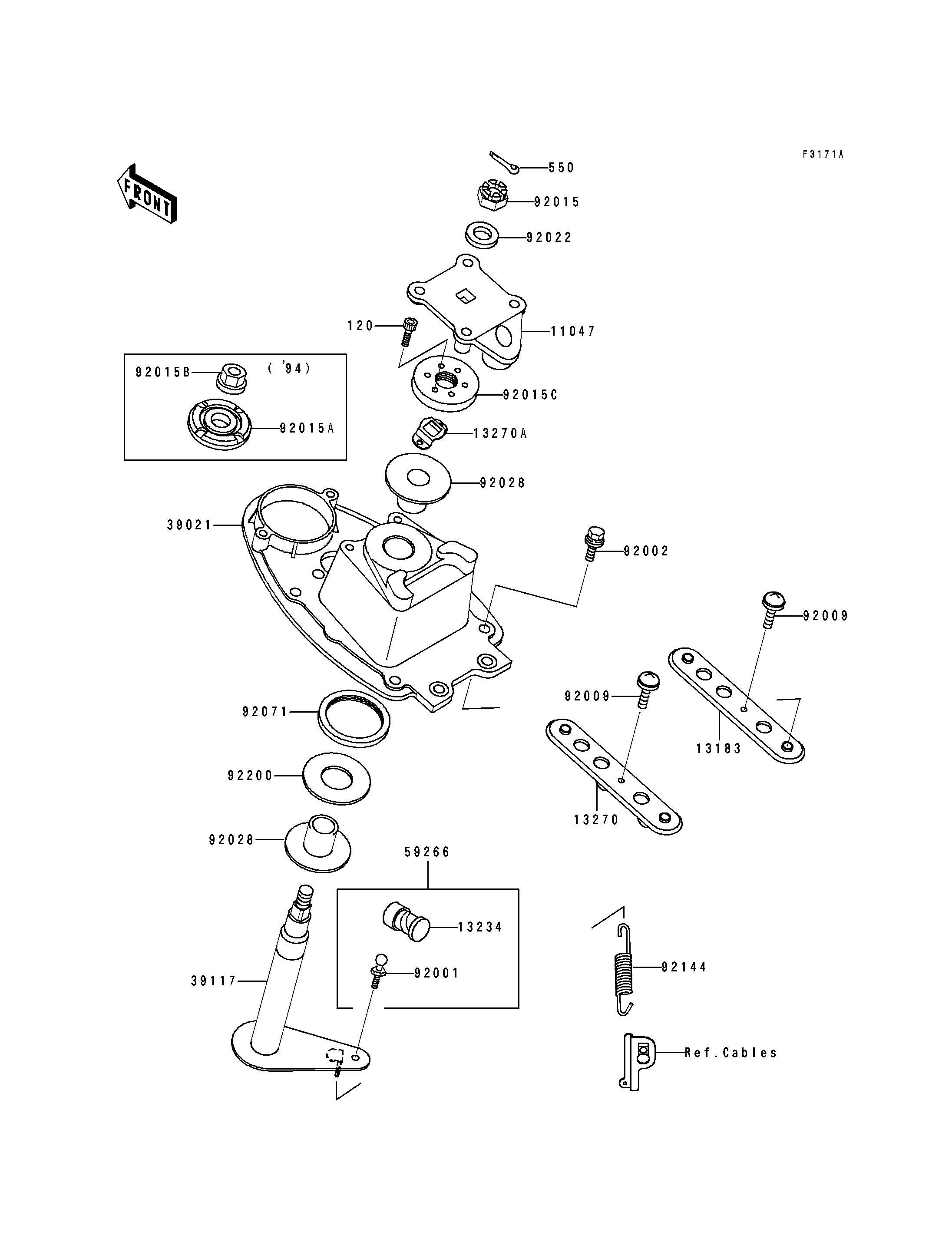

1994 Super Sport XI - Handle Pole(JH750-B2/B3)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,HANDLE HOLDER | 11047 | 11047-3759 | 1 | ||
PLATE,HANDLE POLE BRACKET | 13183 | 13183-3806 | 1 | ||
SHAFT-COMP,JOINT | 13234 | 13234-3708 | 1 | ||
PLATE,HANDLE POLE BRACKET,LH | 13270 | 13270-3739 | 1 | ||
BRACKET-HANDLE POLE | 39021 | 39021-3704 | 1 | ||
SHAFT-STRG | 39117 | 39117-3706 | 1 | ||
JOINT-BALL | 59266 | 59266-3707 | 1 | ||
BOLT,BALL,6MM | 92001 | 92001-3703 | 1 | ||
BOLT,8X25 | 92002 | 92002-3774 | 4 | ||
SCREW,5X16 | 92009 | 92009-3789 | 2 | ||
NUT,CASTLE,14MM | 92015 | 92015-3805 | 1 | ||
NUT,STEERING,20MM | 92015A | 92015-3826 | 1 | ||
NUT,STEERING,LOCK,20MM | 92015B | 92015-3827 | 1 | ||
WASHER,15X34X2.0 | 92022 | 92022-3738 | 1 | ||
BUSHING,STEERING | 92028 | 92028-3748 | 2 | ||
GROMMET | 92071 | 92071-3792 | 1 | ||
SPRING | 92144 | 92144-3737 | 1 | ||
WASHER,32.5X70X2 | 92200 | 92200-3718 | 1 | ||
PIN-COTTER,3X35 | 550 | 550S3035 | 1 |
