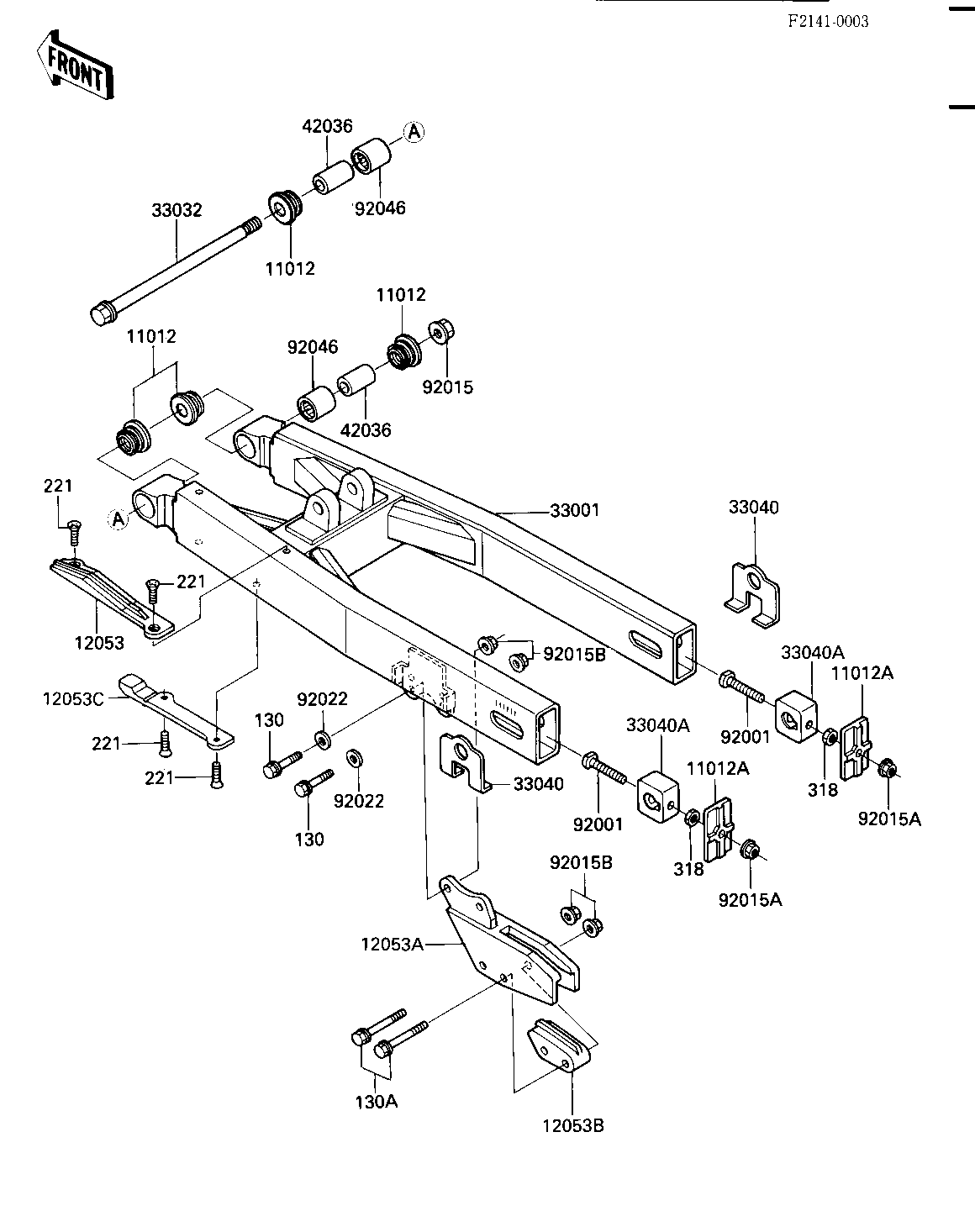

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,SWING ARM | 11012 | 11012-1355 | 4 | ||
CAP,CHAIN ADJUSTER | 11012A | 11012-1431 | 2 | ||
GUIDE-CHAIN,FR,UPP | 12053 | 12053-1101 | 1 | ||
GUIDE-CHAIN,RR | 12053A | 12053-1136 | 1 | ||
GUIDE-CHAIN,RR,INSIDE | 12053B | 12053-1105 | 1 | ||
GUIDE-CHAIN | 12053C | 12053-1144 | 1 | ||
ARM-COMP-SWING | 33001 | 33001-1205 | 1 | ||
SHAFT-SWING ARM | 33032 | 33032-1042 | 1 | ||
ADJUSTER-CHAIN,OUTSID | 33040 | 33040-1053 | 2 | ||
ADJUSTER-CHAIN,INSIDE | 33040A | 33040-1062 | 2 | ||
SLEEVE,SWING ARM | 42036 | 42036-1064 | 2 | ||
BOLT,8X57 | 92001 | 92001-1976 | 2 | ||
NUT,14MM | 92015 | 92015-1407 | 1 | ||
NUT-8MM | 92015A | 92015-1143 | 2 | ||
NUT-6MM | 92015B | 92015-1078 | 4 | ||
WASHER 6.5X20X1.6T | 92022 | 92022-125 | 2 | ||
BRG,NEEDLE,HMK2030 | 92046 | 92046-1031 | 2 | ||
BOLT,FLANGED,6X25 | 130 | 130G0625 | 2 | ||
BOLT,FLANGED,6X40 | 130A | 130G0640 | 2 | ||
SCREW CNTSNK HD 6X10 | 221 | 221B0610 | 4 | ||
NUT 8MM | 318 | 318G0800 | 2 |
CAP,SWING ARM | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CAP,CHAIN ADJUSTER | |
REF # | 11012A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,FR,UPP | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR,INSIDE | |
REF # | 12053B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN | |
REF # | 12053C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-COMP-SWING | |
REF # | 33001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-SWING ARM | |
REF # | 33032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN,OUTSID | |
REF # | 33040 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN,INSIDE | |
REF # | 33040A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SLEEVE,SWING ARM | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,8X57 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,14MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT-8MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-6MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER 6.5X20X1.6T | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRG,NEEDLE,HMK2030 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X25 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X40 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW CNTSNK HD 6X10 | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT 8MM | |
REF # | 318 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
