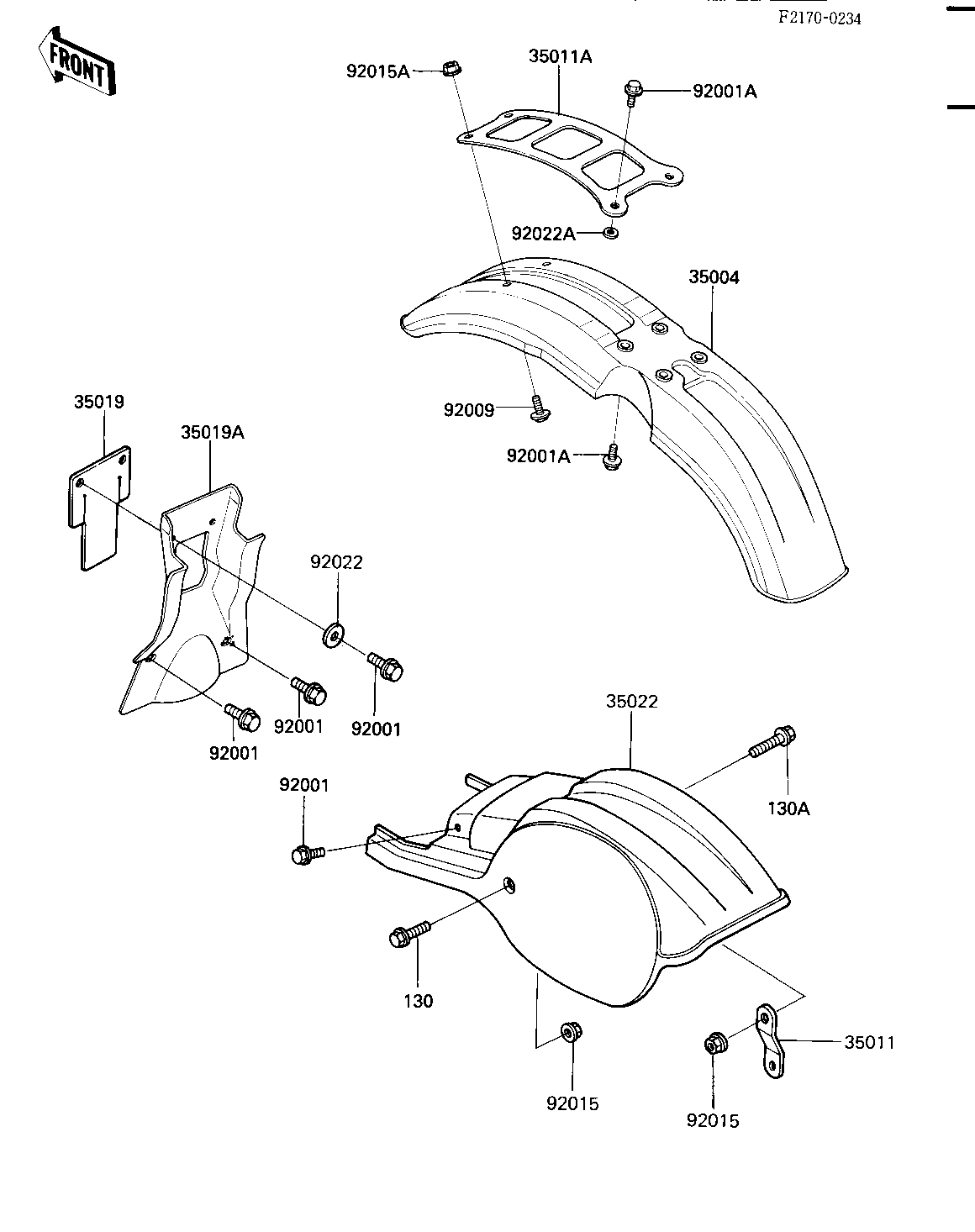

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,L.GREEN 35004 35004-1157-6W 1
STAY,MUFFLER 35011 35011-1154 1
STAY,FRONT FENDER 35011A 35011-1216 1
FLAP,FENDER,RR 35019 35019-1056 1
FLAP,FENDER,RR 35019A 35019-1111 1
FENDER-COMP-REAR,L.GR 35022 35022-1204-AE 1
BOLT,6X14 92001 92001-1926 6
BOLT,6X16 92001A 92001-1927 6
SCREW,6X14 92009 92009-1287 2
NUT-6MM 92015 92015-1078 2
NUT 92015A 92019-008 2
WASHER,6.5X16X1.0 92022 92022-1093 2
WASHER 6.5X20X1.6T 92022A 92022-125 2
BOLT,FLANGED,6X25 130 130G0625 1
BOLT,FLANGED,6X30 130A 130G0630 1
