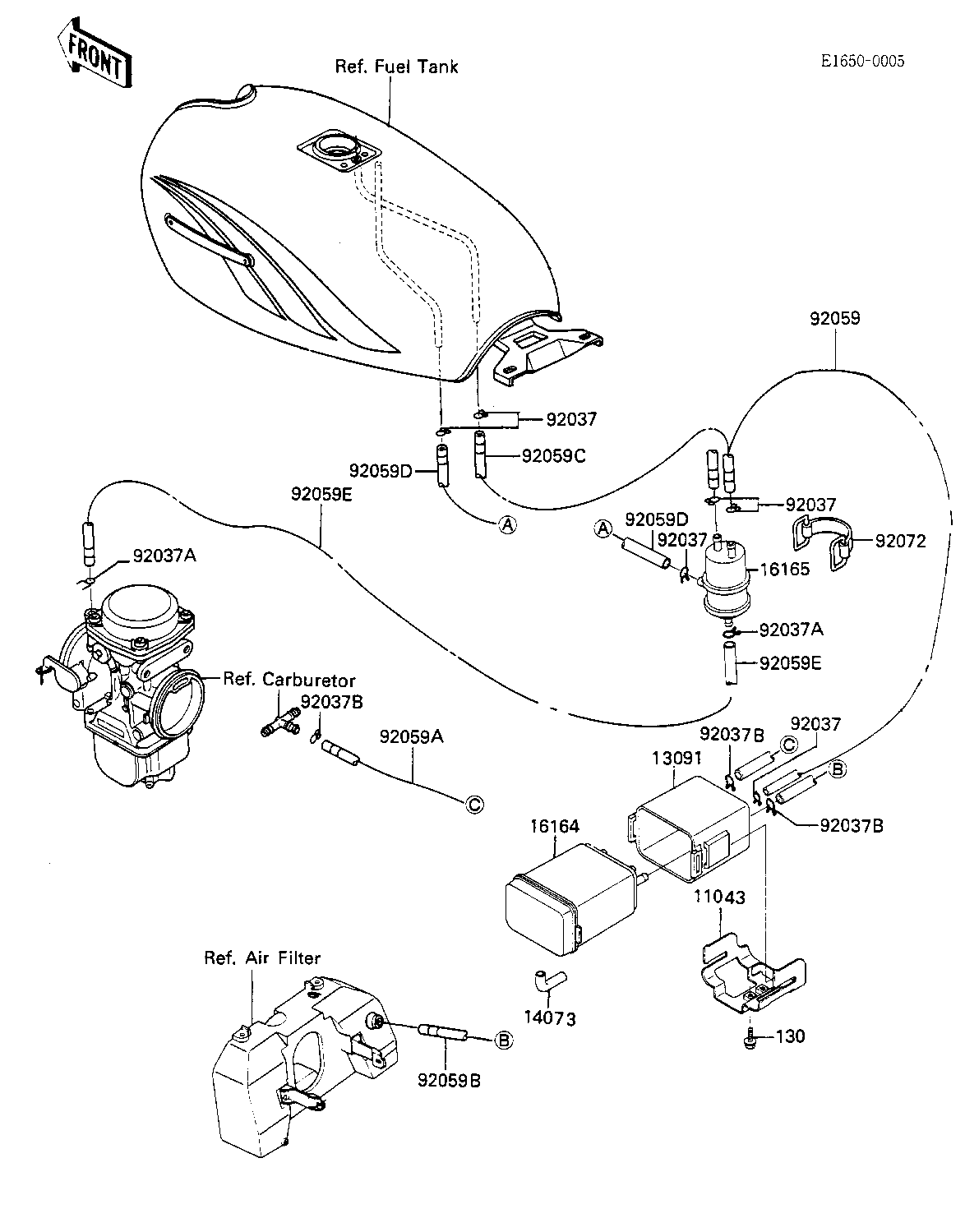

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CANISTER 11043 11043-1510 1 CA
HOLDER,CANISTER 13091 13091-1176 1 CA
DUCT,CANISTER 14073 14073-1178 1 CA
CANISTER 16164 16164-1001 1 CA
SEPARATOR 16165 16165-1001 1 CA
CLAMP FUEL PIPE 92037 92037-010 6 CA
CLAMP-PIPE 92037A 92037-072 2 CA
CLAMP-HOSE 92037B 92037-1104 3 CA
TUBE,5X8X260 92059 92059-1404 1 CA
TUBE,7X12X540 92059A 92059-1412 1 CA
TUBE,7X12X520 92059B 92059-1415 1 CA
TUBE,5X8X370 92059C 92059-1417 1 CA
TUBE,5X8X550 92059D 92059-1419 1 CA
TUBE,4X9X640,WHITE 92059E 92059-1422 1 CA
BAND,TOOL 92072 92072-066 1 CA
BOLT,FLANGED,6X10 130 130B0610 2 CA
