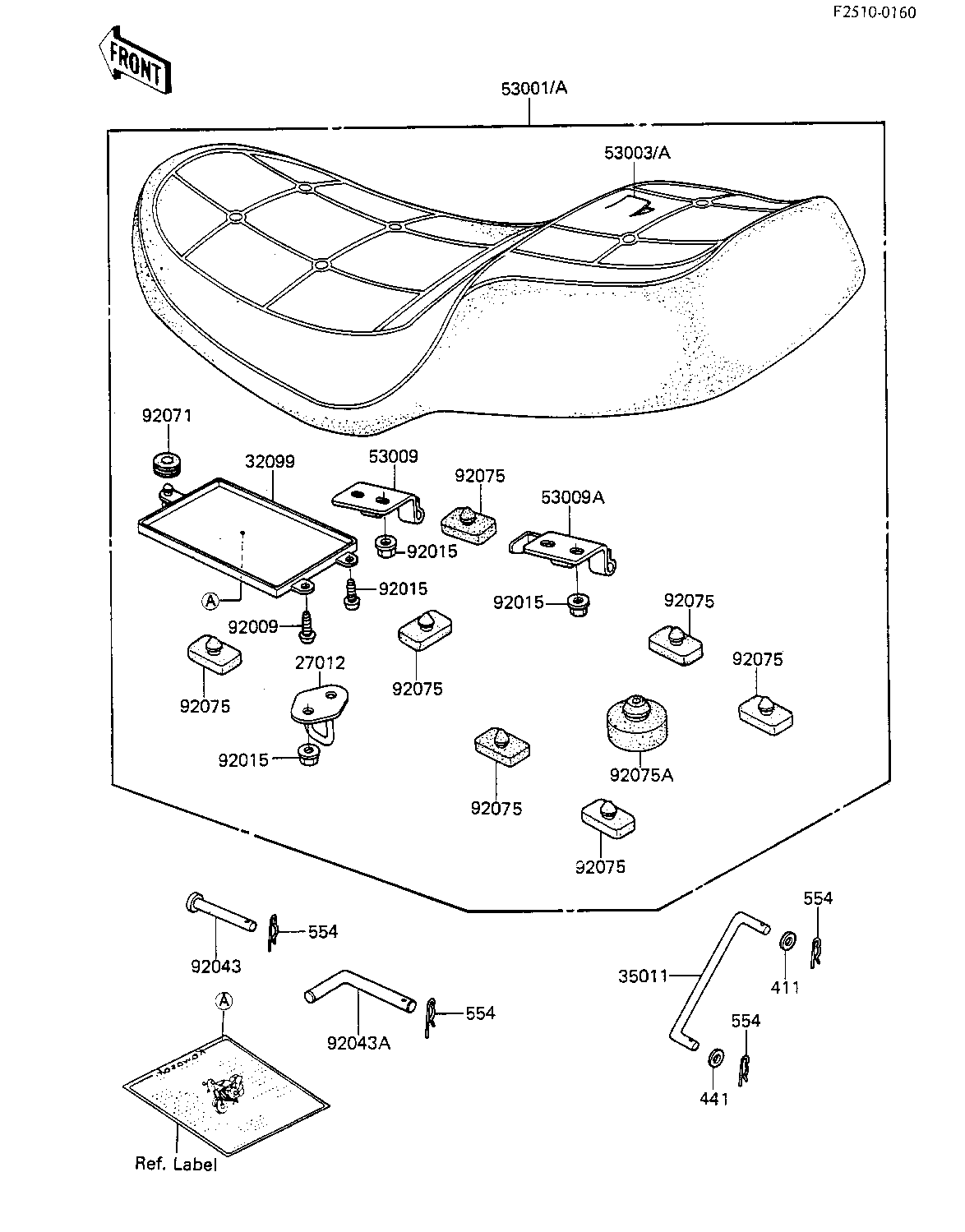

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOOK,SEAT 27012 27012-1028 1
CASE 32099 32099-011 1
STOPPER,SEAT 35011 53054-006 1
SEAT-ASSY 53001 53001-1375 1
LEATHER,SEAT 53003 53003-1032 1
HINGE B 53009 53009-018 1
HINGE,FRONT 53009A 53009-033 1
SCREW 92009 92009-1043 2
NUT-6MM 92015 92015-1078 6
PIN 92043 53011-002 1
PIN,DUAL SEAT PIVOT 92043A 53011-008 1
GROMMET 92071 92071-056 1
DAMPER,SEAT 92075 92075-1153 7
DAMPER 92075A 92075-1288 1
WASHER PLAIN 6MM 411 411B0600 2
PIN-SNAP,5MM 554 554A0500 4
