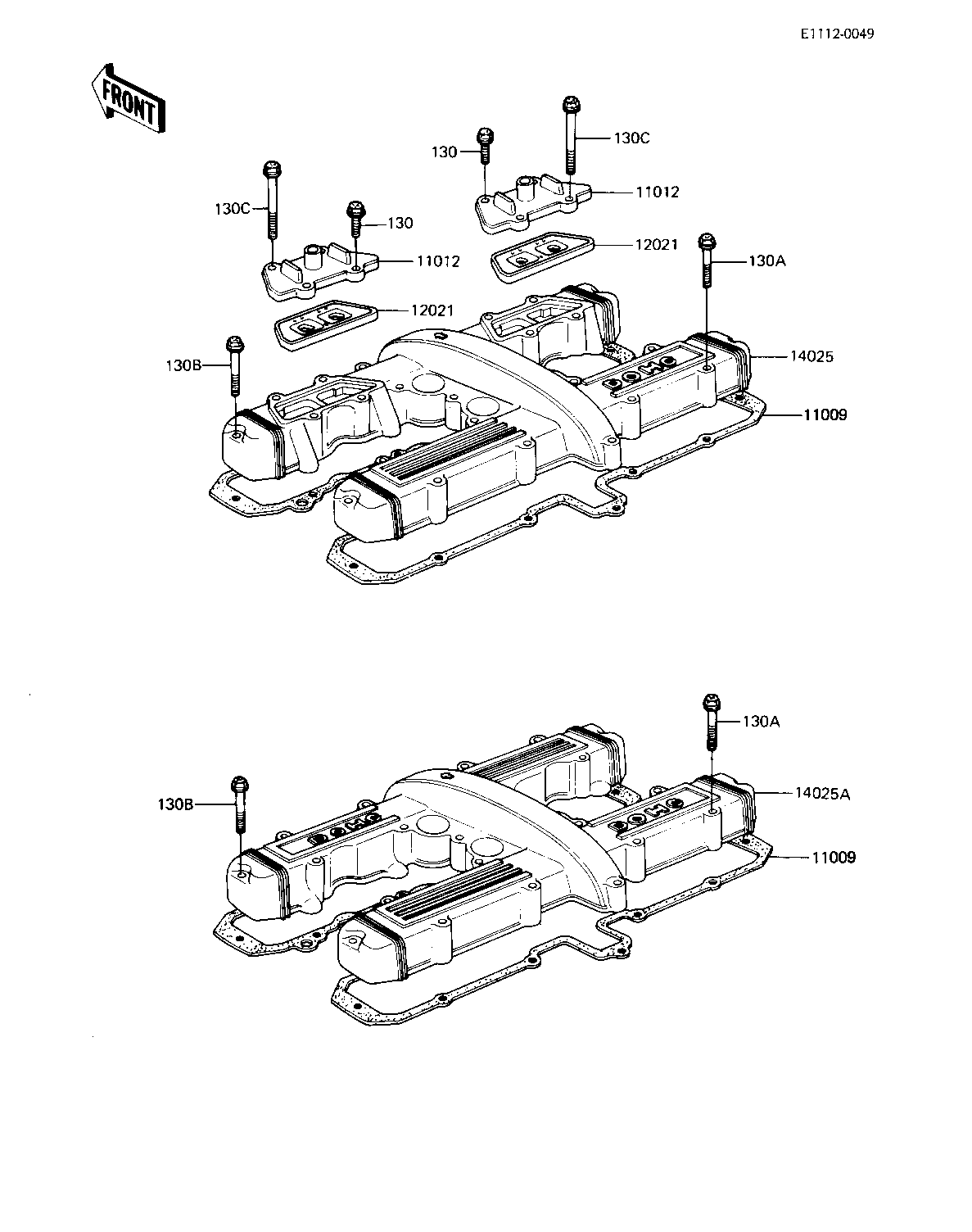

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER HEAD 11009 11009-1280 1
CAP,REED VALVE,SILVER 11012 11012-1193 2 US
VALVE ASSY REED 12021 12021-1003 2 US
COVER,CYLINDER HEAD,S 14025 14025-1569 1 US
COVER,CYLINDER HEAD,SILVE (Can 14025A 14025-1575 1 CN
BOLT,FLANGED,6X20 130 130G0620 4 US
BOLT,FLANGED,6X35 130A 130H0635 16 US
BOLT,FLANGED,6X35 130A 130H0635 20 US
BOLT,FLANGED,6X45 130B 130G0645 4
BOLT,FLANGED,6X65 130C 130G0665 4 US
