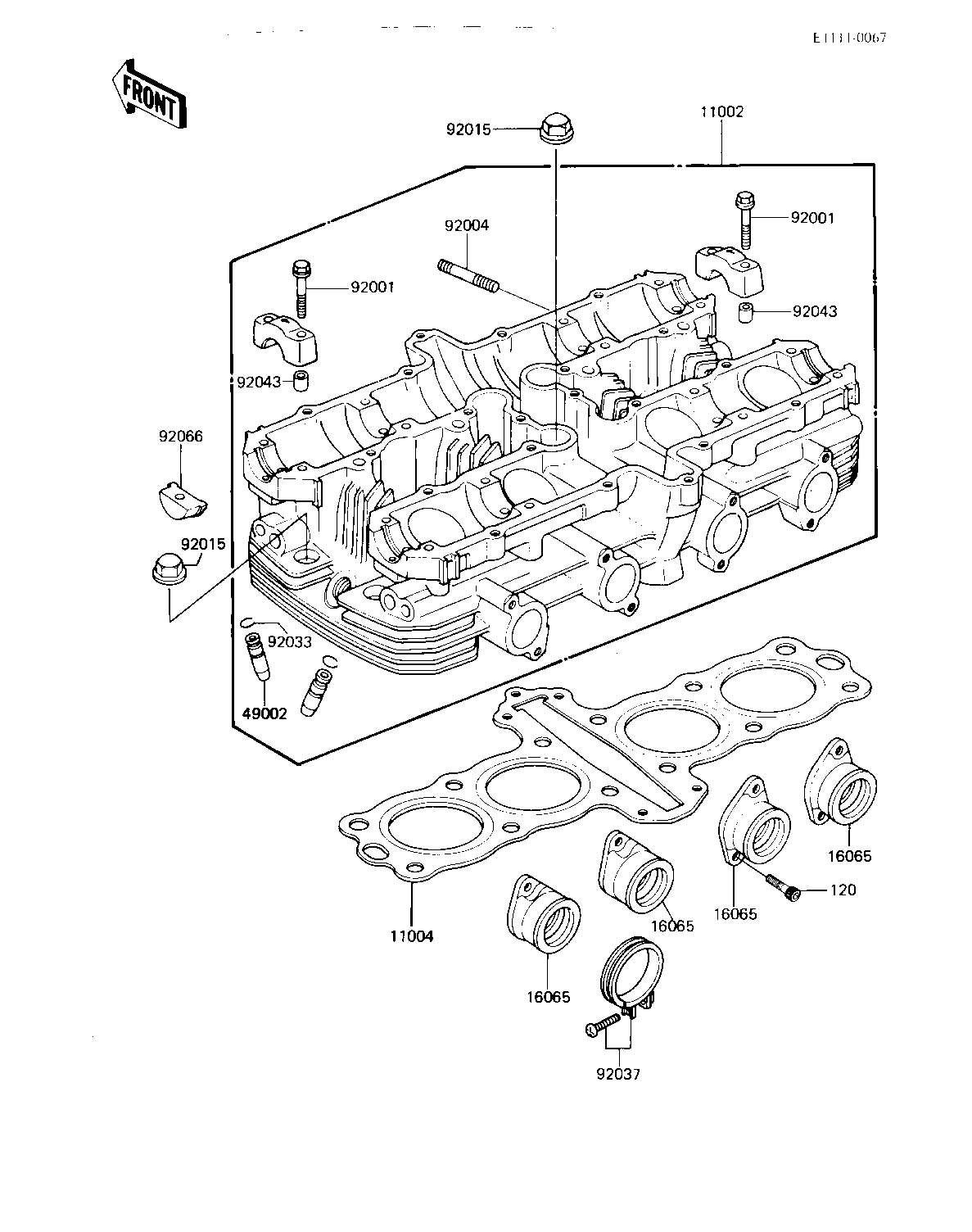

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-ASSY-CYLINDER,SI 11002 11002-1123 1
GASKET-HEAD 11004 11004-1212 1
HOLDER-CARBURETOR 16065 16065-1051 4
GUIDE,VALVE 49002 49002-1005 8
BOLT,FLANGED,6X38 92001 92001-1105 16
STUD,6X27 92004 92004-066 8
NUT,CAP,8MM 92015 92015-1151 12
CIRCLIP-VALVE 92033 92036-023 8
CLAMP 92037 92037-1326 4
PIN-DOWEL 92043 92042-007 16
PLUG,CAMSHAFT,11.35X1 92066 92066-1111 4
BOLT-SOCKET,6X16,BLAC 120 120S0616 8
