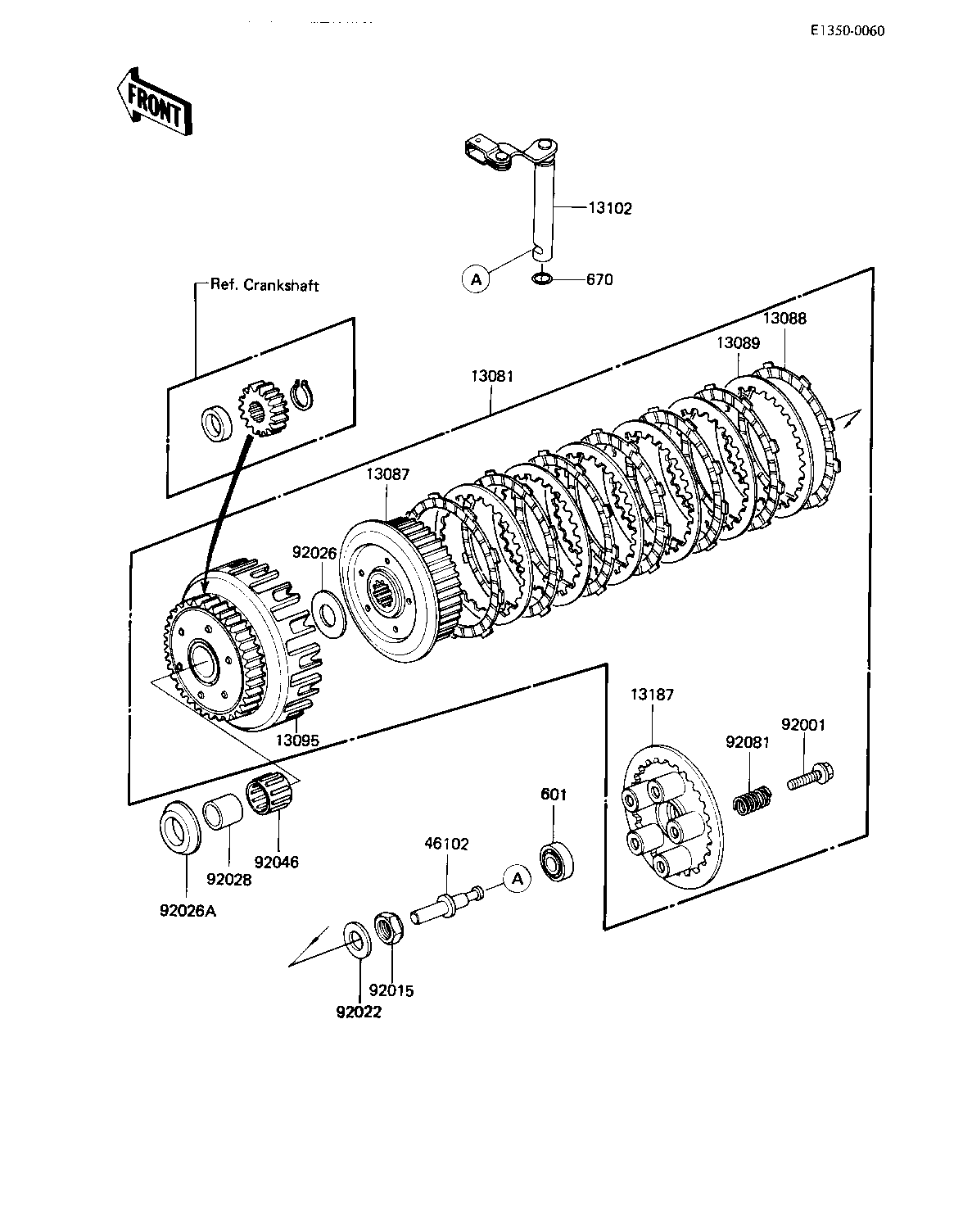

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLUTCH-ASSY 13081 13081-1086 1
HUB-CLUTCH 13087 13087-1052 1
PLATE,CLUTCH FRICTION 13088 13088-040 7
PLATE,CLUTCH STEEL 13089 13089-026 6
HOUSING,CLUTCH,65T 13095 13095-1030 1
RELEASE-COMP-CLUTCH 13102 13102-1021 1
PLATE-CLUTCH OPERATIN 13187 13187-1012 1
ROD 46102 46102-1030 1
BOLT,CLUTCH SPR FITT 92001 92001-1066 5
NUT,20MM 92015 92015-1555 1
WASHER,PLAIN,2.3X20.3 92022 92022-1116 1
WASHER TH 25.5X47X2.5 92026 92026-022 1
SPACER,THRUST,T=5.5MM 92026A 92026-116 1
BUSHING,CLUTCH 92028 92028-178 1
BEARING,KTV323723 92046 92046-028 1
SPRING,CLUTCH 92081 92081-139 5
BEARING-BALL 601 92045-1235 1
"O" RING,9MM 670 670B1509 1
