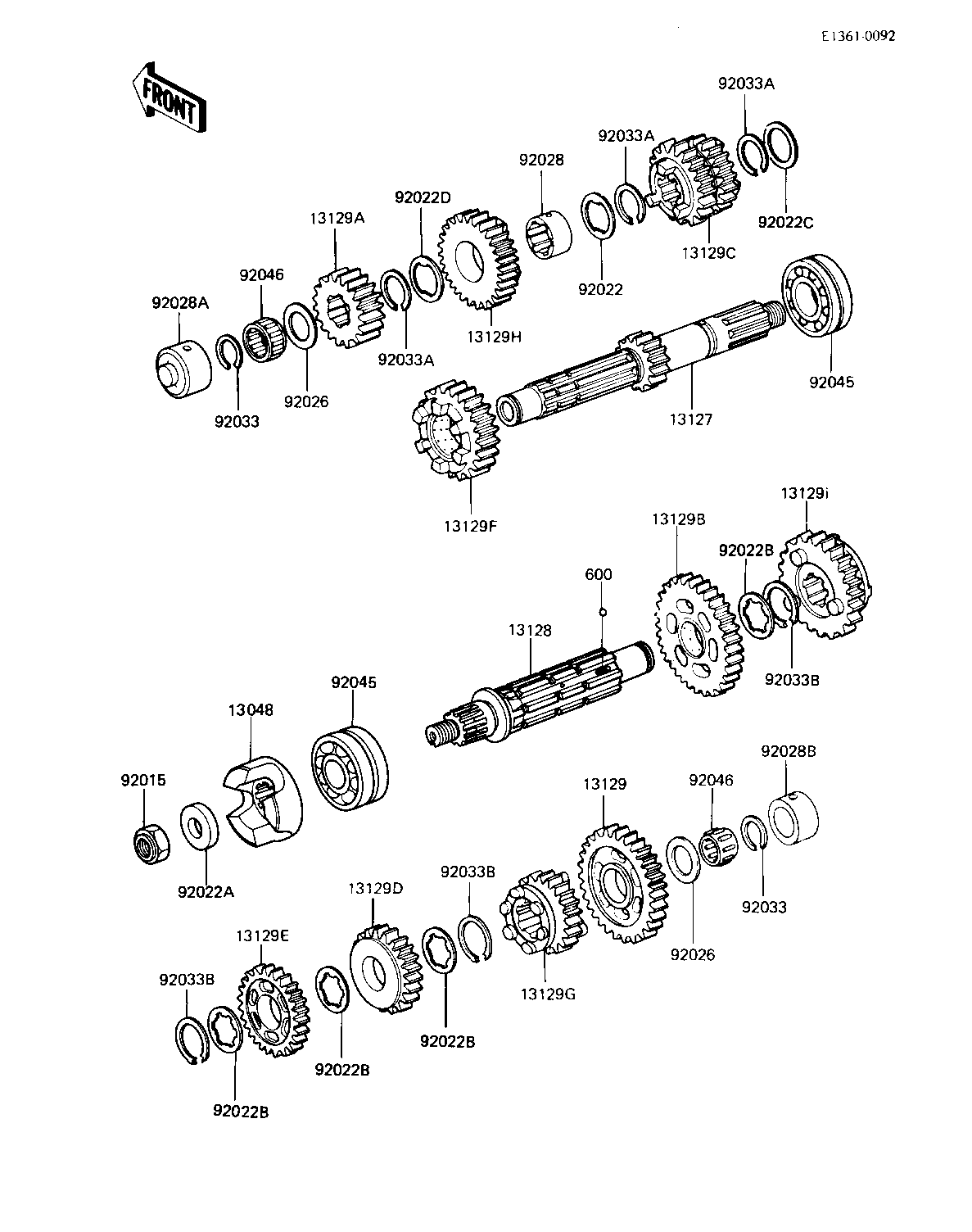

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAM-DAMPER,OUTPUT SHA | 13048 | 13048-1014 | 1 | ||
SHAFT,DRIVE,14T | 13127 | 13127-1008 | 1 | ||
SHAFT-TRANSMISSION OU | 13128 | 13128-1043 | 1 | ||
LOW GEAR,OUTPUT,36T | 13129 | 13129-1076 | 1 | ||
2ND GEAR,DRIVE SHAFT | 13129A | 13129-1077 | 1 | ||
2ND GEAR,OUTPUT,32T | 13129B | 13129-1078 | 1 | ||
GEAR INPUT 3RD&4TH,21 | 13129C | 13260-1195 | 1 | ||
3RD GEAR,OUTPUT,29T | 13129D | 13129-1080 | 1 | ||
4TH GEAR,OUTPUT,27T | 13129E | 13129-1081 | 1 | ||
5TH GEAR,DRIVE SHAFT | 13129F | 13129-1082 | 1 | ||
5TH GEAR,OUTPUT,25T | 13129G | 13129-1083 | 1 | ||
GEAR,INPUT TOP,27T | 13129H | 13129-1658 | 1 | ||
GEAR,OUTPUT TOP,23T | 13129I | 13129-1662 | 1 | ||
NUT,14M/M | 92015 | 92015-1067 | 1 | ||
WASHER,LOCK,30X1.OT | 92022 | 92022-1072 | 1 | ||
WASHER,PLAIN,5X14.1 | 92022A | 92022-1115 | 1 | ||
WASHER,LOCK,1.0T | 92022B | 92022-1139 | 4 | ||
WASHER PLAIN | 92022C | 92022-161 | 1 | ||
WASHER-LOCK | 92022D | 92024-033 | 1 | ||
SPACER,20.3X30X2T | 92026 | 92026-1022 | 2 | ||
BUSHING,INPUT TOP GEA | 92028 | 92028-1552 | 1 | ||
BUSHING,INPUT SHAFT | 92028A | 92028-1186 | 1 | ||
BUSHING,OUTPUT SHAFT | 92028B | 92028-180 | 1 | ||
CIRCLIP | 92033 | 92033-015 | 2 | ||
CIRCLIP | 92033A | 92033-026 | 3 | ||
SNAP RING,25.9X1.2T | 92033B | 92033-1037 | 3 | ||
BEARING,BALL | 92045 | 92045-035 | 2 | ||
BEARING,VS20/14A | 92046 | 92046-1030 | 2 | ||
BALL STEEL 5/32' | 600 | 600A0500 | 3 |
