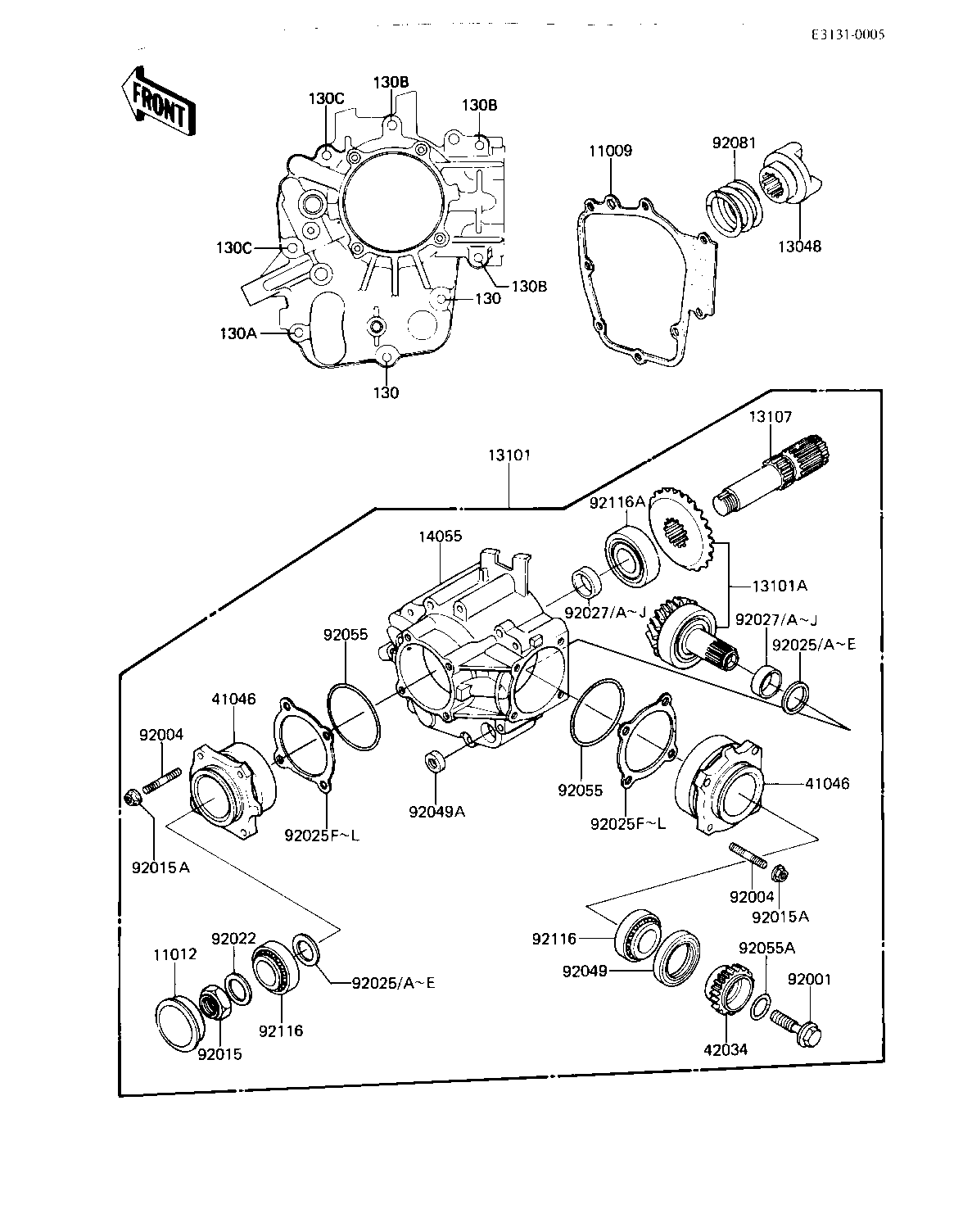

1983 LTD Shaft - FRONT BEVEL GEARS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GEAR CASE 11009 11060-1052 1
CAP 11012 11012-1071 1
CAM-DAMPER,BEVEL GEAR 13048 13048-1013 1
GEAR-ASSY,BEVEL,FR 13101 13101-1029 1
GEAR-ASSY,FRONT BEVEL 13101A 13101-5034 1
SHAFT,BEVEL GEAR,FR 13107 13107-1032 1
CASE-GEAR,BEVEL,FR 14055 14055-1010 1
COUPLING FR DRIVEN 41046 41046-1014 2
COUPLING,FR DRIVEN 42034 42034-1091 1
BOLT,12X42 92001 92001-1169 1
STUD 92004 92004-059 8
NUT,20M/M 92015 92015-1065 1
NUT-6MM 92015A 92015-1078 8
WASHER,PLAIN,2.3X20.3 92022 92022-1116 1
SHIM,1.70T 92025 92025-1072 AR
SHIM,1.72T 92025A 92025-1073 AR
SHIM,1.74T 92025B 92025-1074 AR
SHIM,1.76T 92025C 92025-1075 AR
SHIM,1.78T 92025D 92025-1076 AR
SHIM,1.80T 92025E 92025-1077 AR
SHIM,T=0.10 92025F 92025-1258 AR
SHIM,T=0.15 92025G 92025-1259 AR
SHIM,T=0.20 92025H 92025-1260 AR
SHIM,T=0.30 92025I 92025-1261 AR
SHIM,T=0.60 92025J 92025-1262 AR
SHIM,T=0,90 92025X 92025-1263 AR
SHIM,T=1.20 92025L 92025-1264 AR
COLLAR,25.2X29.8X10.2 92027 92027-1401 AR
COLLAR,25.2X29.8X10.3 92027A 92027-1402 AR
COLLAR,25.2X29.8X10.4 92027B 92027-1403 AR
COLLAR,25.2X29.8X10.5 92027C 92027-1404 AR
COLLAR,25.2X29.8X10.6 92027D 92027-1405 AR
COLLAR,25.2X29,8X10.7 92027E 92027-1406 AR
COLLAR,25X2X29,8X10.8 92027F 92027-1407 AR
COLLAR,25.2X29.8X10.9 92027G 92027-1408 AR
COLLAR,25.2X29.8X11.0 92027H 92027-1409 AR
COLLAR,25.2X29.8X11.1 92027I 92027-1410 AR
COLLAR,25.2X29.8X11.2 92027J 92027-1411 AR
OIL SEAL,TC35527 92049 92049-1038 1
OIL SEAL,TB13225.5 92049A 92051-005 1
"0" RING,65MM 92055 671B2565 2
"0" RING,I.D=18.64MM 92055A 92055-1044 1
SPRING,CAM DAMPER 92081 92081-1425 1
BEARING 92116 92116-1003 2
BRG,ROLLER,4T-30305 92116A 92116-1006 1
BOLT,FLANGED,6X25 130 130G0625 2
BOLT,FLANGED,6X40 130A 130G0640 1
BOLT-FLANGED,6X75 130B 130G0675 3
BOLT-FLANGED,6X90 130C 130G0690 2
