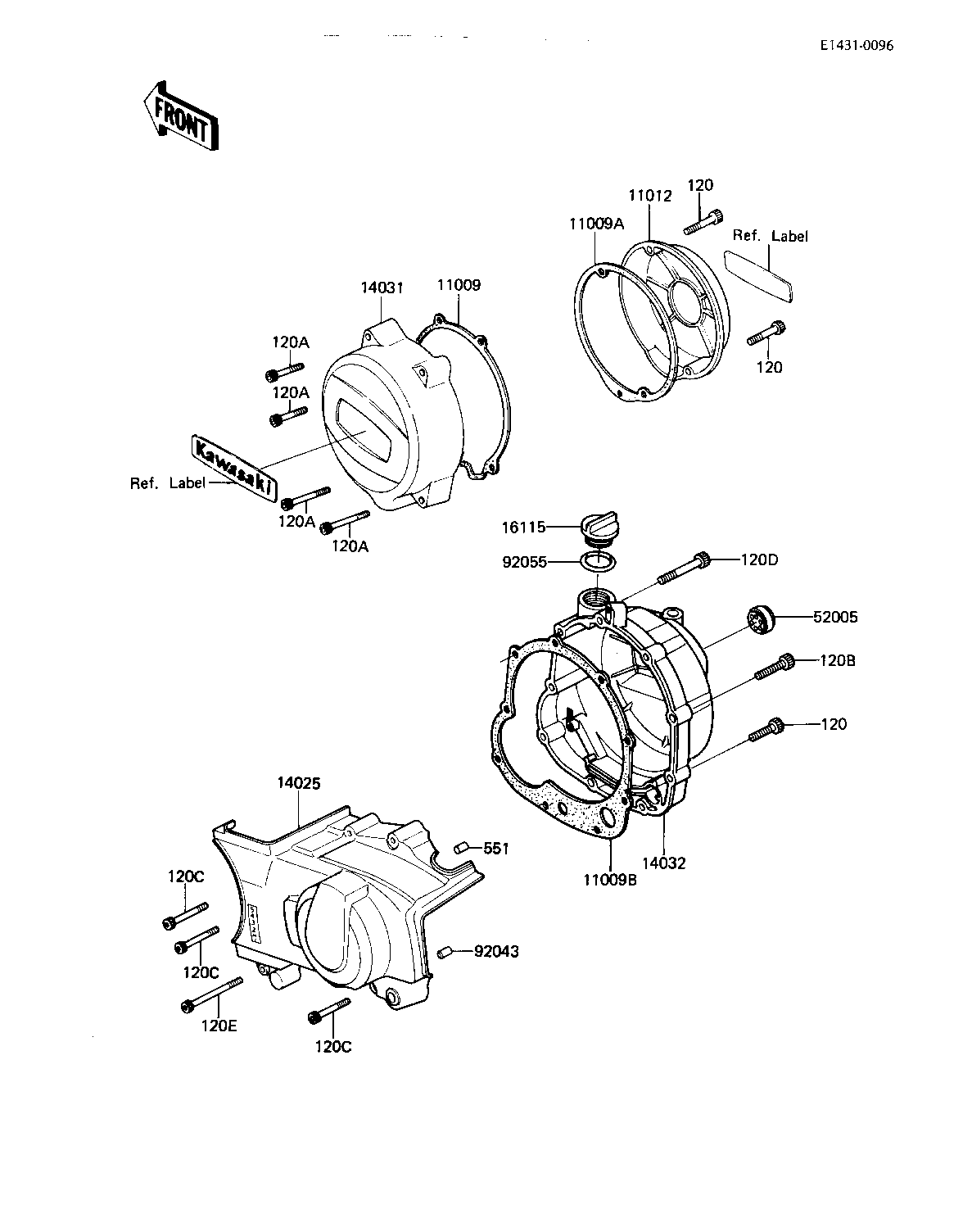

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GENERATOR COVE 11009 11060-1055 1
GASKET,PULSING COIL C 11009A 11060-1053 1
GASKET,CLUTCH COVER 11009B 11060-1054 1
CAP,PULSING COIL 11012 11012-1266 1
COVER,GEAR CASE,BUFF 14025 14025-1572 1
COVER-GENERATOR,BUFF 14031 14031-1107 1
COVER-CLUTCH,BUFF,FIN 14032 14032-1104 1
CAP-OIL FILLER 16115 16115-1009 1
GAUGE,OIL LEVEL 52005 52005-1009 1
PIN-DOWEL 92043 92042-007 1
"0" RING,31MM 92055 92055-049 1
BOLT,SOCKET,6X30 120 120P0630 6
BOLT,SOCKET,6X40 120A 120P0640 4
BOLT,SOCKET,6X45 120B 120P0645 3
BOLT,SOCKET,6X50 120C 120P0650 3
BOLT-SOCKET,6X60 120D 120P0660 2
BOLT-SOCKET,6X80 120E 120P0680 1
PIN DOWEL 8X14 551 551A0814 1
