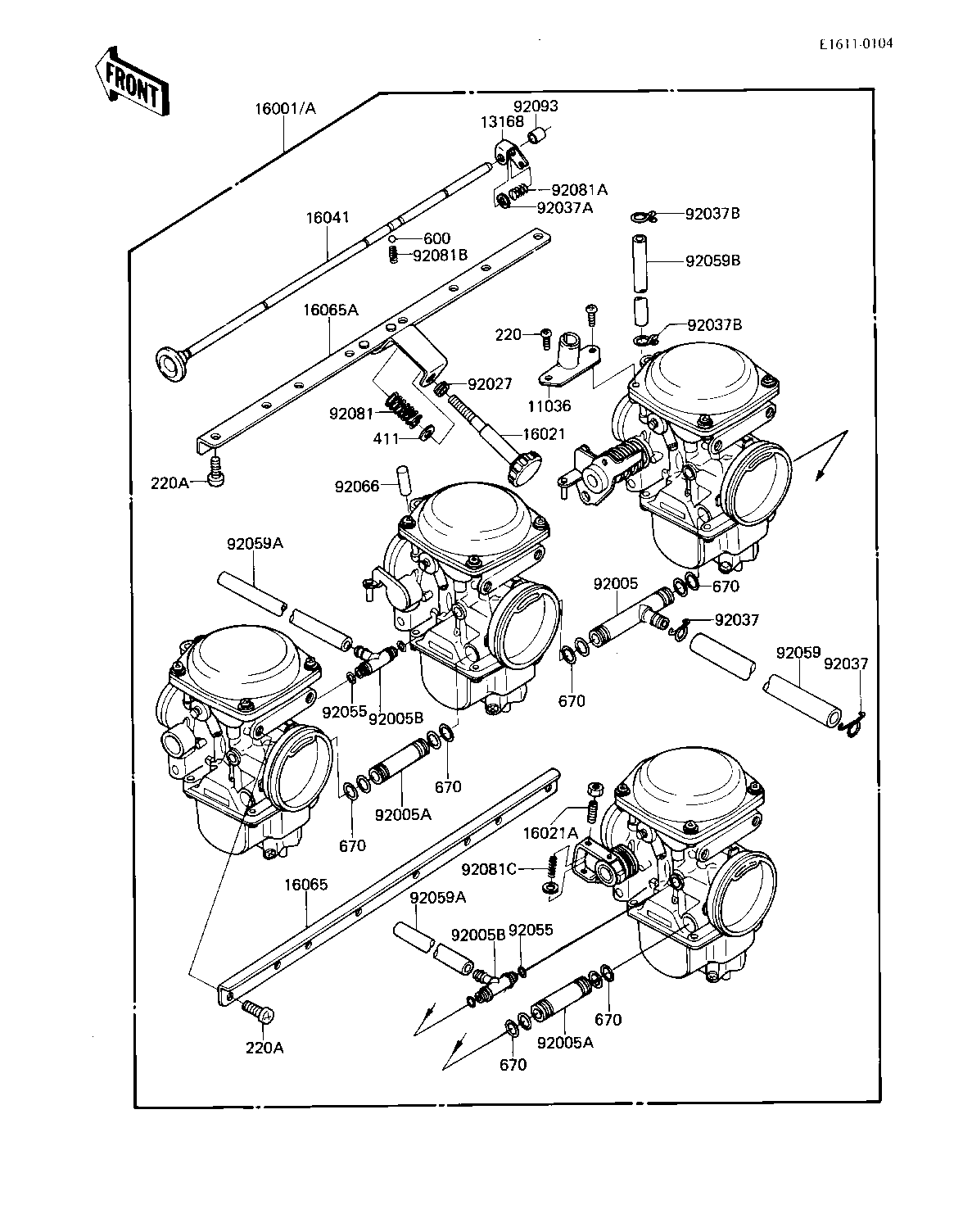

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET-A,THROTTLE CA | 11036 | 11036-1760 | 1 | ||
LEVER | 13168 | 13168-1110 | 4 | ||
CARBURETOR,AP | 16001 | 16001-1791 | 1 | US | |
CARBURETOR (Canada) | 16001A | 16001-1792 | 1 | CN | |
SCREW-THROTTLE STOP | 16021 | 16021-1038 | 1 | ||
SCREW-THROTTLE STOP | 16021A | 16021-1043 | 3 | ||
SHAFT-CARBURETOR,STAR | 16041 | 16041-1027 | 1 | ||
HOLDER-CARBURETOR | 16065 | 16065-1057 | 1 | ||
HOLDER-CARBURETOR | 16065A | 16065-1058 | 1 | ||
"T"JOINT,FUEL | 92005 | 92005-1020 | 1 | ||
JOINT,FUEL | 92005A | 92005-1021 | 2 | ||
FITTING | 92005B | 92005-1058 | 2 | ||
COLLAR,STOP SCREW | 92027 | 92027-1432 | 1 | ||
CLAMP,FUEL HOSE | 92037 | 92037-1158 | 2 | ||
CLAMP | 92037A | 92037-1302 | 4 | ||
CLAMP,TUBE | 92037B | 92037-1378 | 2 | ||
RING-O | 92055 | 92055-1134 | 4 | ||
TUBE | 92059 | 92059-1214 | 1 | ||
TUBE | 92059A | 92059-1215 | 2 | ||
TUBE,5X9X220 | 92059B | 92059-1260 | 1 | ||
RUBBER PLUG | 92066 | 92068-006 | 1 | US | |
RUBBER PLUG | 92066 | 92068-006 | 3 | US | |
SPRING,ADJUST SCREW | 92081 | 92081-1193 | 1 | ||
SPRING | 92081A | 92081-1439 | 4 | ||
SPRING,SHAFT STOP | 92081B | 92081-1440 | 1 | ||
SPRING | 92081C | 92081-1442 | 3 | ||
SEAL | 92093 | 92093-1074 | 4 | ||
SCREW PAN HEAD 4X10 | 220 | 220B0410 | 2 | ||
SCREW PAN HEAD 6X14 | 220A | 220B0614 | 16 | ||
WASHER PLAIN 6MM | 411 | 411B0600 | 1 | ||
BALL,STEEL,1/8" | 600 | 600A0400 | 1 | ||
"O" RING,7MM | 670 | 670B1507 | 12 |
