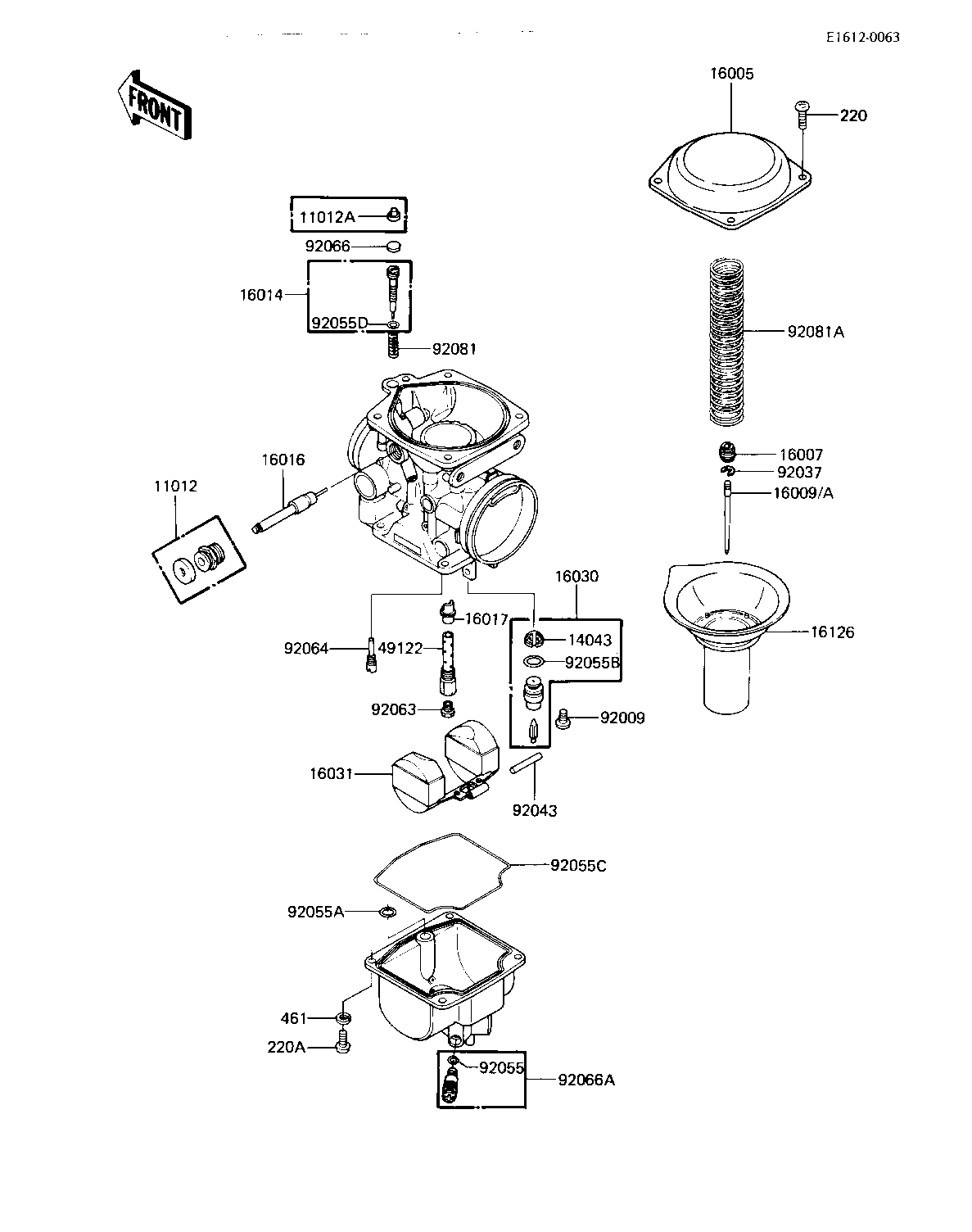

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-1243 | 4 | ||
CAP (Canada) | 11012A | 11012-1265 | 4 | CN | |
FILTER,FLOAT VALVE | 14043 | 14043-1011 | 4 | ||
TOP-CHAMBER,CR PLATED | 16005 | 16005-1021 | 4 | ||
SEAT-SPRING | 16007 | 16007-1051 | 4 | ||
NEEDLE-JET,#4A02 | 16009 | 16009-1129 | 4 | US | |
NEEDLE-JET,#4A00 (Canada) | 16009A | 16009-1130 | 4 | CN | |
SCREW-PILOT AIR | 16014 | 16014-1032 | 4 | ||
PLUNGER | 16016 | 16016-1023 | 4 | ||
JET-NEEDLE | 16017 | 16017-1116 | 4 | ||
VALVE-FLOAT | 16030 | 16030-1024 | 4 | ||
FLOAT | 16031 | 16031-1018 | 4 | ||
VALVE | 16126 | 16126-1047 | 4 | ||
PIPE-BLEEDER | 49122 | 49122-1012 | 4 | ||
SCREW,FLOAT VALVE | 92009 | 92009-1168 | 4 | ||
CLAMP | 92037 | 92037-1303 | 4 | ||
PIN | 92043 | 92043-1112 | 4 | ||
"O" RING,OVERFLOW | 92055 | 92055-1071 | 4 | ||
RING-0 | 92055A | 92055-1126 | 4 | ||
RING-O | 92055B | 92055-1127 | 4 | ||
RING-0,FLOAT CHAMBER | 92055C | 92055-1128 | 4 | ||
RING-O | 92055D | 92055-1134 | 4 | ||
JET-MAIN,#120 | 92063 | 92063-1134 | 4 | ||
JET-PILOT | 92064 | 92064-1055 | 4 | ||
PLUG,PILOT SCREW | 92066 | 92066-1051 | 4 | US | |
SCREW,DRAIN | 92066A | 92066-1065 | 4 | ||
SPRING | 92081 | 92081-1441 | 4 | ||
SPRING | 92081A | 92081-1461 | 4 | ||
SCREW PAN HEAD 4X8 | 220 | 220B0408 | 14 | ||
SCREW-PAN-CRSOSS,4X12 | 220A | 220B0412 | 16 | ||
WASHER SPRING 4MM | 461 | 461F0400 | 16 |
