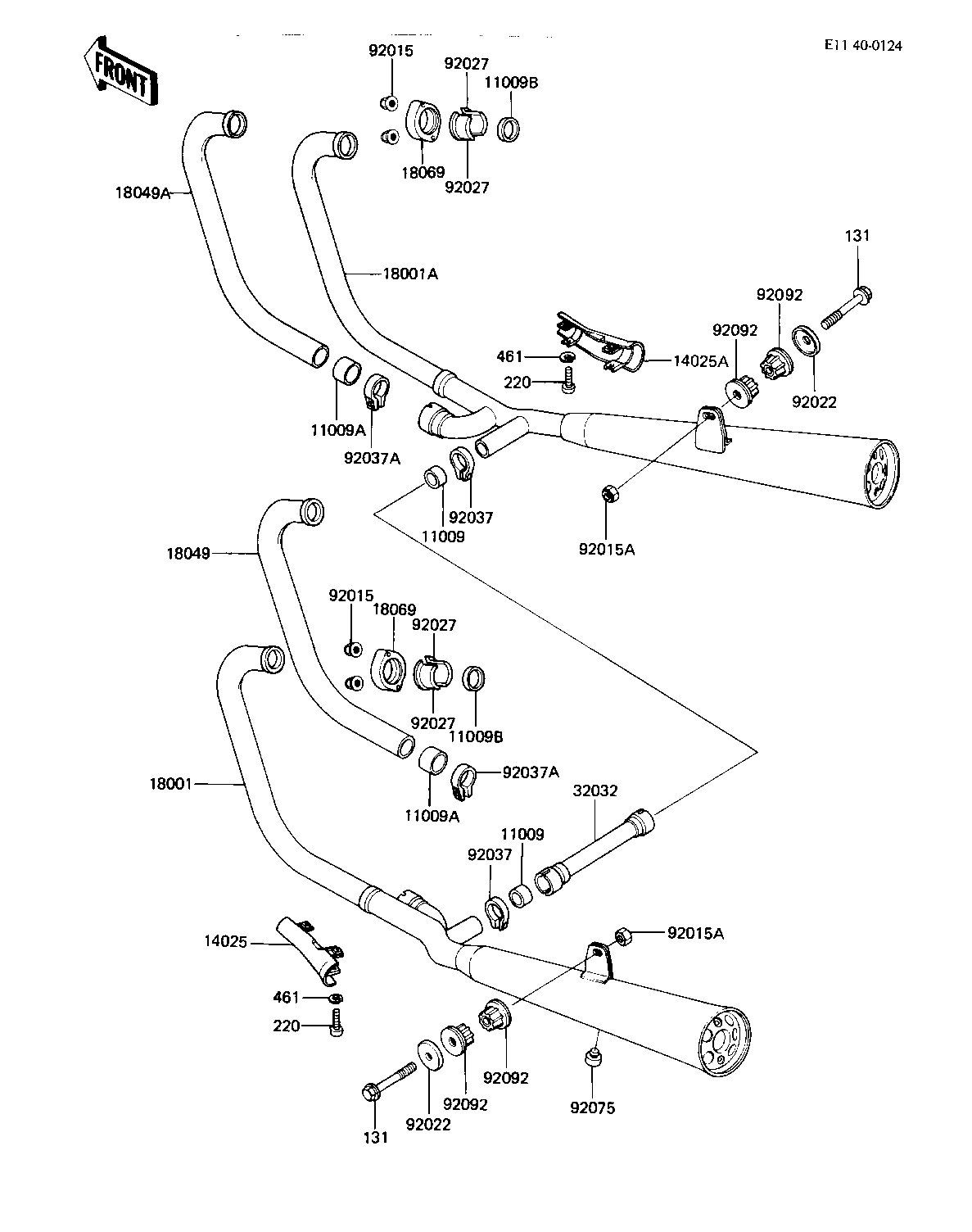

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,MUFFLER CONNEC | 11009 | 11060-1051 | 2 | ||
GASKET,EXHAUST PIPE C | 11009A | 11009-1667 | 2 | ||
GASKET,EXHAUST PIPE H | 11009B | 11009-1866 | 4 | ||
COVER,MUFFLER,LH | 14025 | 14025-1531 | 1 | ||
COVER,MUFFLER,RH | 14025A | 14025-1532 | 1 | ||
MUFFLER,LH,CR-PLATED | 18001 | 18001-1359 | 1 | ||
MUFFLER,RH,CR-PLATED | 18001A | 18001-1360 | 1 | ||
PIPE-EXHAUST,#2 | 18049 | 18049-1154 | 1 | ||
PIPE-EXHAUST,#3 | 18049A | 18049-1155 | 1 | ||
HOLDER-EXHAUST PIPE | 18069 | 18069-1025 | 4 | ||
PIPE,MUFFLER CONNECT1 | 32032 | 32032-1671 | 1 | ||
NUT,CAP,6M/M | 92015 | 92015-1153 | 8 | ||
NUT,LOCK,10MM | 92015A | 92019-021 | 2 | ||
WASHER | 92022 | 92022-1355 | 2 | ||
COLLAR,EXHAUST PIPE | 92027 | 92027-264 | 8 | ||
CLAMP,MUFFLER,37MM | 92037 | 92037-1243 | 2 | ||
CLAMP,42MM | 92037A | 92037-1349 | 2 | ||
DAMPER,STAND STOPPER | 92075 | 92075-1045 | 1 | ||
BUSHING-RUBBER | 92092 | 92092-1013 | 4 | ||
BOLT-FLANGED,10X55 | 131 | 131G1055 | 2 | ||
SCREW PAN HEAD 6X40 | 220 | 220B0640 | 4 | ||
WASHER SPRING 6MM | 461 | 461F0600 | 4 |
GASKET,MUFFLER CONNEC | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,EXHAUST PIPE C | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,EXHAUST PIPE H | |
REF # | 11009B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COVER,MUFFLER,LH | |
REF # | 14025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,MUFFLER,RH | |
REF # | 14025A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MUFFLER,LH,CR-PLATED | |
REF # | 18001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MUFFLER,RH,CR-PLATED | |
REF # | 18001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-EXHAUST,#2 | |
REF # | 18049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-EXHAUST,#3 | |
REF # | 18049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-EXHAUST PIPE | |
REF # | 18069 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIPE,MUFFLER CONNECT1 | |
REF # | 32032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,CAP,6M/M | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
NUT,LOCK,10MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,EXHAUST PIPE | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
CLAMP,MUFFLER,37MM | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,42MM | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,STAND STOPPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING-RUBBER | |
REF # | 92092 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,10X55 | |
REF # | 131 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X40 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
