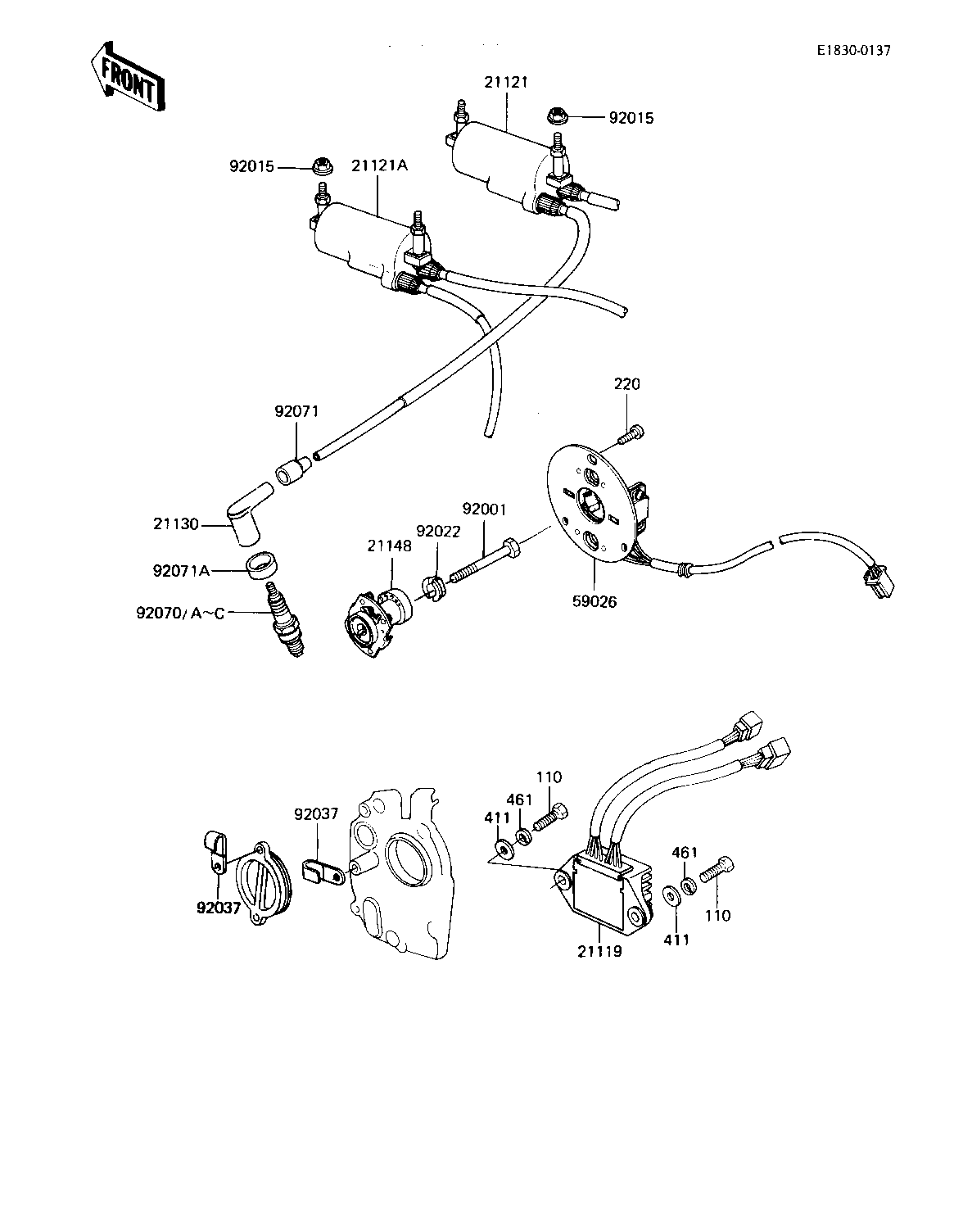

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
IGNITER 21119 21119-1040 1
COIL,IGNITION #1/4 21121 21121-1035 1
COIL,IGNITION,#2/3 21121A 21121-1036 1
CAP,SPARK PLUG"LD05F" 21130 21130-1003 4
ADVANCER, 21148 21148-1016 1
COIL,PULSING 59026 59026-1009 1
BOLT-8X63 92001 92001-1397 1
NUT-6MM 92015 92015-1078 4
WASHER,SPARK ADVANCER 92022 92022-244 1
CLAMP,WIRING HARNESS 92037 21126-008 2
SPARK PLUG D8EA 92070A D8EA 4 US
SPARK PLUG DR8ES (Canada) 92070B 92070-1019 4 CN
GROMMET,SPARK PLG CAP 92071 21132-005 4
GROMMET,SPARK PLUG 92071A 92071-1015 4
BOLT-UPSET 110 112G0618 2
SCREW PAN HEAD 5X12 220 220B0512 3
WASHER PLAIN 6MM 411 411B0600 2
WASHER SPRING 6MM 461 461F0600 2
