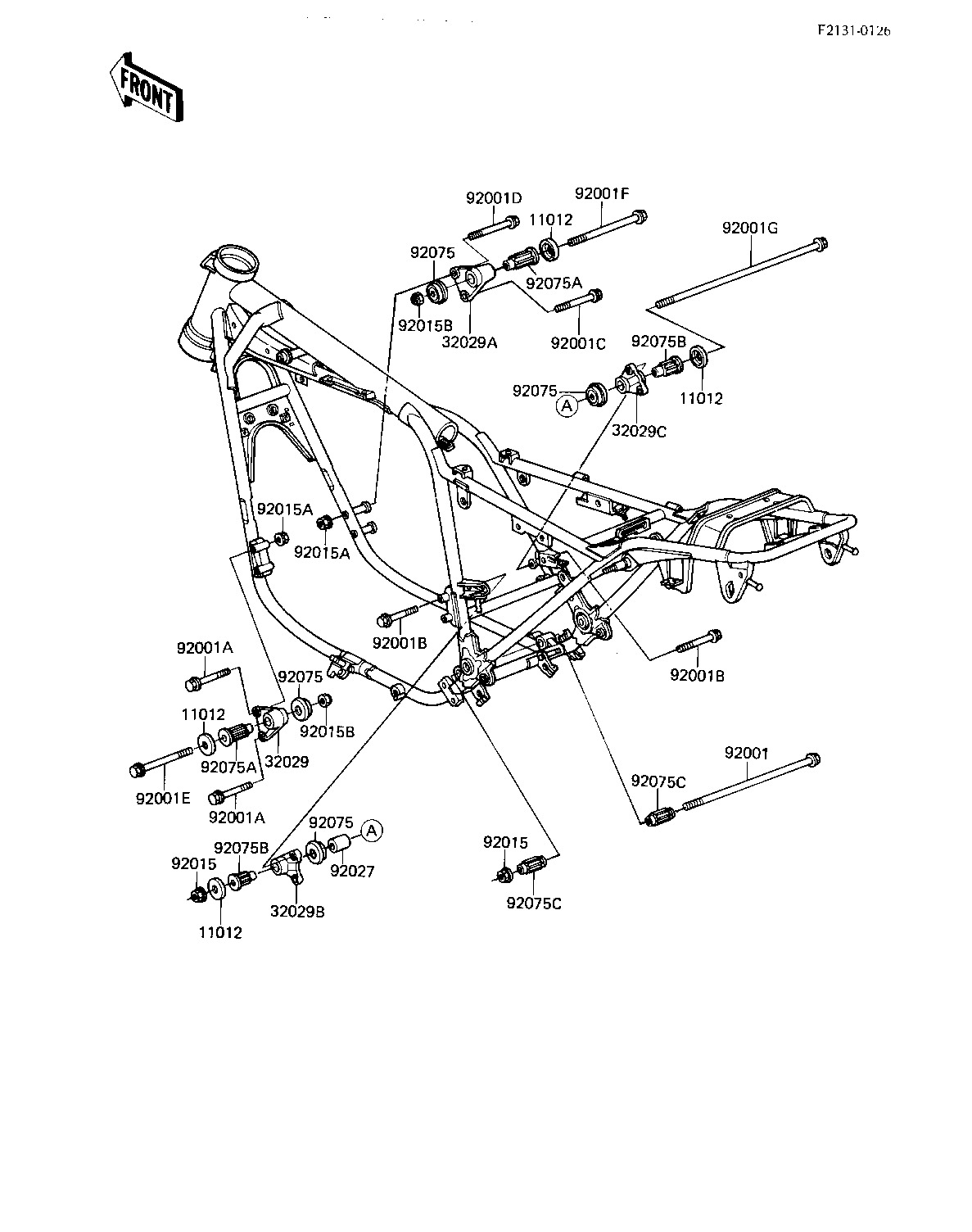

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,ENGINE BRACKET | 11012 | 11012-1228 | 4 | ||
| BRACKET-ENGINE,FR,LH | 32029 | 32029-1192 | 1 | ||
| BRACKET-ENGINE,FR,RH | 32029A | 32029-1193 | 1 | ||
| BRACKET-ENGINE,RR,LH | 32029B | 32029-1195 | 1 | ||
| BRACKET-ENGINE,RR,RH | 32029C | 32029-1332 | 1 | ||
| BOLT,FLANGED,10X255,B | 92001 | 92001-1566 | 1 | ||
| BOLT,FLANGED,8X60 | 92001A | 92001-1615 | 2 | ||
| BOLT,FLANGED,8X65,BLA | 92001B | 92001-1616 | 4 | ||
| BOLT,FLANGED,8X75,BLA | 92001C | 92001-1642 | 1 | ||
| BOLT,FLANGED,8X85 | 92001D | 92001-1718 | 1 | ||
| BOLT,FLANGED,10X110 | 92001E | 92001-1719 | 1 | ||
| BOLT,FLANGED,10X125 | 92001F | 92001-1720 | 1 | ||
| BOLT,10X290,BLACK | 92001G | 92001-1749 | 1 | ||
| NUT,FLANGED,10MM,BLAC | 92015 | 92015-1180 | 2 | ||
| NUT,FLANGED,8MM | 92015A | 92015-1408 | 4 | ||
| NUT,LOCK,10MM,BLACK | 92015B | 92015-1188 | 2 | ||
| COLLAR,ENG MOUNT UPPE | 92027 | 92027-228 | 1 | ||
| DAMPER | 92075 | 92075-1274 | 4 | ||
| DAMPER,ENGINE BRACKET | 92075A | 92075-1377 | 2 | ||
| DAMPER,11X36X50X7 | 92075B | 92075-1378 | 2 | ||
| DAMPER,11X29X42X7 | 92075C | 92075-1379 | 2 |
