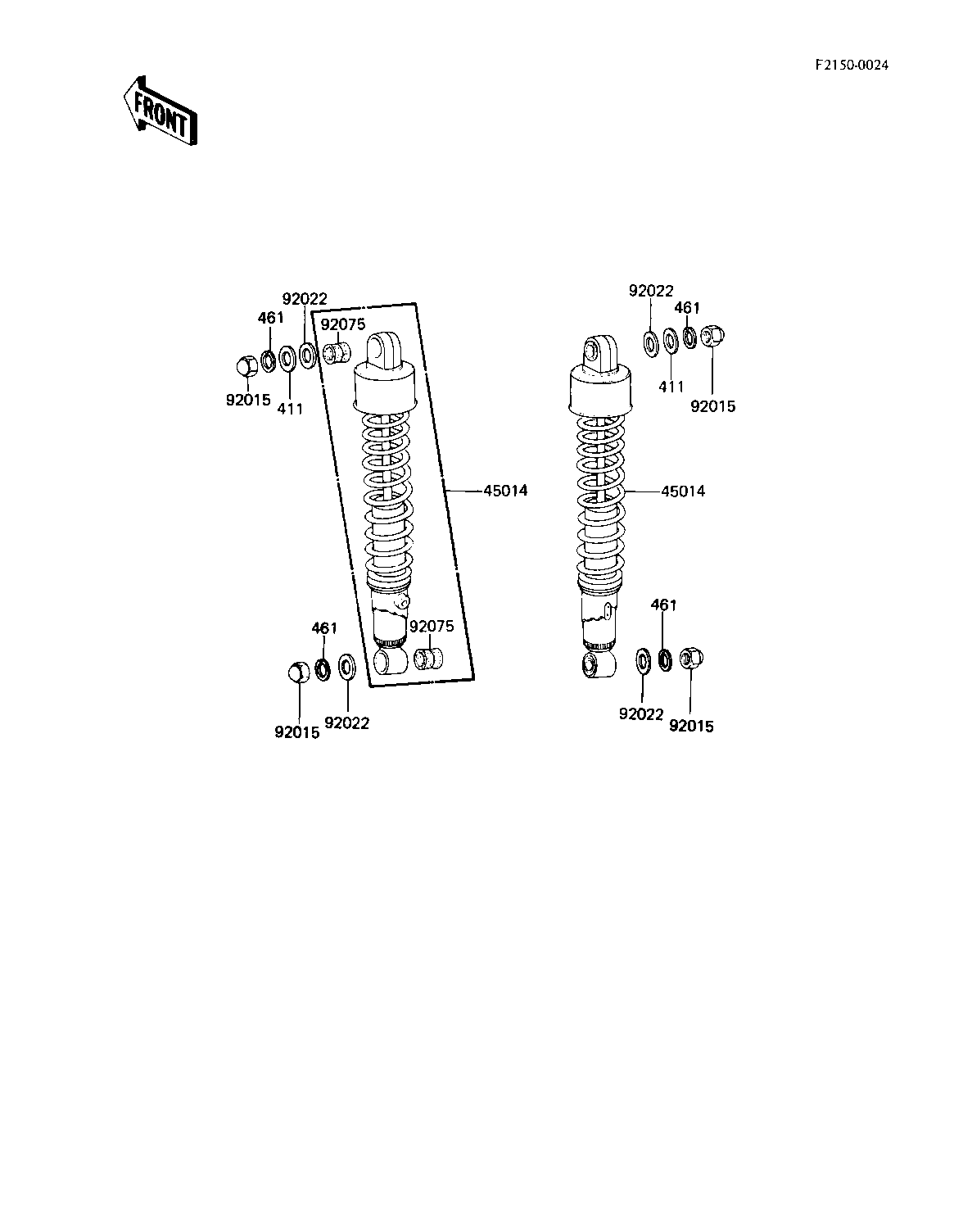

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHOCKABSORBER,RR 45014 45014-1206 2
NUT SHOCK ABSORBER 92015 92020-003 4
WASHER-PL-10.5X26X2.3 92022 92022-044 4
BUSHING,SHOCK ABSORBE 92075 92075-1141 4
WASHER PLAIN 10MM 411 411B1000 2
WASHER SPRING 10MM 461 461F1000 4
