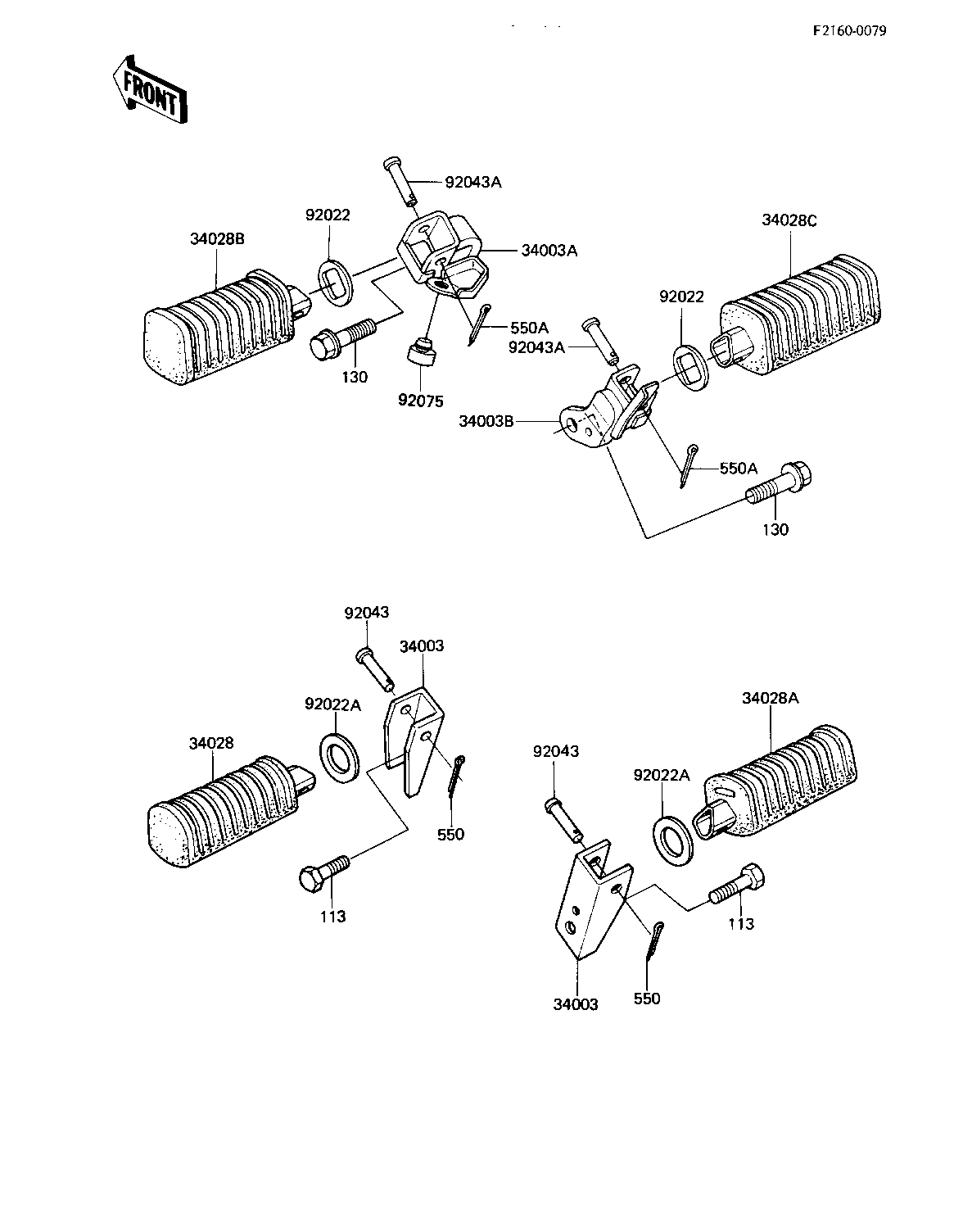

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,REAR FOOTREST 34003 34003-1025 2
HOLDER-STEP,FR,LH 34003A 34003-1149 1
HOLDER-STEP,FR,RH 34003B 34003-1150 1
STEP,RR,LH,BLACK 34028 34028-1041 1
STEP,RR,RH,BLACK 34028A 34028-1042 1
STEP,FR,LH 34028B 34028-1136 1
STEP,FR,RH 34028C 34028-1137 1
WASHER,STEP FITTING 92022 92022-1314 2
WASHER,22.5X30X2.6,BL 92022A 92022-1320 2
PIN 92043 92043-1464 2
PIN,FOOTREST BAR FIT 92043A 92043-115 2
DAMPER,STAND STOPPER 92075 92075-1045 1
BOLT-UPSET 113 112C1030 2
BOLT-FLANGED,12X20 130 130J1220 2
PIN,COTTER,2.0X12 550 550D2012 2
PIN,COTTER,2.5X15 550A 550D2515 2
