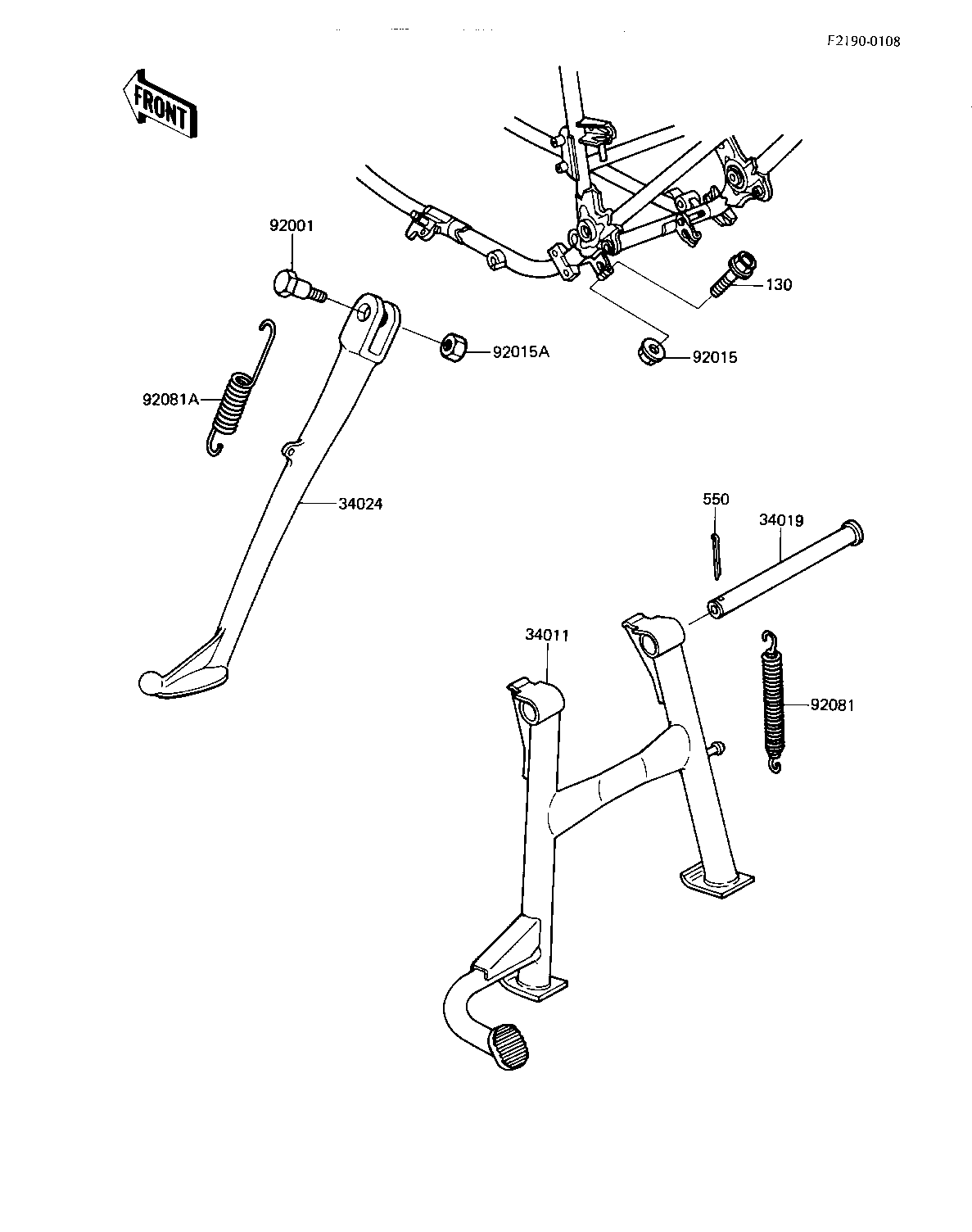

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-CENTER 34011 34011-1072 1
SHAFT-STAND 34019 34019-1003 1
STAND-SIDE 34024 34024-1108 1
BOLT,8X160,BLACK 92001 92001-1543 1
NUT-8MM 92015 92015-1022 2
NUT,LOCK,10MM,BLACK 92015A 92015-1188 1
SPRING,MAIN STAND,R.H 92081 92081-1145 1
SPRING,SIDE STAND 92081A 92081-1727 1
BOLT 130 130G0840 2
PIN COTTER 3.0X30 550 550D3030 1
